FPT F32 MNS - Delivery Specifications; EGR Solenoid Valve (for F5 CE5454 Engines)

SECTION 3 - INDUSTRIAL APPLICATION
47
F32 SERIES
Print P2D32F005 E Base - April 2009
pe (mbar) 500 50 50 50 50
U
6/4
/U
2/4
(%)* 0 3.4 20 40 52
Delivery (kg/h)  1.0 5.3 ± 2 33.3 ± 4 62.7 ± 5 72.4 ± 6
EGR Solenoid valve (for F5CE5454 engines)

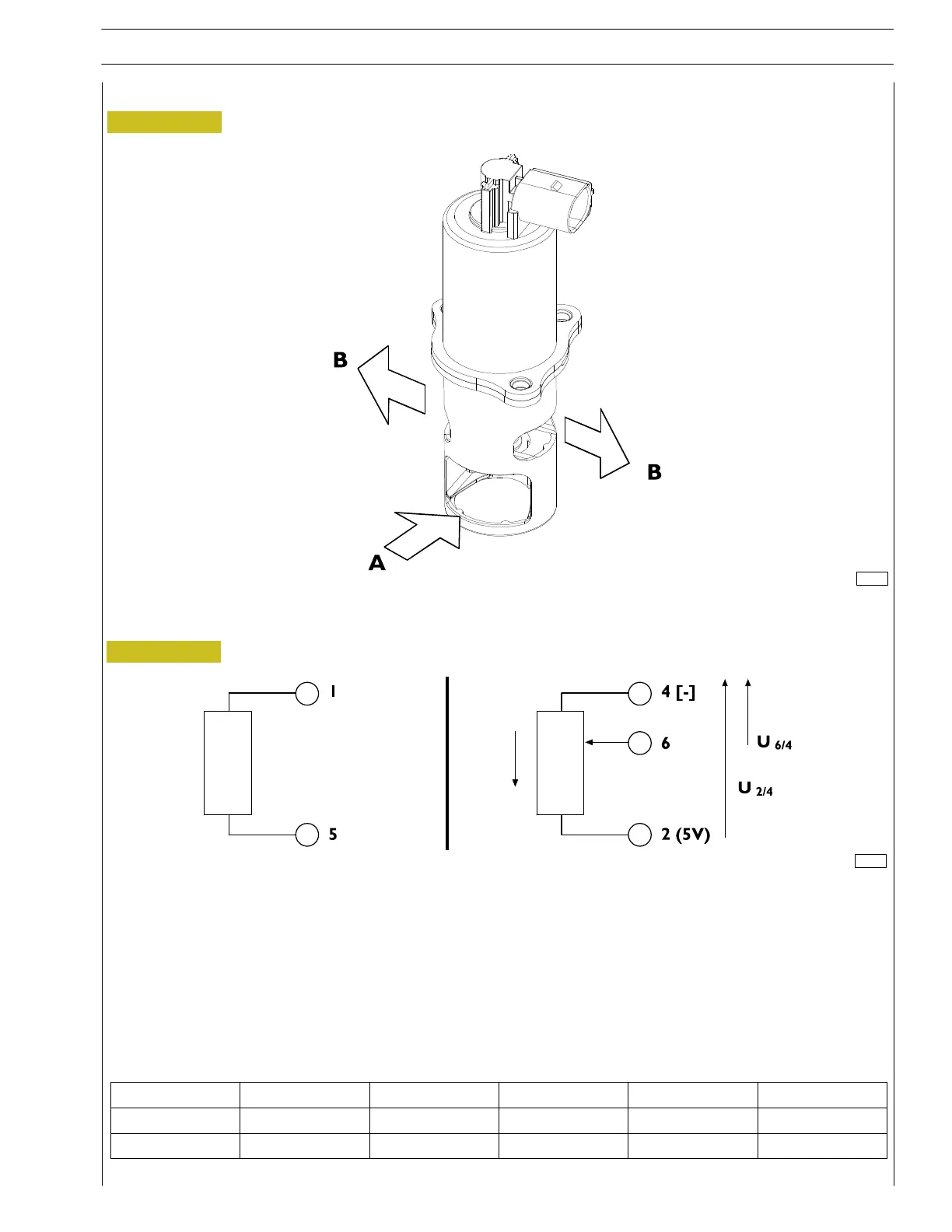

Figure 99
119458
119459
* Pin-out bobbin * Pin-out potentiometer
Resistance 8 ± 0.5
Frequency 125 ± 25Hz
Voltage 14.5 ± 1.5V
Self inductance 82 ± 15mH
Total resistance 4 k ± 40%
Maximum voltage 15V
Supply current 10 mA
Circuit configuration Voltage divider
Delivery specifications
Figure 100
A. Exhaust gas input - B. Exhaust gas output
