70194
119562

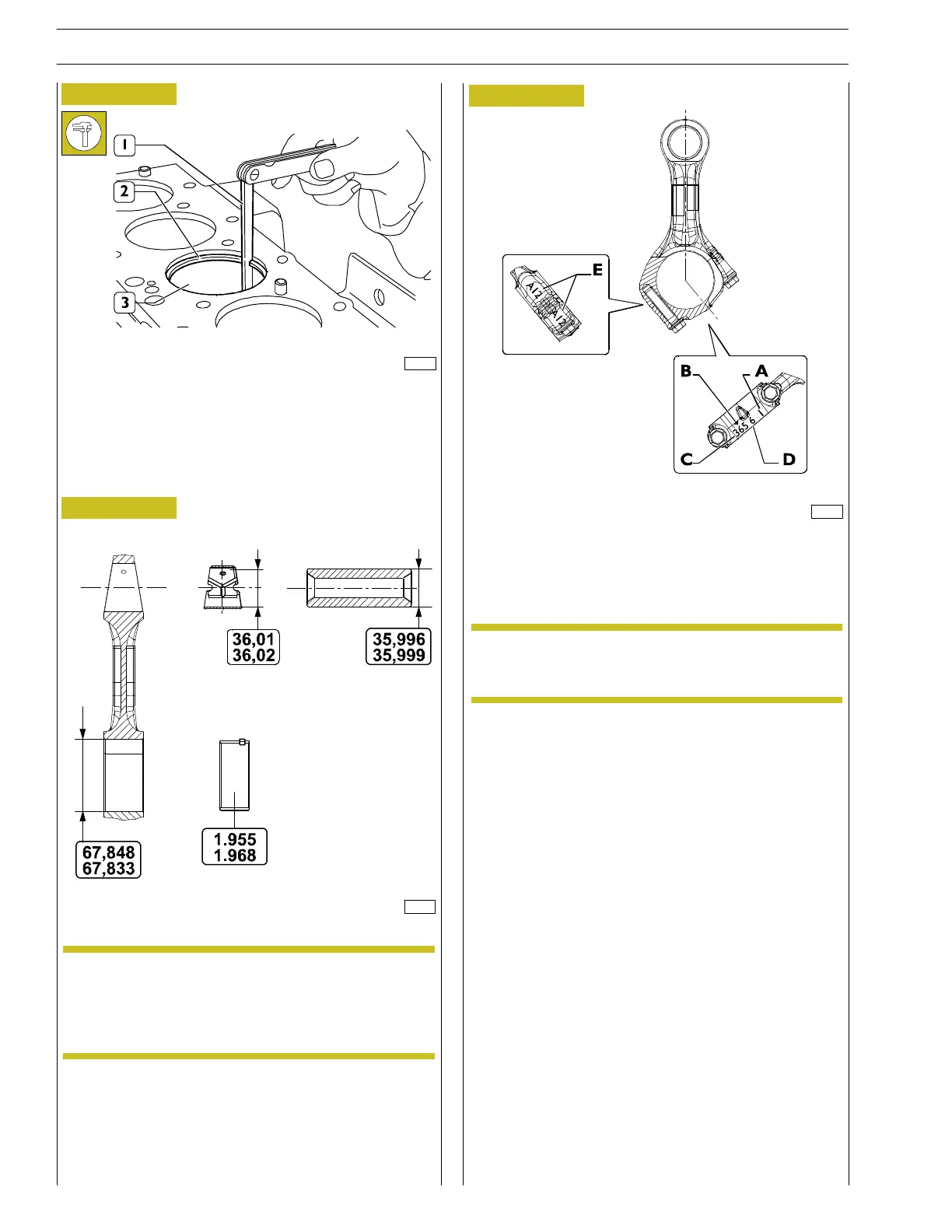

Figure 41
Measurement of slack between the snap ring ends (2) fitted
into the cy linder barrel (3) throughou t gauge calliper (1).
The connecting rod- connecting rod cap surfaces
are knurled to ensure better coupling. Therefore,
it is recommended not to remove the knurling.
Connecting rods
Figure 42
NOTE
119563
Figure 43
A. Class of weight - B. Part number - C. Date of
production (DD/MM) - D. Date of production (y ear) -
E. Marking for connecting rod-cap coupling.
In phase of assembly, ensure that all the connecting
rods belong to the same manufacturer and class of
weight.
NOTE
22
SECTION 4 - MECHANICAL OVERHAUL
F32 SERIES
Base - April 2009 Pri nt P2D32F005 E
