FPT F32 MNS - Bush Replacement; Tappet - Camshaft Assembly

70174
119553
70176
119549
119554

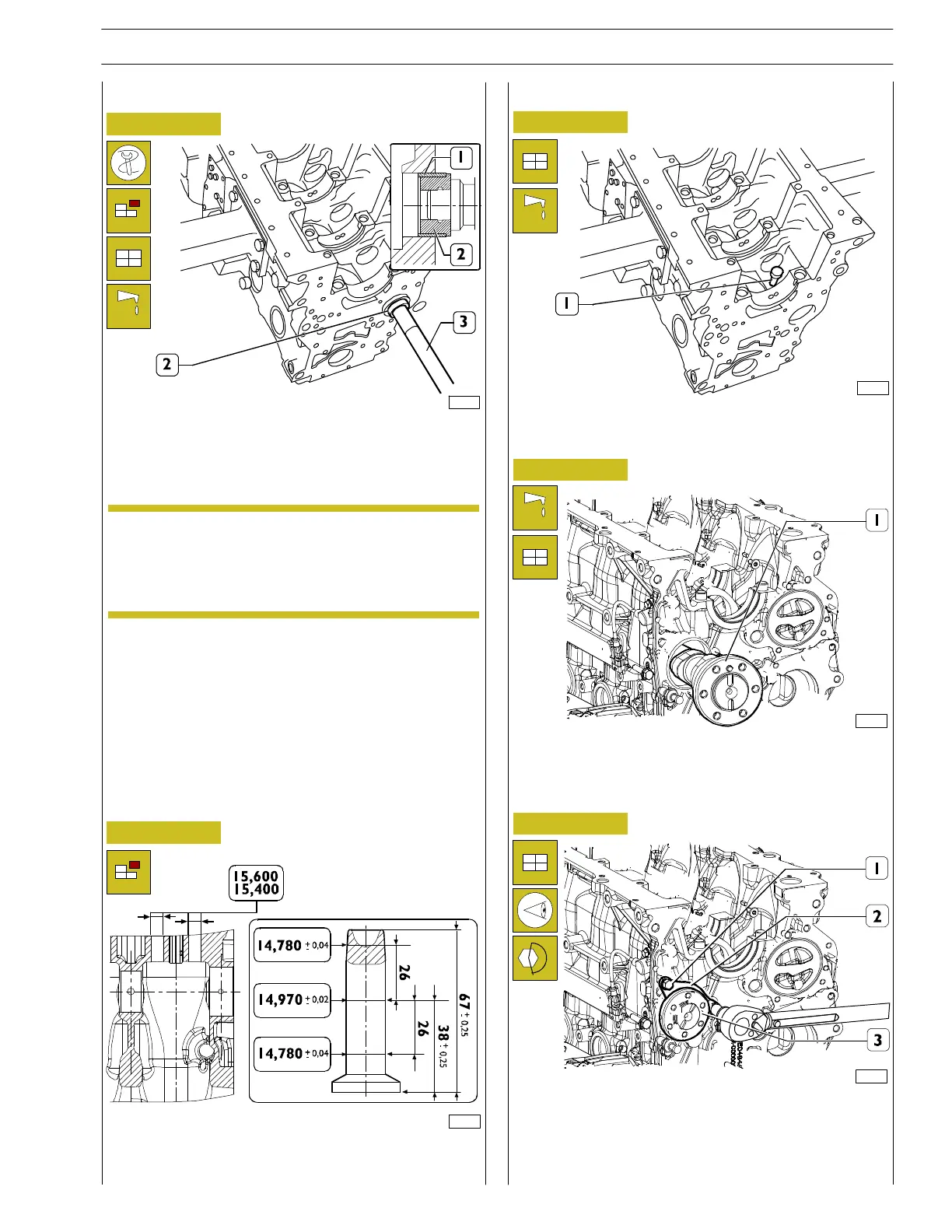

Figure 16
Use the beater 99360362 (2) and han dgrip 99370006 (3) to
disassemble and replace the bush (1).
TAPPET AND RELEVANT SEAT ON CRANKCASE
MAIN DATA
Lubricate the tappets (1) and fit them into the relevant seats
on within the crankcase.
Lubricate the camshaft supporting bush and assemble the
camshaft (1) paying attention, during the aforesaid operation,
not to damage the bush or the shaft’s seats
Position the camshaft (3) holding plate (1) with the slot
towards th e upper side of t he crankcase and the marking
towards the operator; tighten the fastening screws (2) to the
prescribed torque setting.
Bush replacement Tappet - camshaft assembly
In phase of assembly, t he bush (1) must be o riented
making the lubrication ports coincide with those on
the crankcase.
Tappets
Figure 17
Figure 18
Figure 19
Figure 20
NOTE
SECTION 4 - MECHANICAL OVERHAUL
15
