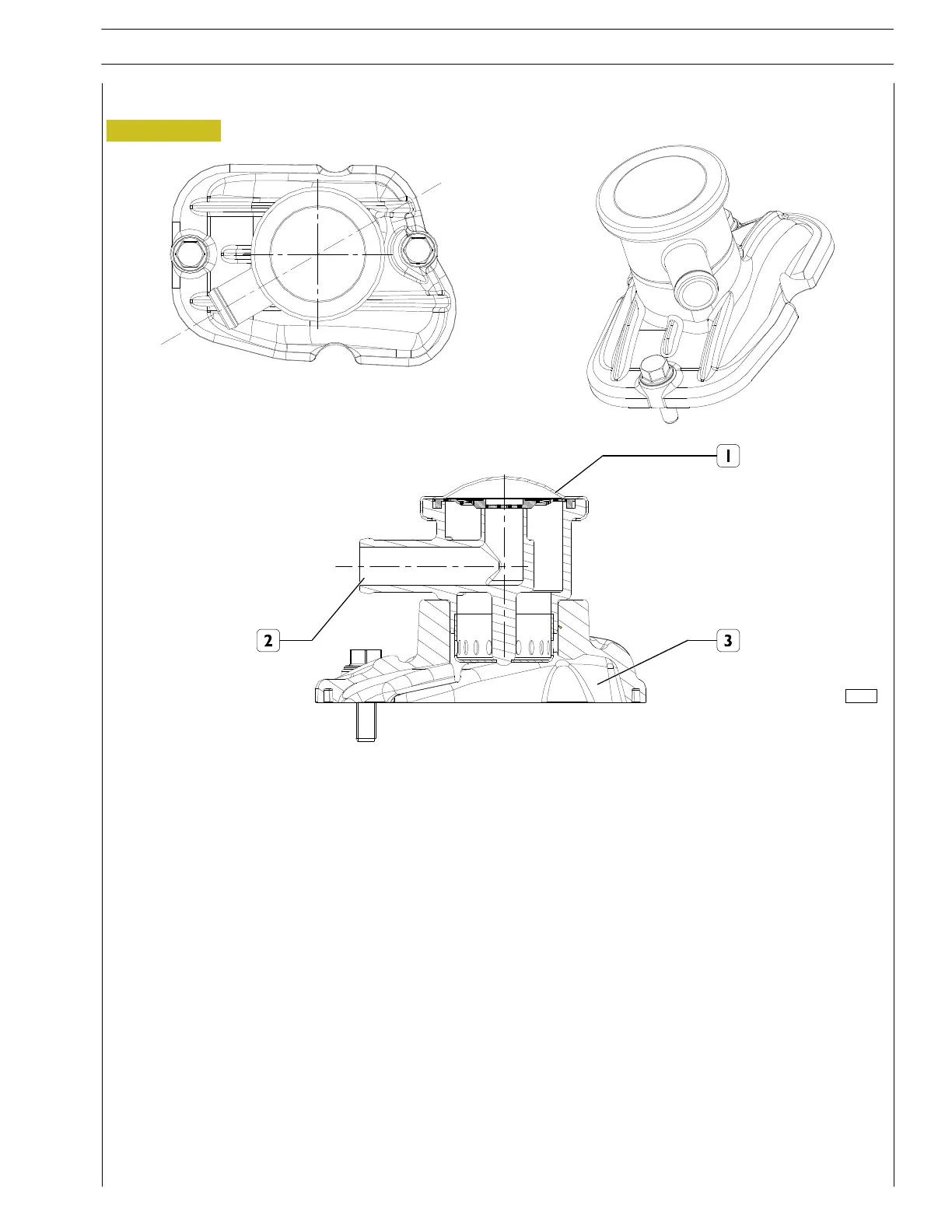

Figure 8
ENGINE OIL VAPOUR RECIRCULATION
1. Valve - 2. Breather - 3. Tappet cover
On the tappet cover (3) there is a valve (1) having the duty to cause condensation of oil vapours making them drop by gravity
on the underlying tappet cover (3).
The remaining non condensed vapours will be duly conveyed through the breather (2), for instance by suction (appropriate
connection must be provided by the outfitter).
SECTION 1 - GENERAL SPECIFICATIONS
9
F32 SERIES
Print P2D32F005 E Base - April 2009
