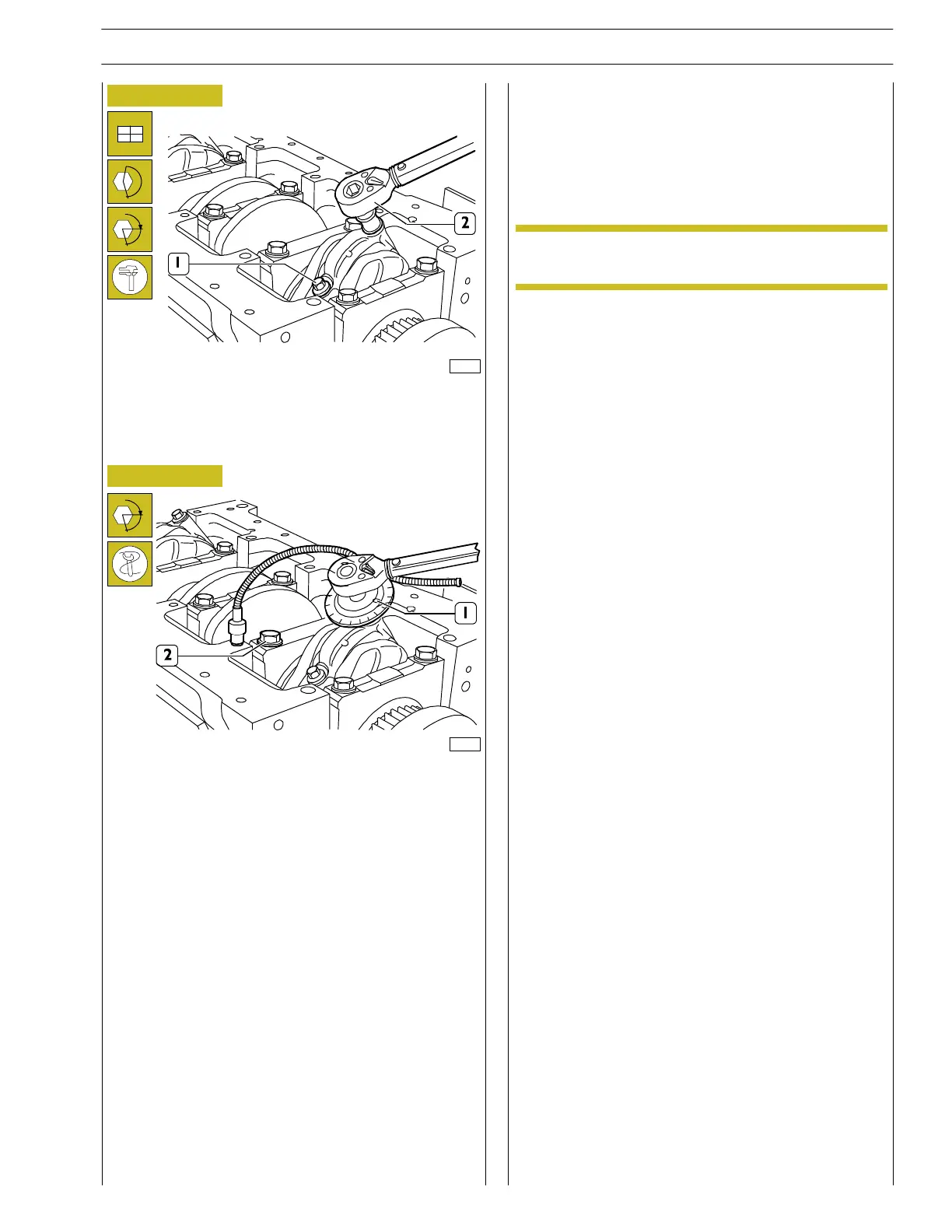

Figure 52
Figure 53
- lubricate the fastening screws (1) with engine oil an d
tighten them to the prescribed torque setting (50 ± 2.5
Nm) using a torque wrench.
- fit the too l 99395216 (1) to the socket wrench and then
further tighten th e screws (2) by 70º.
α
α
Piston projection check
See page 17 of Section 3.NOTE
Check manually th at the connect in g rods are slidingaxially on
the output shaft pins.
