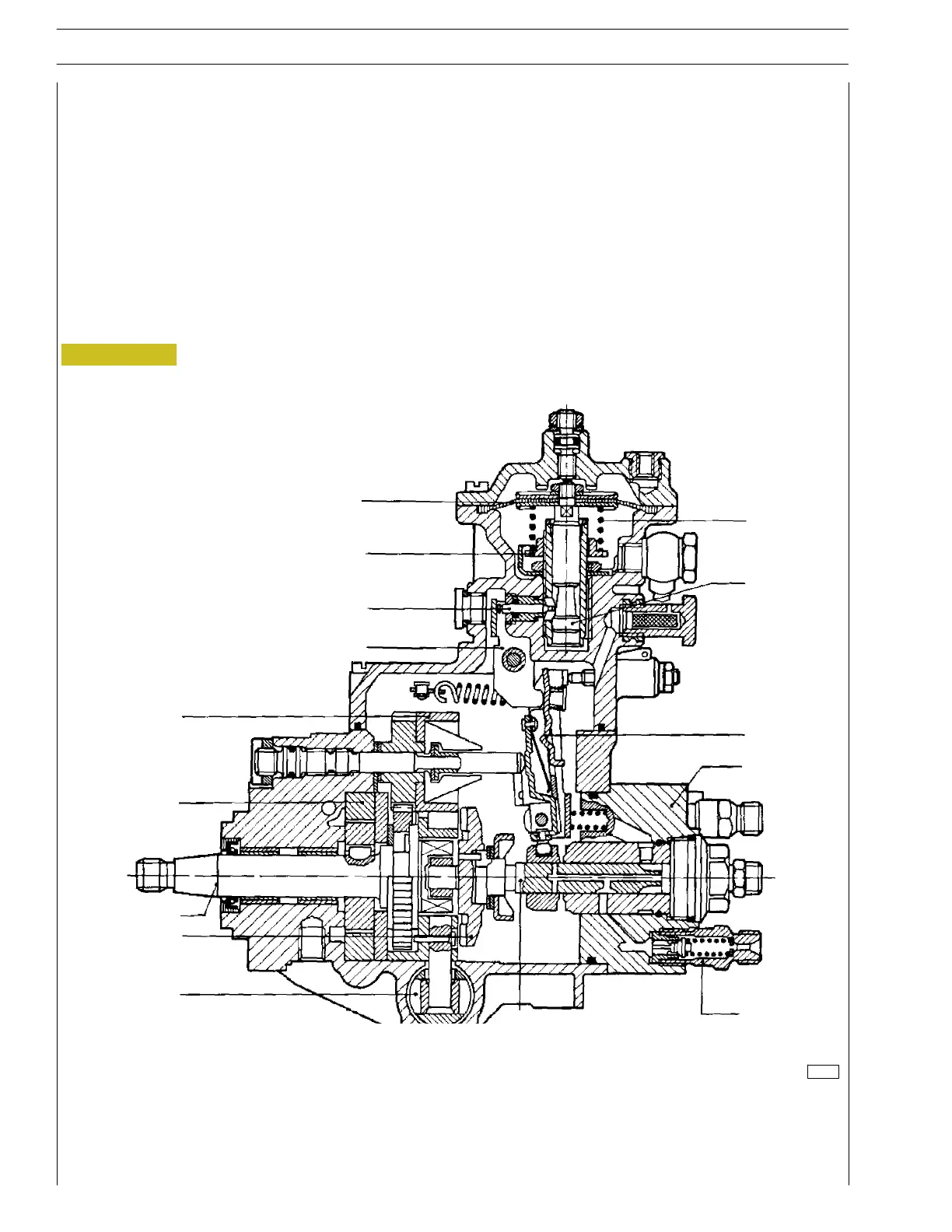

Ignition pump longitudinal section
1. Membrane - 2. Setting ring - 3. Feeler pin - 4. Drive lever - 5. Speed regulator - 6. Transfer pump - 7. Drive shaft -
8. Cam disk - 9. Spark lead adjuster - 10. Distribut or piston - 11. Feed pipe fitting - 12. Hydraulic h ead - 13. Control plate -
14. Adjusting pin - 15. Counter spring.
30454
Figure 4
SUPPLY PUMP
The rotary type supply pump is driven by a gear which is coupled to the engine camshaft gear.
Identification coding example
V = rotary distributo r piston pump
E = pump dimensions
4 = four cylinder engines
12 = distributor piston size in mm
1150 = no. of pump rev./min.
RV = right direction rotation
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
6
SECTION 2 - SUPPLY
F32 SERIES
Base - April 2009 Prin t P2D 32F005 E
