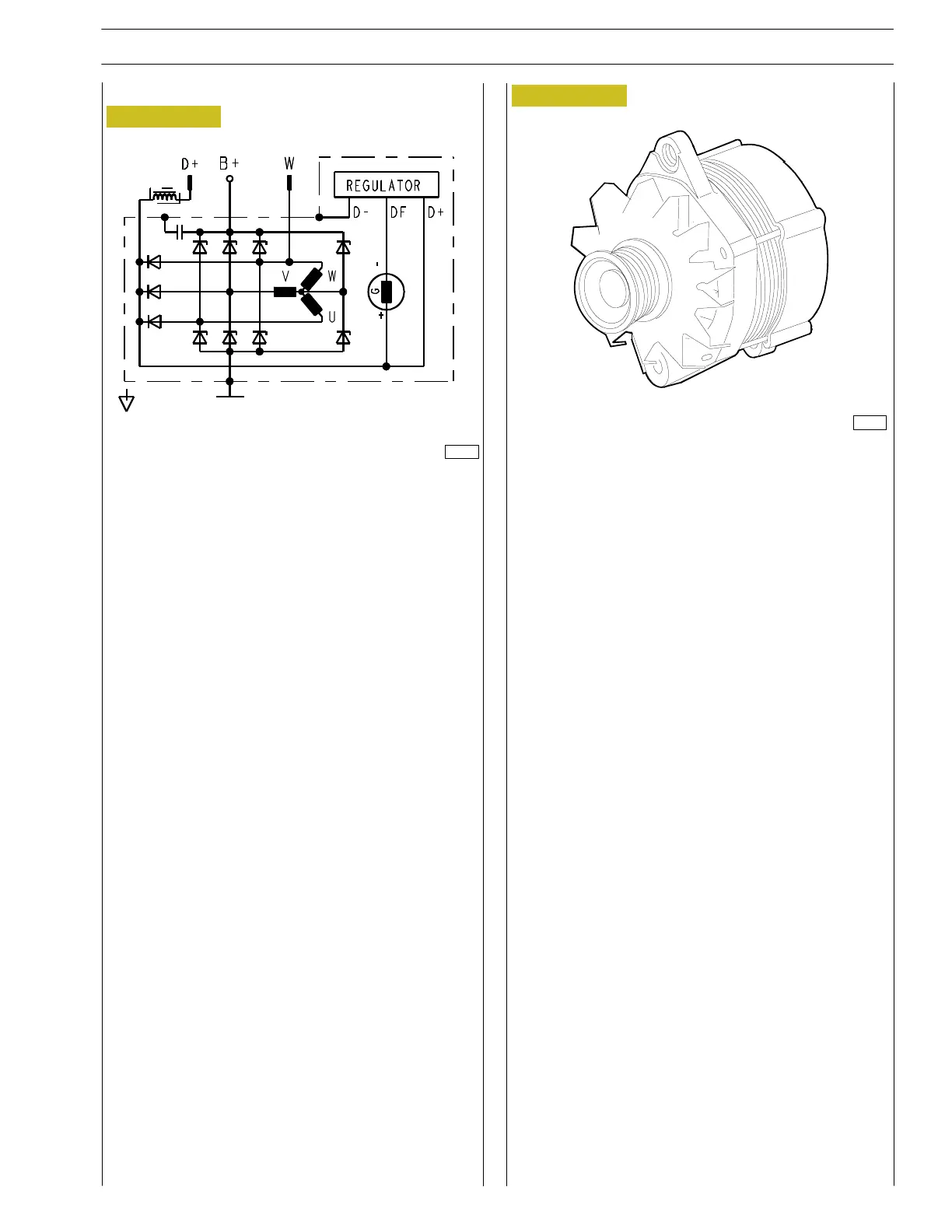

Figure 103
Figure 104
WIRING DIAGRAM
BOSCH 14V Alternator
Specifications for use
Vehicle electric system rated voltage: 12 V
Suitable for coupling with battery of any capacity
It must work with the battery connected.
Connection with inverted polarity is not allowed.
Operating specifications
Rated voltage 14 V
Rated current delivery 95A at 6.000 rpm
Drive side direction of rotation clockwise
Maximum continuous speed 13.500 min
-1
88317
SECTION 3 - INDUSTRIAL APPLICATION
49
F32 SERIES
Print P2D32F005 E Base - April 2009
