Rotary feed pump disassembly and assembly
procedure
This procedure prescribes that:
- the fuel pipes (from the pumping elements to
the injectors, recovering blow-by from the
injectors to the pump and the supply from the
priming pump) have all been removed;
- the electrical connections have been
disconnected.
- Accelerator cable shall be disconnected.
NOTE

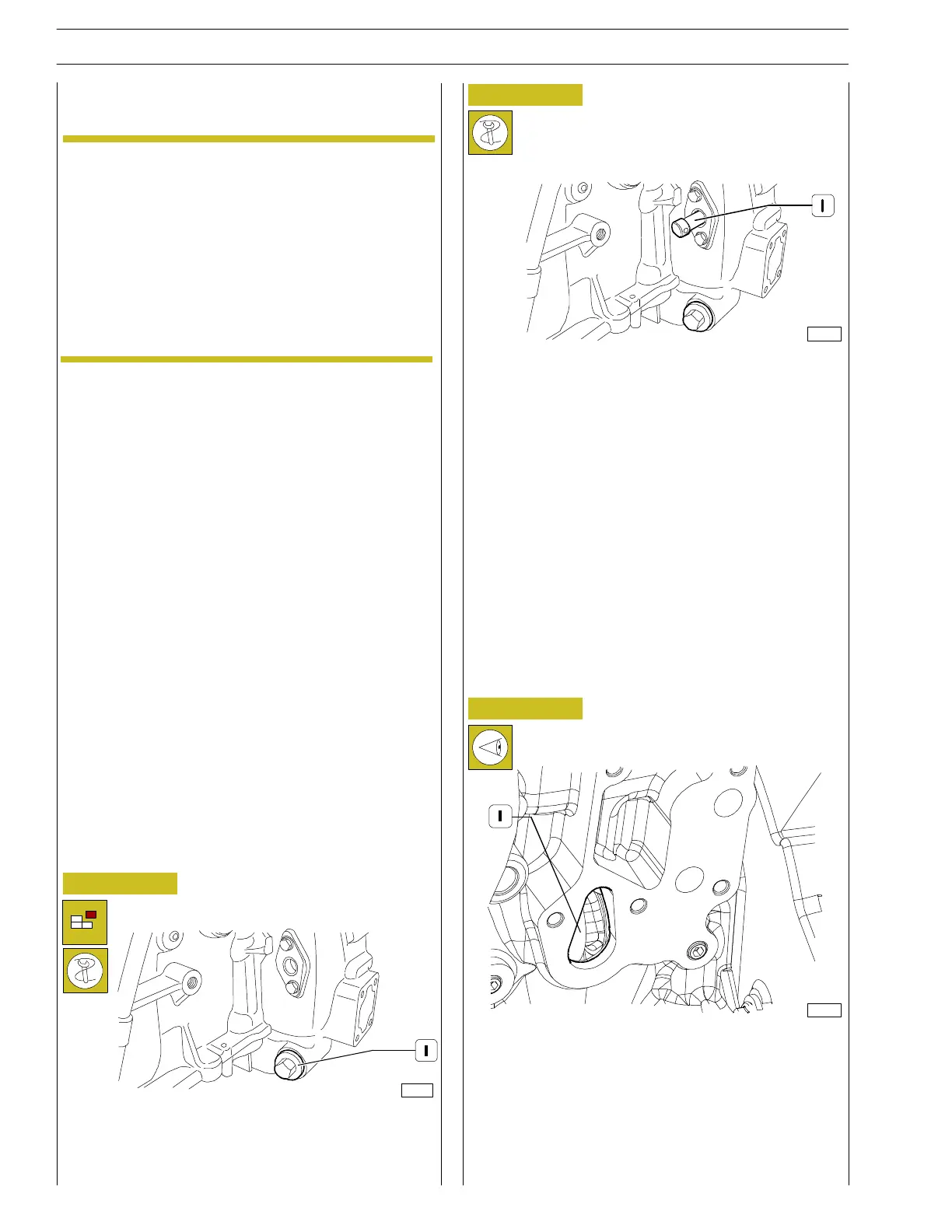

Figure 78
124497
- Fit tool (1) 99360330 to flywh eel housing to rotate the
flywheel (must be used with a suitable wrench).
Figure 79
Position the engine drive shaft at T.D.C. of cylinder 1 rotating
the flywheel un t il achieving t h e following c on ditions:
- the notch (1) is visible from the in spection hole;
- to ol 99360612 should be fitted through the carter into
the port on the flywheel.
- Loosen the screws of the plate in which tool 99360612
(1) is to be fitted.
132006
133189
Figure 80
30
SECTION 3 - INDUSTRIAL APPLICATION
F32 SERIES
Base - April 2009 Prin t P2D 32F005 E
