124496

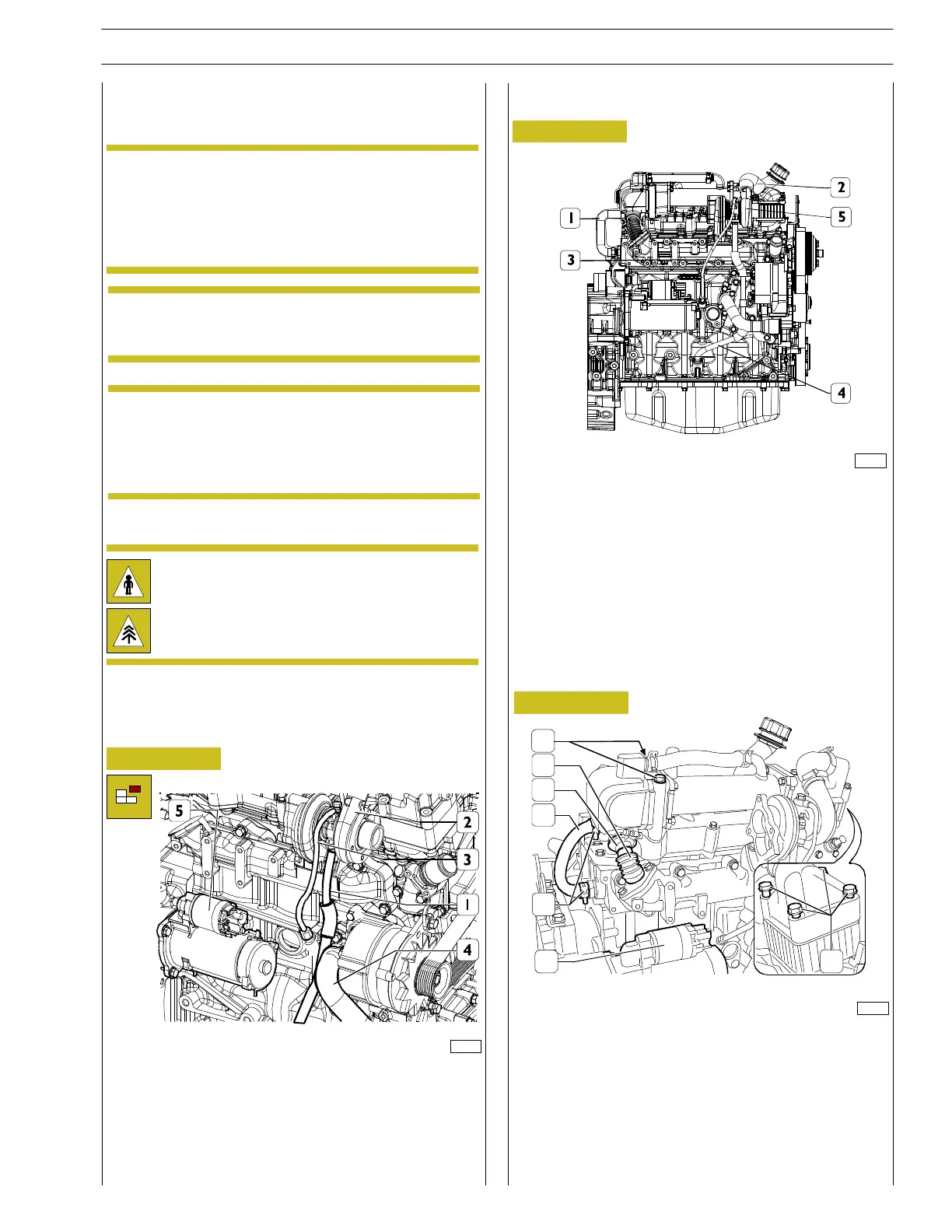

Figure 1
- Remove oil delivery pipe connected to the turboc harger
(3) and t the oil return pipe (1).
- Remove the turbocharger unit (2).
- Duly hold the starter (5), unscrew the fastening screws
and remove the starter.
- Remove the water hose (4).
ENGINE DISASSEMBLY ON BENCH
Engine disassembly operations to remove the
engine from the vehicle are described in the specific
section. Engine disassembly operations, as well as
engine overhaul, must be executed by qualified
engineers only, duly provided with the specific
tools required.
NOTE
Depending on the appliance, some units may have
different position on the engine.
NOTE
Before fitting the engine on the rotary stand
99322205, disassemble the parts which may
interfere with th e bracket 99361043 assembly.
Depending on th e appliance, it may be necessary
to remove the starter and the oil filter.
NOTE
- Drain the engine oil from the oil pan collecting it in a
suitable cont ainer.
Warning! Avoid skin contac t with the engine oil: in
case of contact wash your skin with running water.
The engine oil is highly polluting: waste disposal must
be executed complying with the laws and regulations
in force.
- Remove the electric wirin g from the injection pump.
119904
Figure 2
- Remove the water delivery pipe (1) from the exchanger.
- Loose th e clip and disconnect the pipe (2); remove oil
delivery pipe connected to the turboc harger (3) and t
the oil return pipe (4).
- Remove the turbocharger unit (5)
For F5CE5454 engines
Figure 3
- Using pinc ers, remove the clips (1) and th e water
delivery pipe connected to th e valve support and the
exchanger (2). Loosen the clip (3) and detach the pipe
(4), from the EGR valve housing. Unscrew the EGR
fastening screws on the front side (5), and those on the
valve support side (6), then remove the EGR un it.
- Duly hold the starter (7), unscrew the fastening screws
and remove the starter.
119104
5
1
2
3
4
6
7
For F5CE9454, F5CE9484 engines
SECTION 3 - INDUSTRIAL APPLICATION
7
F32 SERIES
Pri nt P2D32F005 E Base - April 2009
