FPT F32 MNS - Engine Drive Shaft; Measurement of Main Journals and Crankshaft Bearing Pins

119555
70180
119557
Figure 21
Figure 22
Figure 23
Figure 24

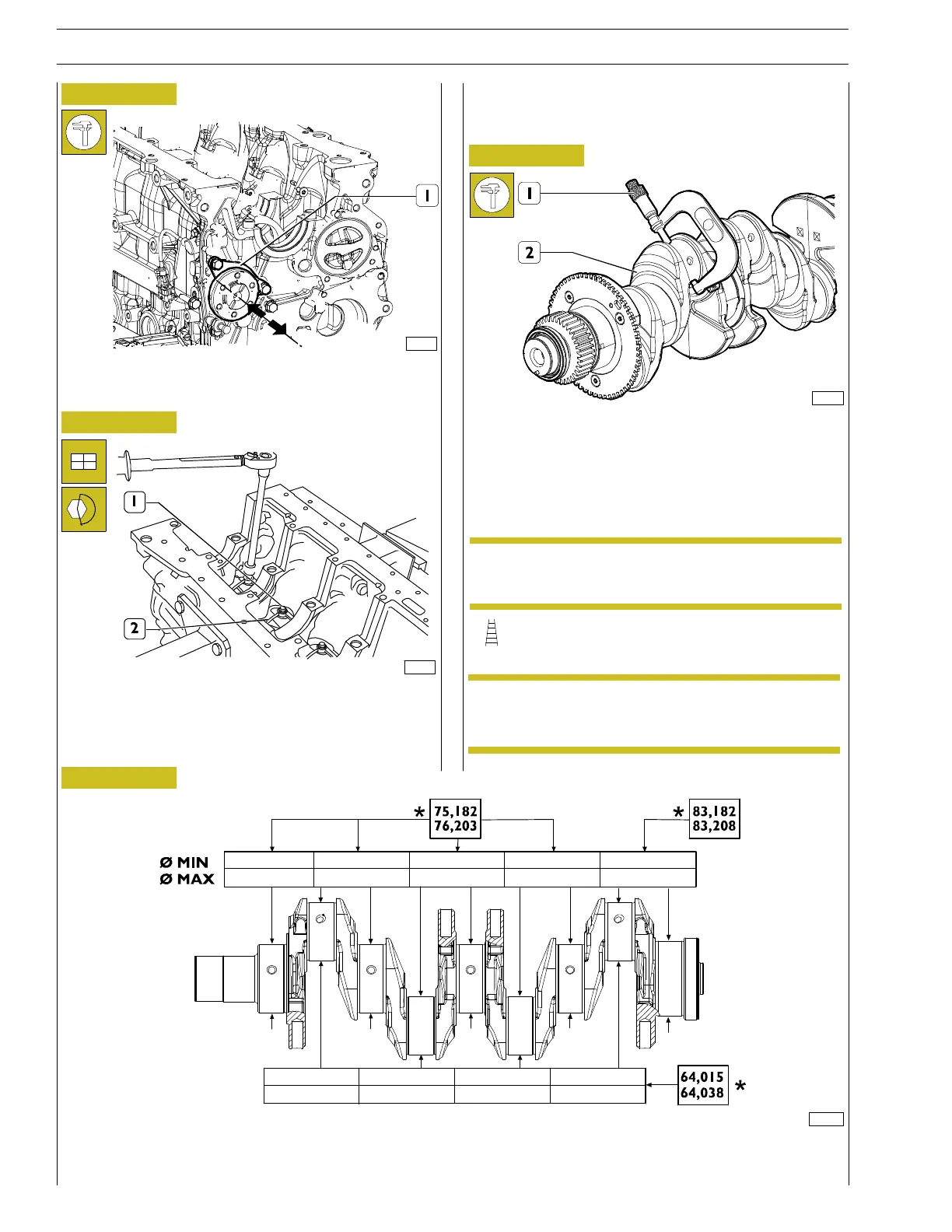

Check the camshaft axial shaft (1).
The prescribed value is 0.23 ± 0.1 3 mm.
Fit the nozzles (2) and tighten the fastening screws (1) to the
prescribed torque setting.
In case meshing, scratc h es or excessive oval shaping is
detected on the main journals and crankshaft bearing pins, it
is necessary to grin d the pins. Before proceeding with pin (2)
grinding, measure the shaft pins by means of a micrometer
(1) in order to establish to which diameter the pins must be
reduced.
Itis recommended to note down the values
detected in a prospect.
SeeFigure24.
Undersize classes are: 0.254 - 0.508 mm.
The main jou rnals an d crankshaft bearing pins must
always be grinded to th e same undersize classes in
order not to alter the shaft’s balanc e.
PROSPECT REPORTING MEASUREMENT VALUES OF
THE ENGINE DRIVE SHAFT MAIN JOURNALS AND CRANKSHAFT BEARING PINS
* Rated value
ENGINE DRIVE SHAFT
Measurement of main journals and crankshaft
bearing pins
119556
NOTE
NOTE
16
SECTION 4 - MECHANICAL OVERHAUL
F32 SERIES
Base - April 2009 Pri nt P2D32F005 E
