SECTION 4 - MECHANICAL OVERHAUL
17
F32 SERIES
Pri nt P2D32F005 E Base - April 2009
TOLERANCES TOLERANCE CHARACTERISTIC GRAPHIC SYMBOL
SHAPE
Roundness
○
Cilindricity
/○/
DIRECTION
Parallelism //
Verticality
Straightness
POSITION Concentricity or coaxiality
OSCILLATION
Circular oscillation
Total oscillation
LEVELS OF IMPORTANCE FOR PRODUCT CHARACTERISTICS GRAPHIC SYMBOL
CRITICAL
IMPORTANT
⊕
SECONDARY
⊝
119558
Figure 25

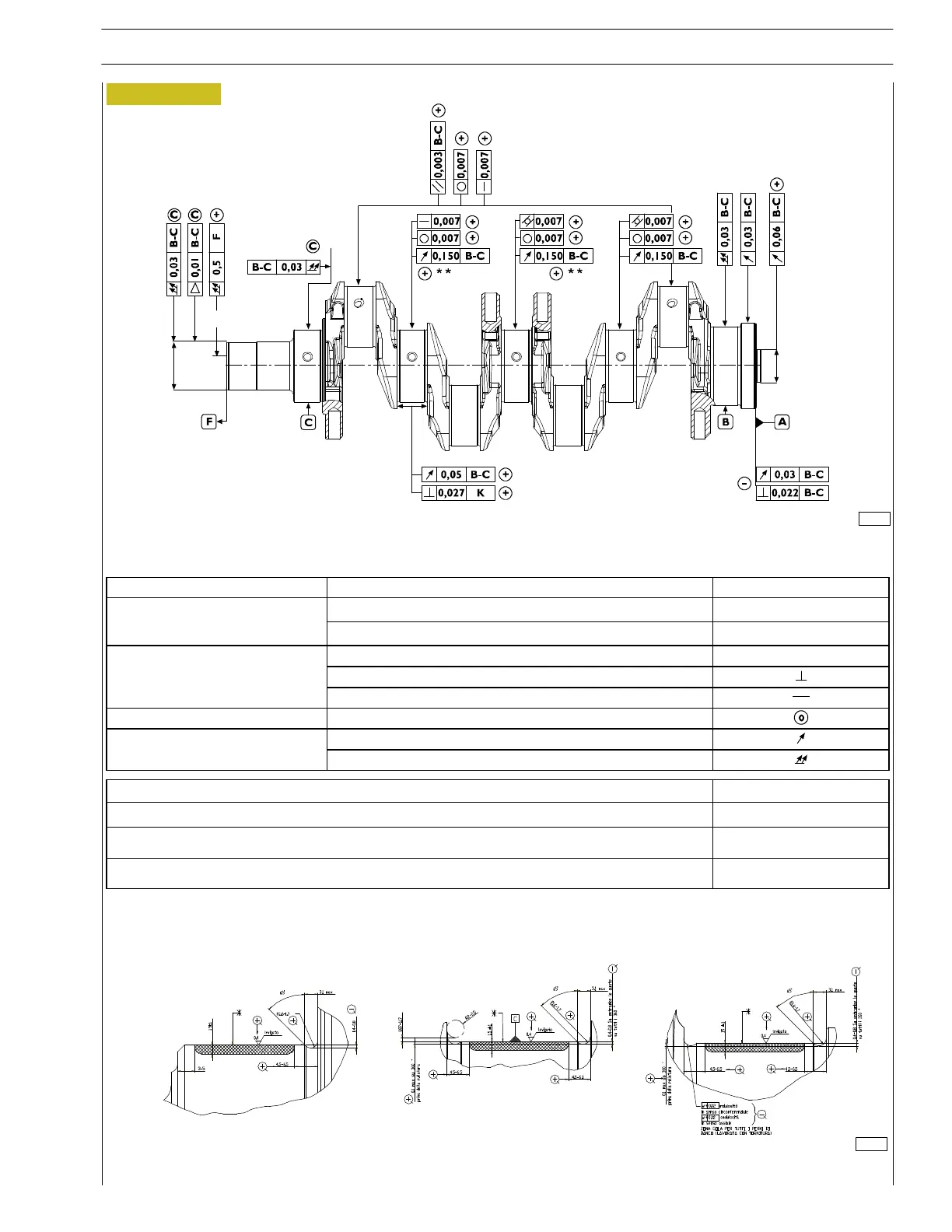

ENGINE DRIVE SHAFT MAIN TOLERANCES
119574
TIMING SIDE BENCH IN TERMEDIATE BENCHES FIRST BENCH ON
FRONT SIDE
