FPT F32 MNS - Priming Pump

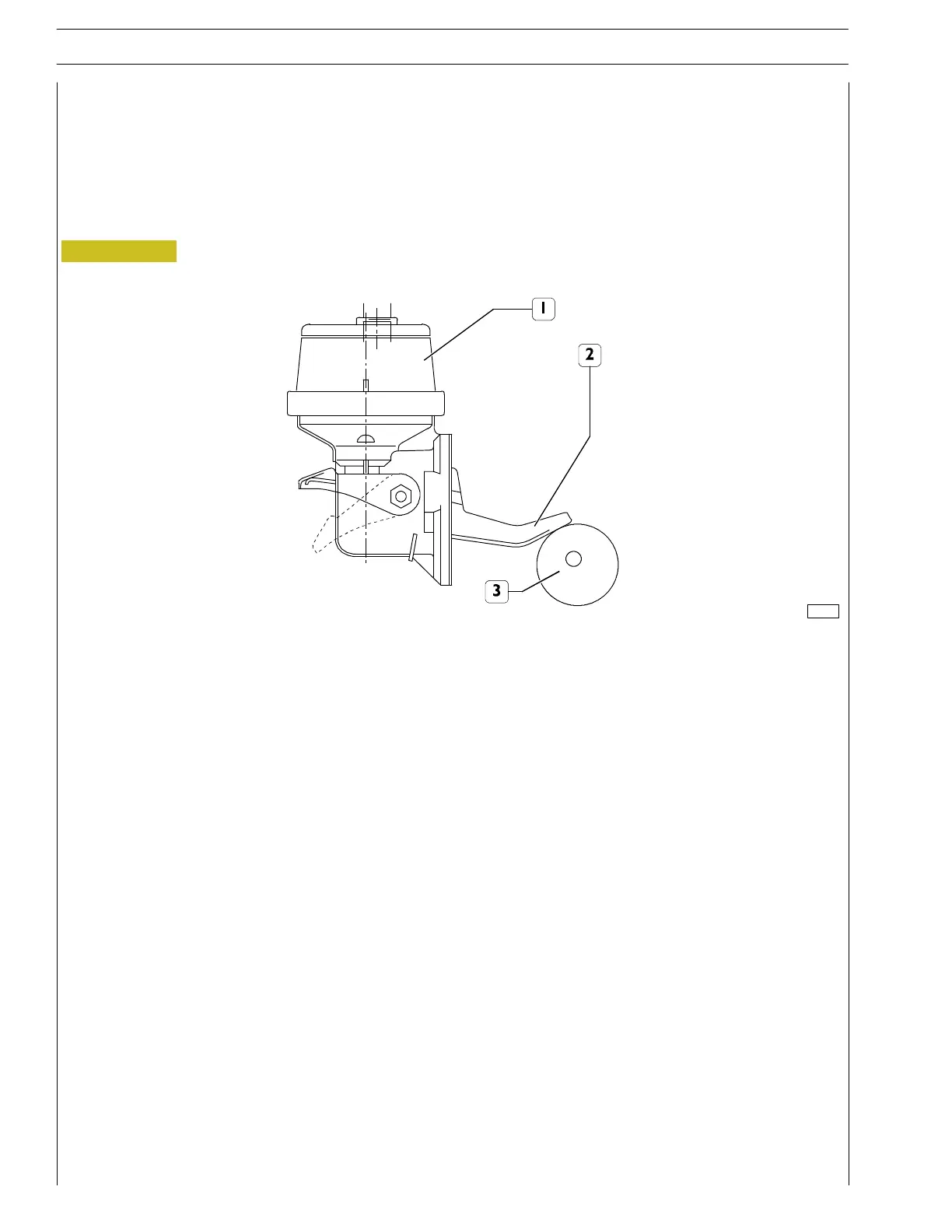

Figure 10
PRIMING PUMP
The priming pump duty is to prime the fuel from the tank and convey it to the fuel supply pump. It is fitted on the engine basement
and driven by the engine camshaft.
88209
1. Pump - 2. Control lever - 3. Camshaft.
10
SECTION 2 - SUPPLY
F32 SERIES
Base - April 2009 Prin t P2D 32F005 E
