FPT F32 MNS - Engine Cooling System; For Engines Without External EGR

Figure 9
ENGINE COOLING SYSTEM
For engines without external EGR
The closed circuit forced circulation engine cooling system is
composed of the following parts:
- expansion tank: position, form and dimensions may vary
depending on the engine fitting;
- radiator dissipating the heat absorbed by the engine
cooling liquid. This component’s position and dimensions
may vary depending on the outfit;
- fan increasing the radiator’s cooling p ower. This
component may vary depending on the specific engine
fitting;
- heat exchan
g
e
r
coolin
g
t
he lubricant oil. This com
p
onent
may vary depending on the specific engine fitting;
- centrifugal water pump positioned in the front part of the
engine basement;
- thermostat controlling cooling liquid circulation.

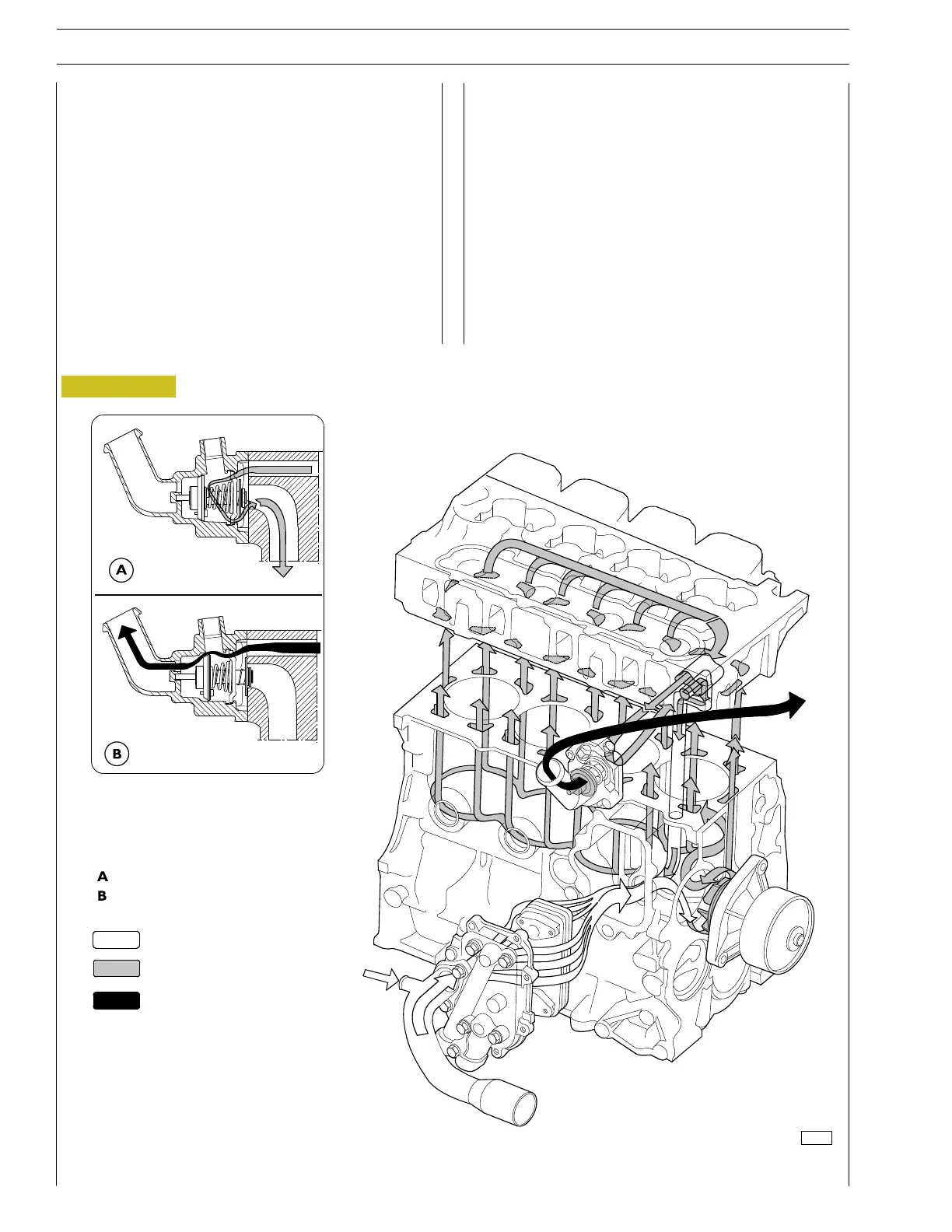

ENGINE COOLING SYSTEM DIAGRAM
120018
Closed thermostat
Open thermostat
Water inflow
Engine cooling water
Water outflow from thermostat
10
