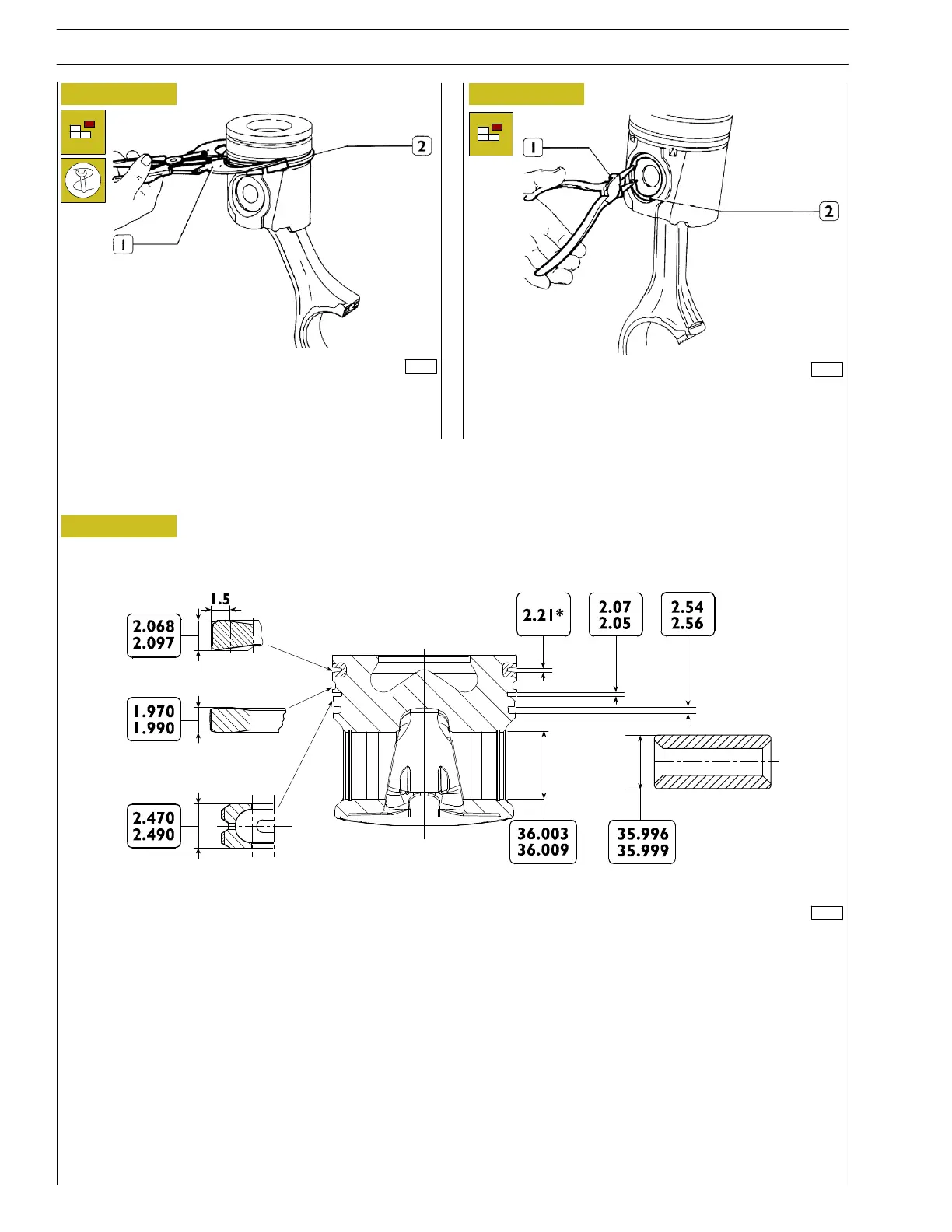

Figure 33
Figure 34
Figure 35
Using pincers 99360183 (1), remove the sn a p rings (2) from
the piston.
Remove the piston pin (2) grommet using the round
tippedpliers (1).
MAIN DATA OF THE PISTON, PINS AND SNAP RINGS
* Quota detected on Ø 96 mm.
