119420

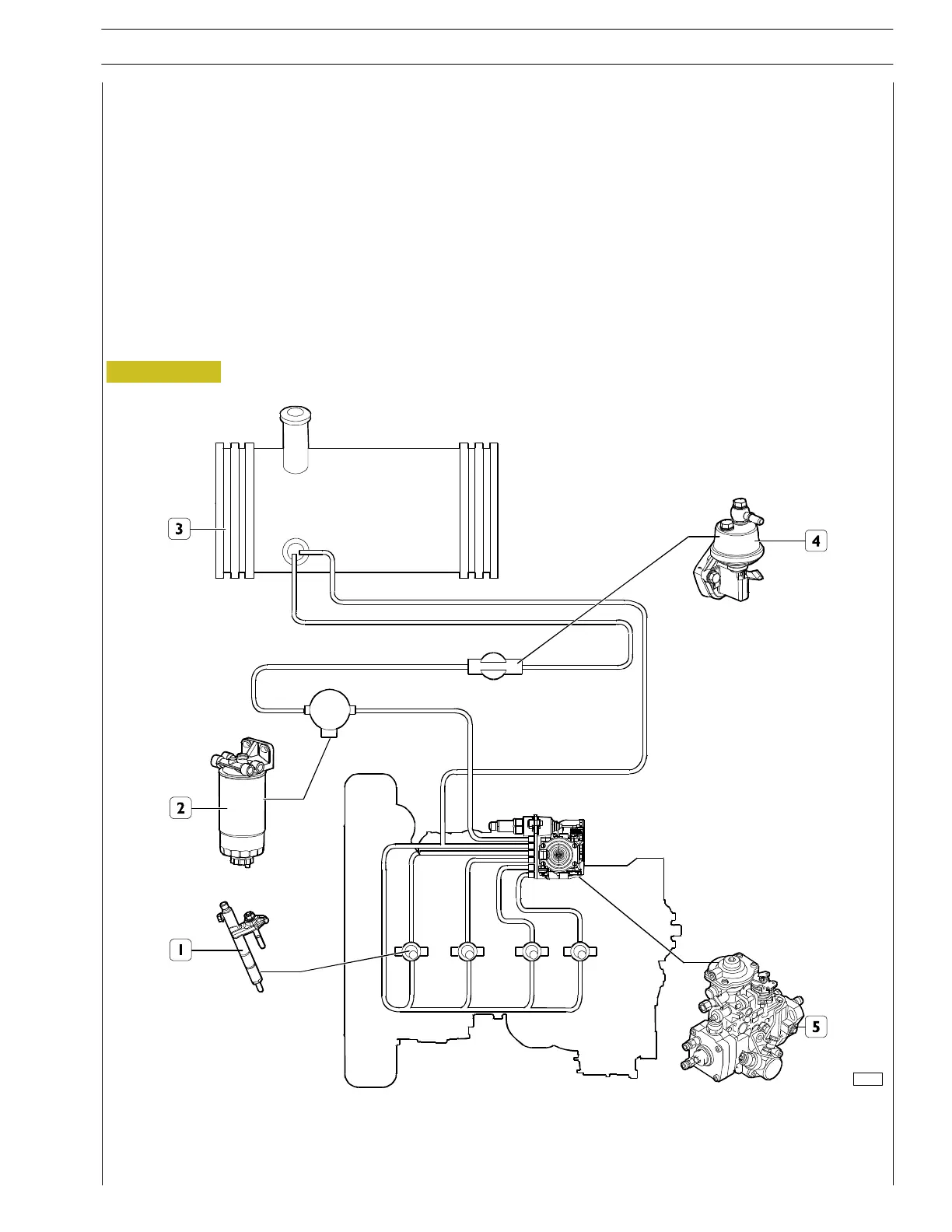

SUPPLY SYSTEM DIAGRAM
1. Injectors - 2. Fuel filter - 3. Tank - 4. Supply rotary pump - 5. Ignit ion pump.
SUPPLY
The engine supply system consists of the following components:
- Fuel tank (aboard the vehicle)
- Fuel delivery and return pipes
- Fuel pre-filter (if fitted, it is placed nearby th e engine on the vehicle’s chassis)
- Priming pump, fitted on the engine and driver by the engine camshaft
- Fuel filter (its position on the engine may vary depending on the outfit and use)
- Supplyrotarypump
- Injector feed pipe (from the fuel supply pump to the fuel injectors)
- Injectors
Figure 1
SECTION 2 - SUPPLY
3
F32 SERIES
Pri nt P2D32F005 E Base - April 2009
