119116
119130
119118
119119
Figure 21
Figure 22
Figure 23
Figure 24
Figure 25

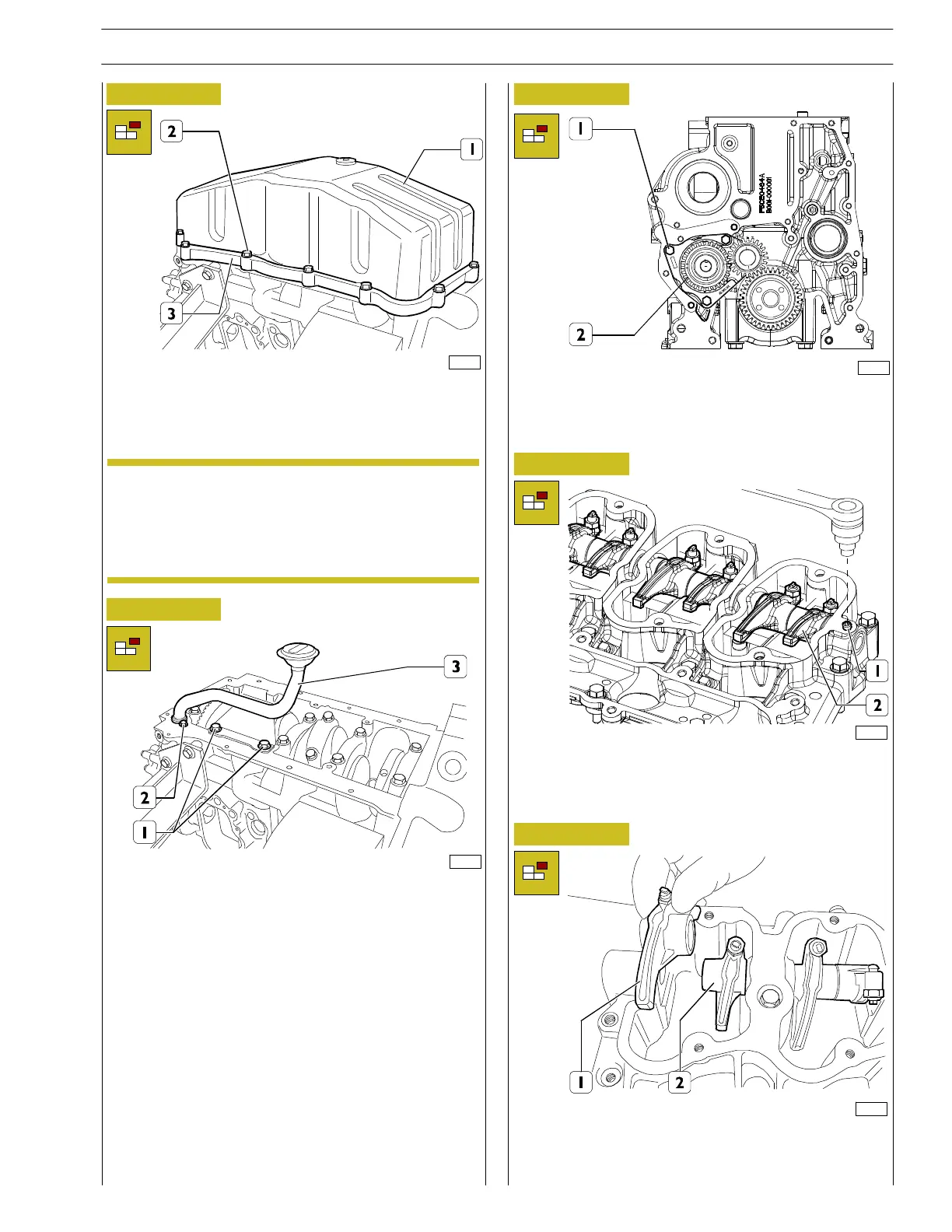

- Loosen the suction rose su pport fastening screws (1).
- Lo osen the suc tion rose (3) fastening screws (3) an d
then remove the suction rose.
- Loosen the rocker arm fastening screw (1) from the
disassembled rocker arm holding unit and then remove
the rocker arm.
- Withdraw the roc ker arm (1) from one side recovering
the equalizers (2) from the other.
- Turntheengineupsidedown.
- Loosen the screws (2), disassemble the plate (3) and
remove the oil pan (1).
The shape and dimensions of the oil pan and the
suction rose may vary depending on the engine
appliance. Hence, the figures provide a general
indication of the operation to be executed. Yet, the
herein description of the procedures is exhaustive
and applicable.
NOTE
- Loosen the screws (1) and remove the oil pump (2).
119117
SECTION 3 - INDUSTRIAL APPLICATION
13
F32 SERIES
Pri nt P2D32F005 E Base - April 2009
