1.11.
OPWMCB: Center Aligned Output Pulse Width Buffered
The Center Aligned Output PWM Buffered with Dead-Time mode (MODE[0:6]=10111bb) is
another way of generating a PWM. The time base can be selected via BSL, and it should be a
up/down MCB counter. It is also recommended to start the MCB channel after starting the
OPWMCB mode.

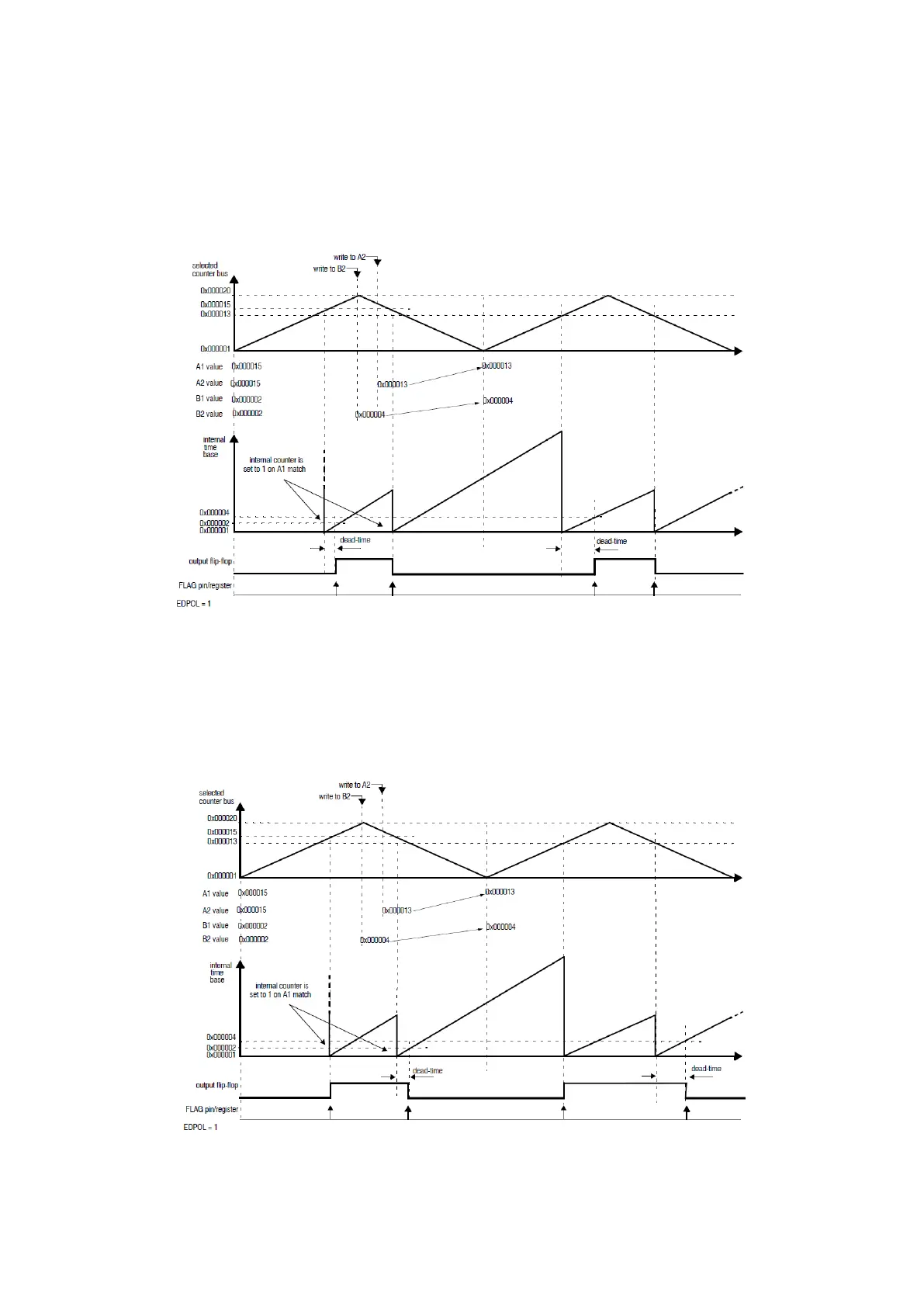

Figure 59 : OPWMCB with lead dead time (R.M. Rev8 – Fig. 24-41)
Register A1 controls the duty cycle for the PWM signal, it is compared with the time base, and
comparisons result in centred pulses thanks to up/down counter. Match on A1 will set the
internal timer to 0x1.
*
Figure 60 : OPWMCB with trail dead time (R.M. Rev8 – Fig. 24-42)
