Freescale Semiconductor MPC5604B - Chapter 5 Emios: Enhanced Modular I;O Subsystem

32
Chapter 5
eMIOS: Enhanced Modular I/O Subsystem
These modules use timer channels to generate or measure time based events like PWM, counter
generation, period measurement etc. Channels can be configured up to 12 different operation
modes shown on the figure below.

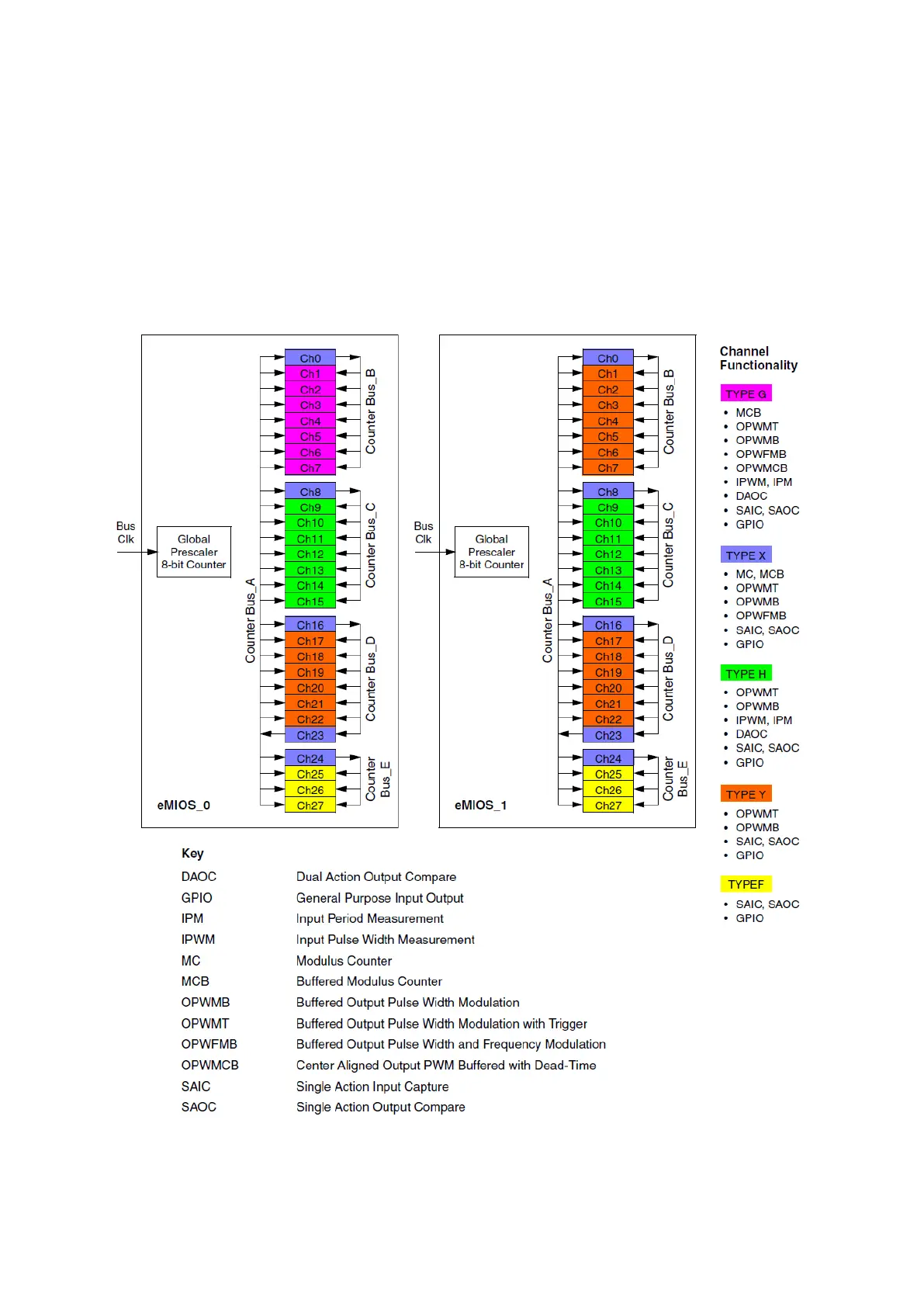

Figure 43 : eMIOS Channel Configuration (R.M. Rev8 – Fig. 24-7)
