Fronius IG Plus A 3.0-1 UNI User Manual

109
EN-US

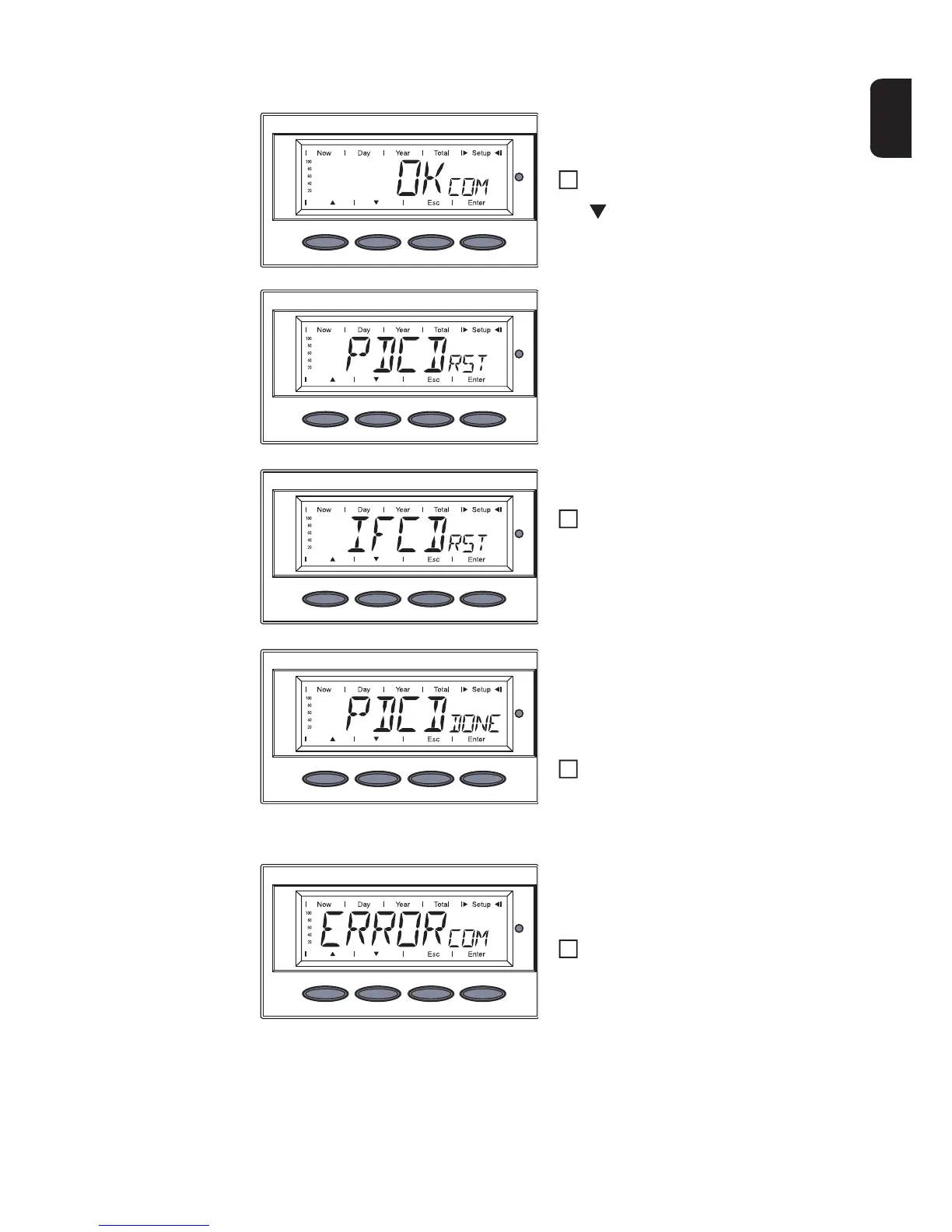

Available data connection
If there is a data connection available, ‘OK-
COM’ is shown.
Use the ‘Down’ key to select available
data:
e.g. Reset Personal Display Card (‘PD-
CDRST’) ...
... or Reset Interface Card (‘IFCDRST’)
Press the ‘Enter’ key
‘PDCD DONE‘...
...or...
‘IFCDDONE’ is shown
Press the ‘Esc’ key 2x to exit menu
item ‘DATCOM’
Data connection faulty or an option is not installed
If there is a faulty data connection or op-
tions are not installed ‘ERRORCOM’ is
shown.
Press the ‘Esc’ key to exit menu item
‘DATCOM’
3
4
5
3

Fronius IG Plus A 3.0-1 UNI Specifications

General

AC nominal output	3000 W
Max. apparent AC power	3000 VA
Max. output current	13 A
AC grid frequency	50 / 60 Hz
THD	<3%
Max. DC voltage	500 V
Number of MPP trackers	1
AC voltage range	183 V - 264 V
DC input voltage range	150 - 450 V
Cooling	Convection
