Product description

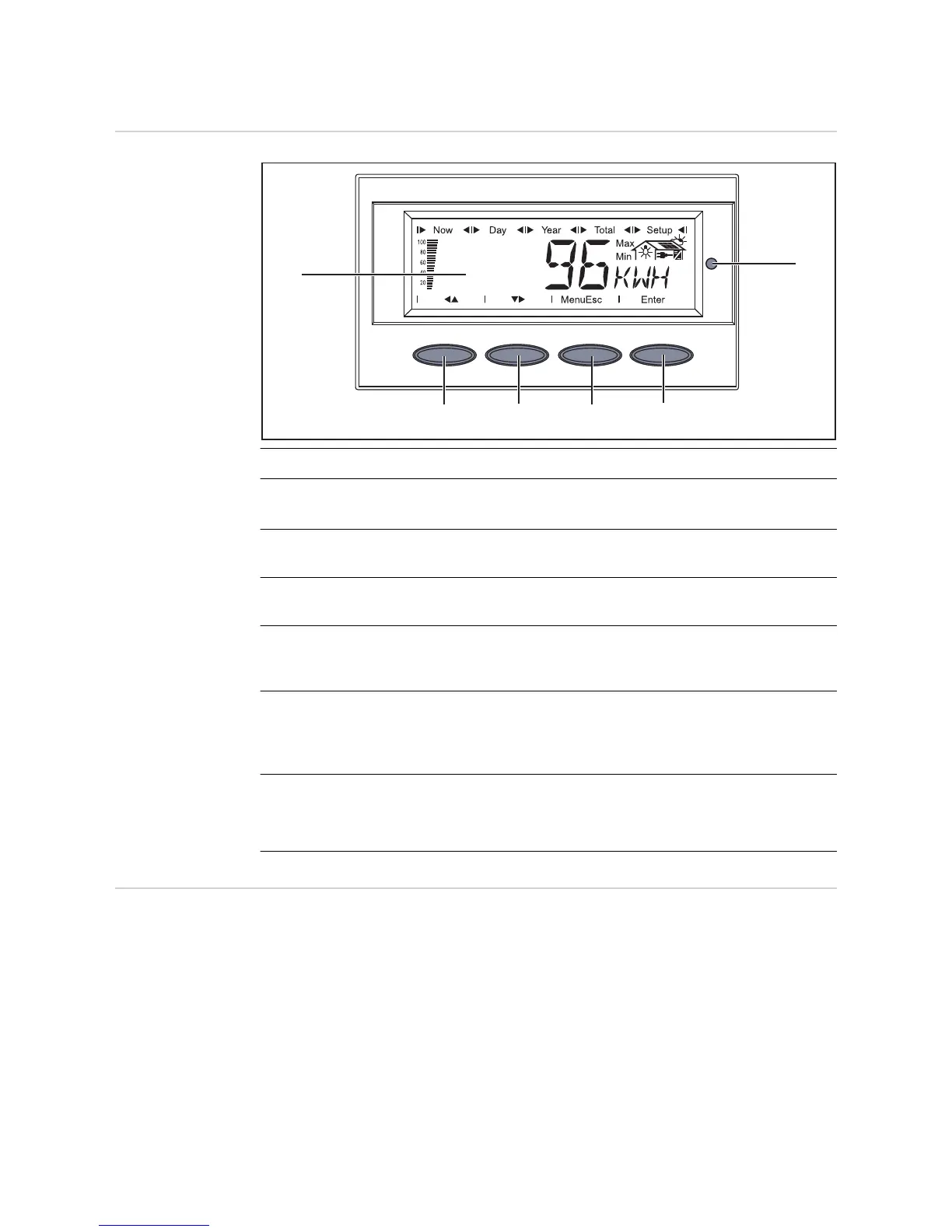

Controls and Indi-
cators
Item Function
(1) Display
for displaying values, settings and menus
(2) Operating Status LED
for displaying the operating status
(3) "Enter" key
for confirming a selection
(4) "Menu / Esc" key
for scrolling through menu options
for exiting the Setup menu
(5) "Down/Right" key
depending on the selection:
for navigating down
for navigating right
(6) "Left/Up" key
depending on the selection:
for navigating left
for navigating up
Display The display unit's power is supplied via the safety-low voltage of the solar modules, which
means that the display unit can be used only in the daytime.
(1)
(6)
(5)
(4) (3)
(2)
IMPORTANT! The inverter display is not a calibrated measuring instrument. A slight inac-
curacy of a few percent is intrinsic to the system. A calibrated meter will be needed to make
calculations for the power supply company.

Fronius IG Plus A 3.0-1 UNI Specifications

General

AC nominal output	3000 W
Max. apparent AC power	3000 VA
Max. output current	13 A
AC grid frequency	50 / 60 Hz
THD	<3%
Max. DC voltage	500 V
Number of MPP trackers	1
AC voltage range	183 V - 264 V
DC input voltage range	150 - 450 V
Cooling	Convection
