Fronius IG Plus A 3.0-1 UNI - Lifting the Inverter; Inverter Installation

30
Lifting the invert-
er
Fronius recommends using a commercially-available vacuum lifting pad for flat surfaces to
lift the connection area and power stage set.
IMPORTANT!
- The vacuum lifting pads must be designed for the weight of the connection area and
power stage set.
- Follow all safety instructions from the vacuum lifting pad manufacturer.
- Vacuum lifting pads are not part of the scope of delivery for the inverter.
Weight information for the connection area and power stage set:

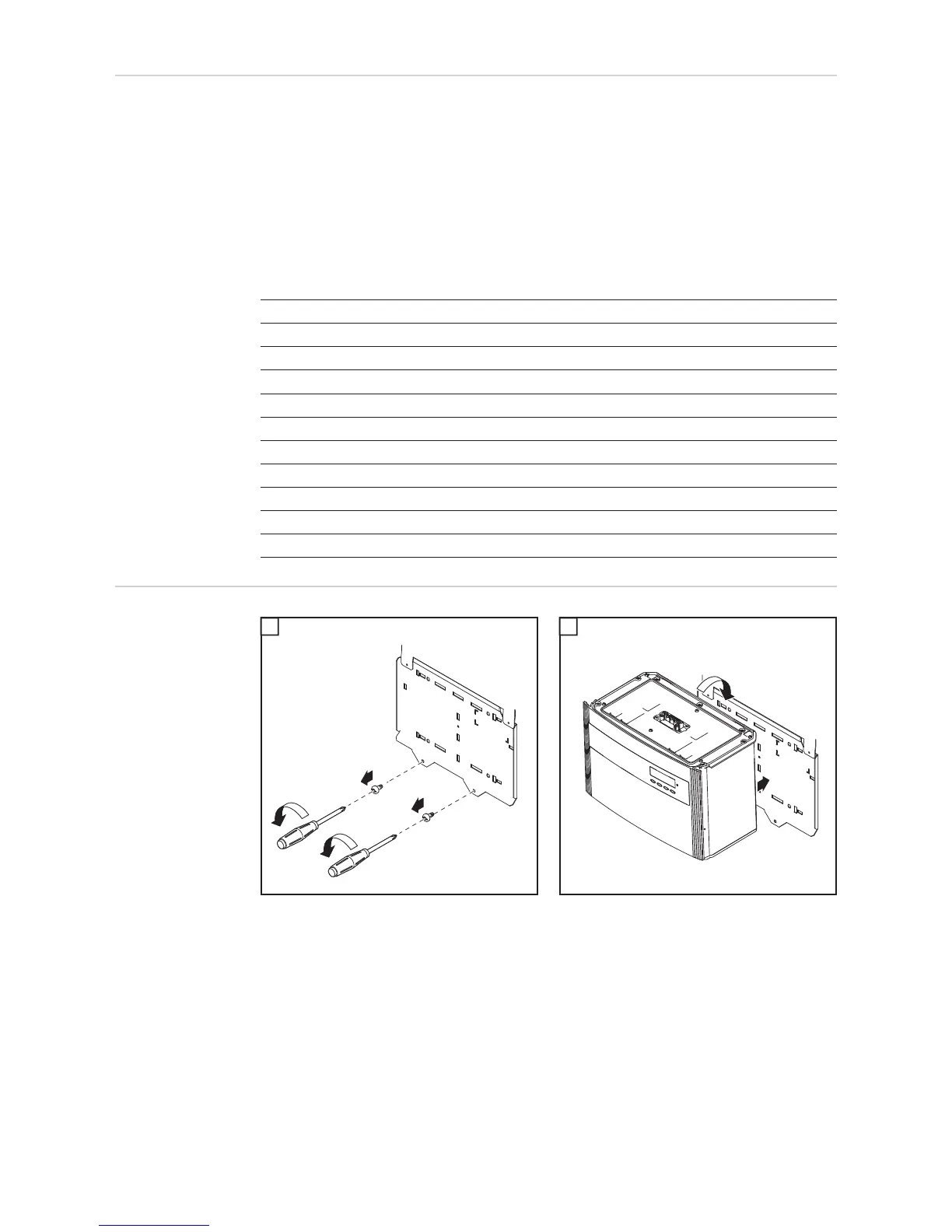

Inverter installa-
tion
1 2
Inverter Connection area Power stage set
Fronius IG Plus A 3.0-1 UNI 24 lbs. 31 lbs.
Fronius IG Plus A 3.8-1 UNI 24 lbs. 31 lbs.
Fronius IG Plus A 5.0-1 UNI 26 lbs. 57 lbs.
Fronius IG Plus A 6.0-1 UNI 26 lbs. 57 lbs.
Fronius IG Plus A 7.5-1 UNI 26 lbs. 57 lbs.
Fronius IG Plus A 10.0-1 UNI 26 lbs. 82 lbs.
Fronius IG Plus A 10.0-3 Delta 26 lbs. 82 lbs.
Fronius IG Plus A 11.4-1 UNI 26 lbs. 82 lbs.
Fronius IG Plus A 11.4-3 Delta 26 lbs. 82 lbs.
Fronius IG Plus A 12.0-3 WYE277 26 lbs. 82 lbs.
