Fronius IG Plus A 3.0-1 UNI User Manual

32
Installation of
several inverters

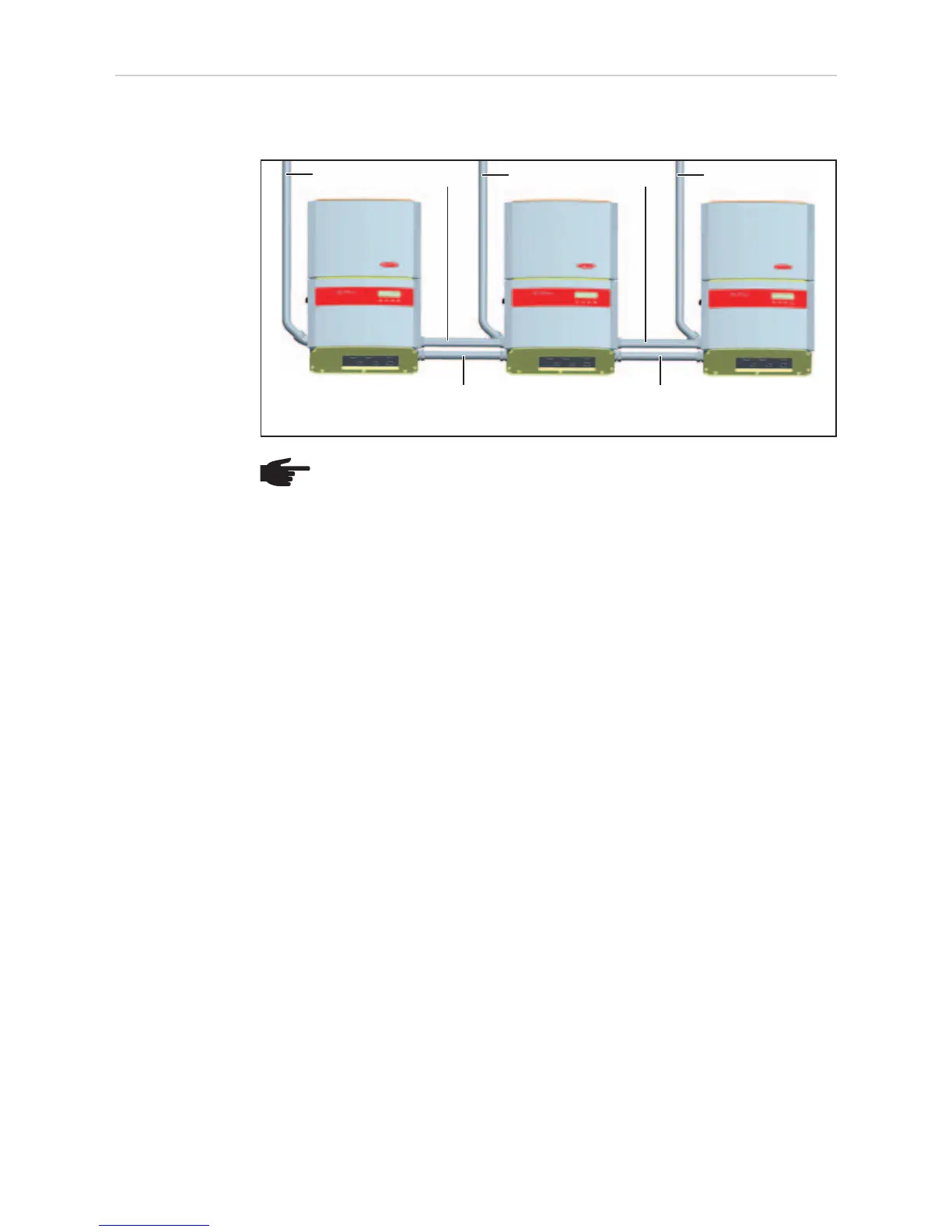

Several inverters can be easily installed and connected next to each other using the side
knockouts on the inverter, e.g.:
NOTE! All electrical installations must be carried out in accordance with the Na-
tional Electrical Code, ANSI/NFPA 70, and any other codes and regulations ap-
plicable to the installation site.
For installations in Canada, the installations must be done in accordance with ap-
plicable Canadian standards.
CDCDCD
DATCOM = data communication
DATCOM DATCOM
AC
AC

Fronius IG Plus A 3.0-1 UNI Specifications

General

AC nominal output	3000 W
Max. apparent AC power	3000 VA
Max. output current	13 A
AC grid frequency	50 / 60 Hz
THD	<3%
Max. DC voltage	500 V
Number of MPP trackers	1
AC voltage range	183 V - 264 V
DC input voltage range	150 - 450 V
Cooling	Convection
