Fronius IG Plus A 3.0-1 UNI - Inserting Option Cards into the Inverter; Termination Plug When Networking Several DATCOM Components

76
3
4

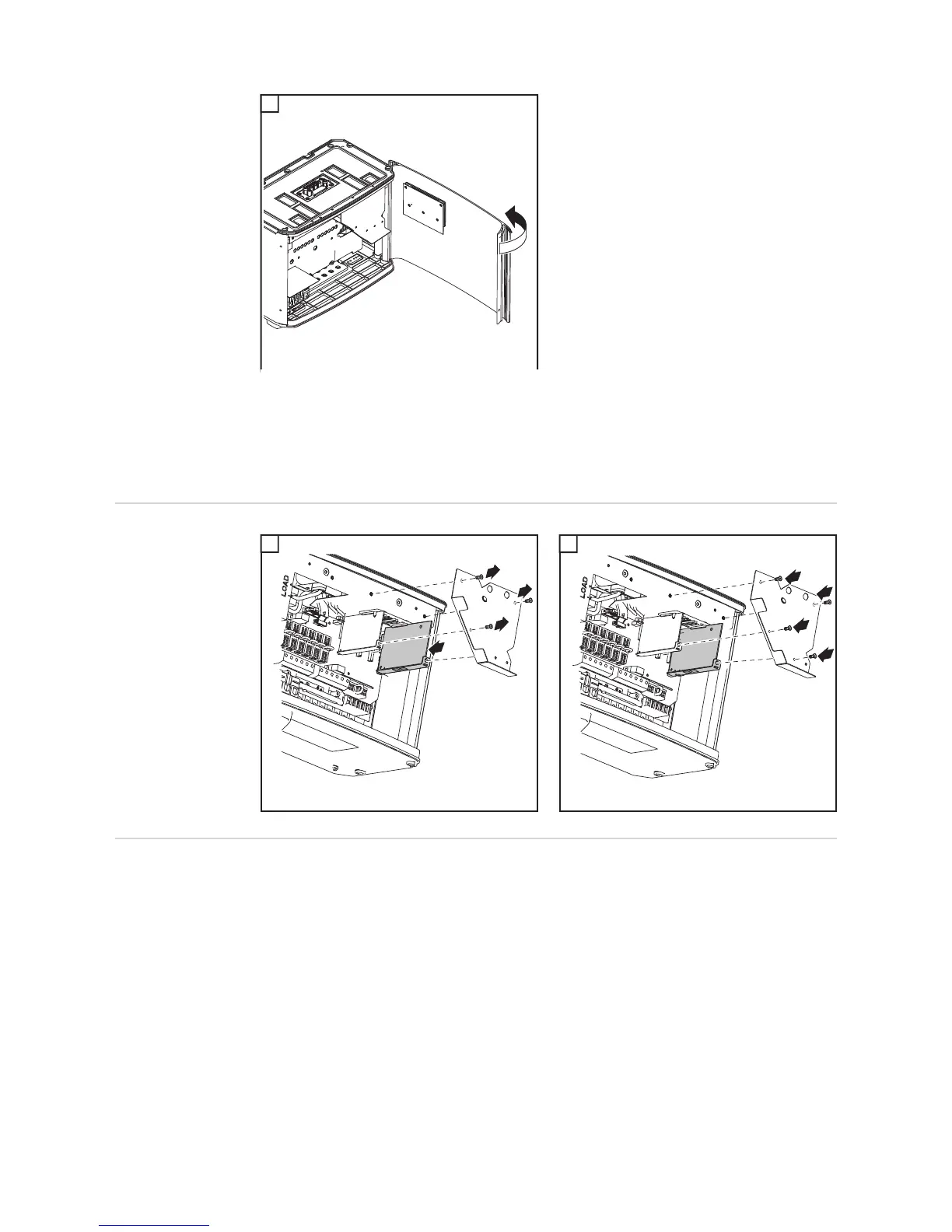

Inserting option
cards into the in-
verter
1 2
Termination plug
when networking
several DATCOM
components
1
3
IMPORTANT! The plastic dividers are used to separate the data communication wires
from the AC and DC wires:
- Data communication wires must be laid above the plastic dividers
- AC and DC wires are laid under the plastic dividers
Make sure that the plastic dividers are present.
4
1
3
2
1
1
3
4
2
2
IMPORTANT! When networking several DATCOM components, a termination plug must
be placed on each free IN and/or OUT connection of a DATCOM component.
