27
EN-US

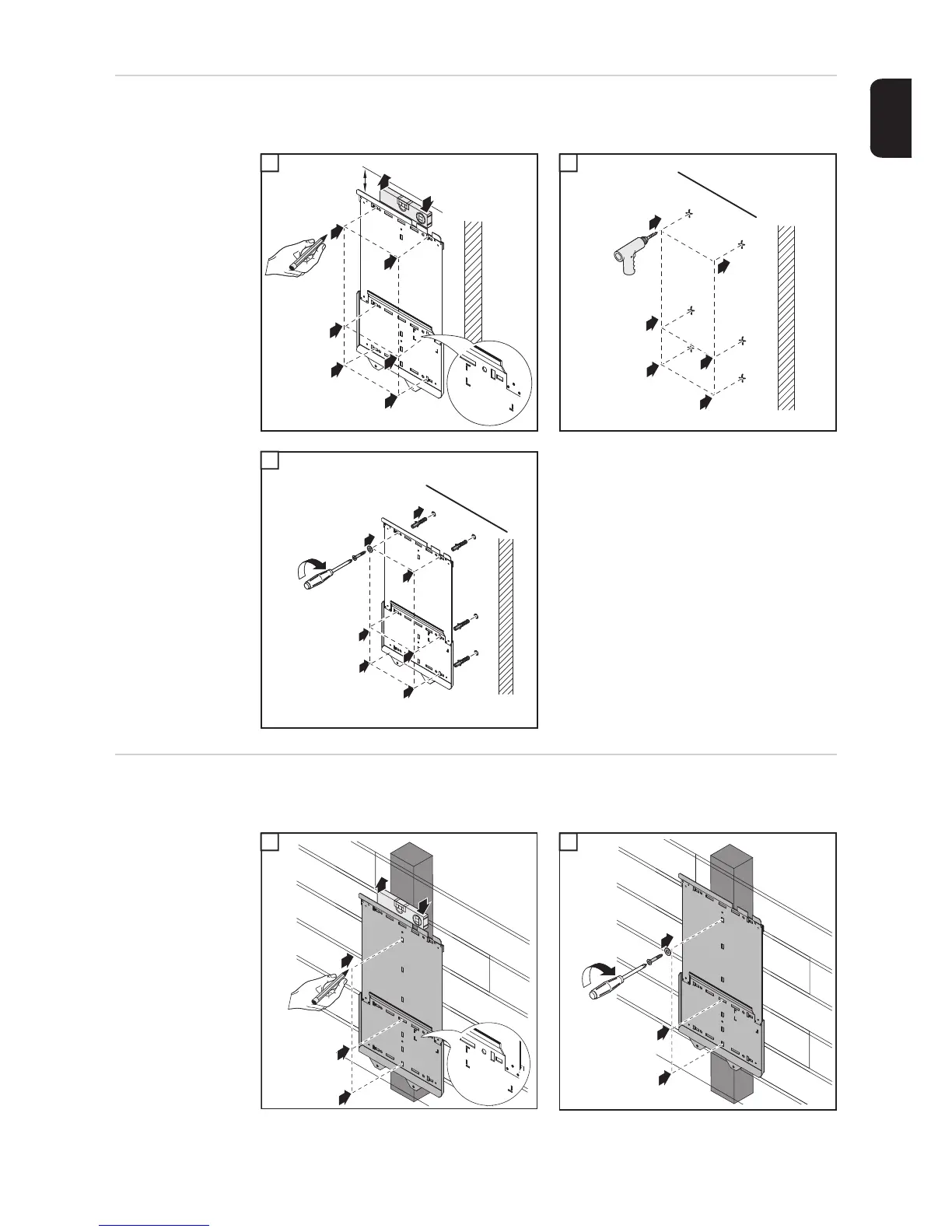

Attaching the wall
bracket to a con-
crete or brick wall
1 2
3
Attaching the wall
bracket to a
wooden wall
1 2
IMPORTANT! The cut out segment marked (*) represents the placement of the inverter
display. Use this to ensure a comfortable display height for easy reading.
min. 50 mm
min. 2 in.
2
1
1
7
3
5
4
6
(*)
1
22
3
4
1
6
5
2
2
6 x
4
6
7
1
5
23
3
IMPORTANT! The cut out segment marked (*) represents the placement of the inverter
display. Use this to ensure a comfortable display height for easy reading.
9
1
1
2
3
4
(*)
1
9
1
2
5
2
