Connecting the inverter to the public grid (AC)
Overview of avail-
able grids

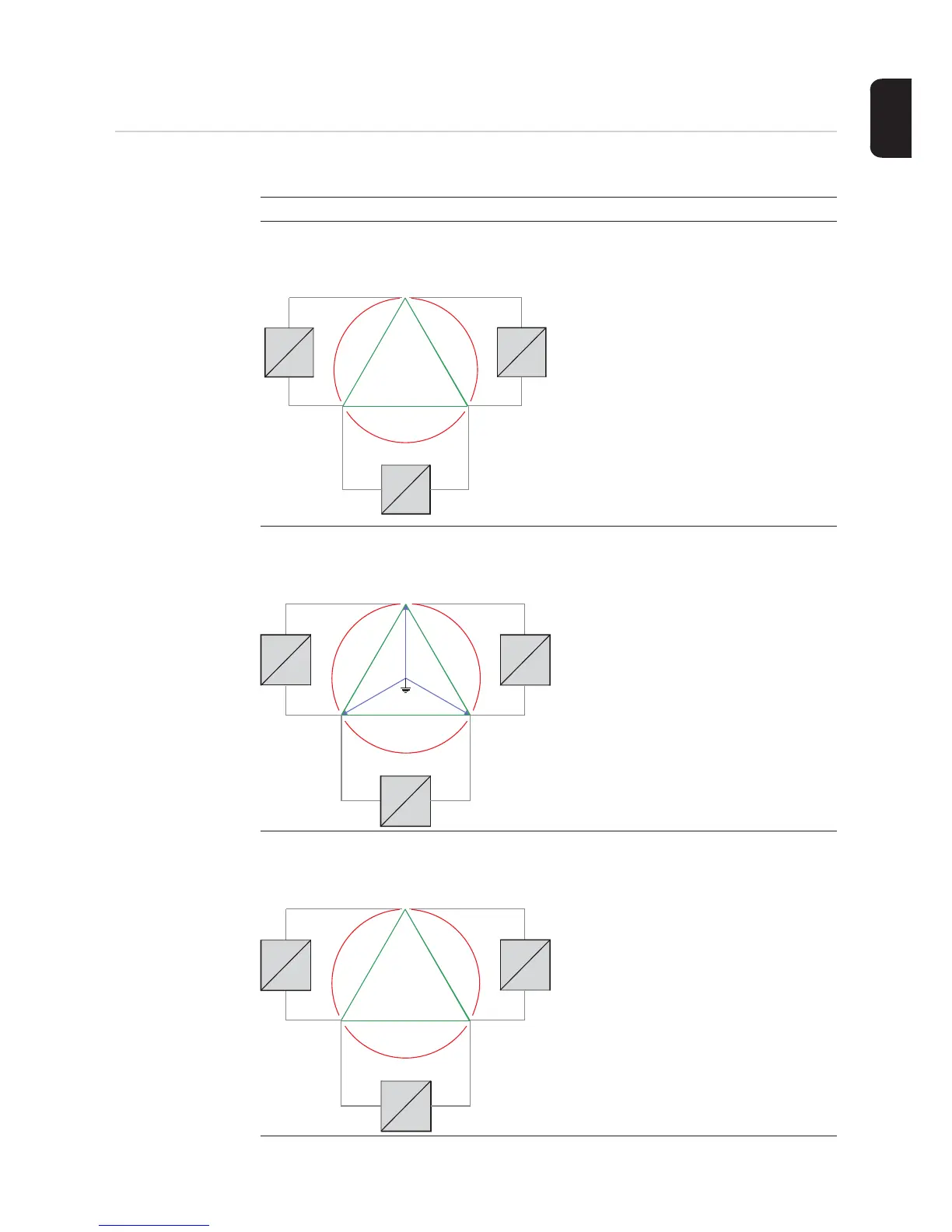

Inverters can be connected to the following grids:
Grid Inverter
208 V Delta,
No neutral conductor
Fronius IG Plus 3.0-1
Fronius IG Plus 3.8-1
Fronius IG Plus 5.0-1
Fronius IG Plus 6.0-1
Fronius IG Plus 7.5-1
Fronius IG Plus 10.0-1
Fronius IG Plus 10.0-3
Fronius IG Plus 11.4-1
Fronius IG Plus 11.4-3
208 V Delta: 120 V WYE,
Neutral conductor available
Fronius IG Plus 3.0-1
Fronius IG Plus 3.8-1
Fronius IG Plus 5.0-1
Fronius IG Plus 6.0-1
Fronius IG Plus 7.5-1
Fronius IG Plus 10.0-1
Gronius IG Plus 10.0-3
Fronius IG Plus 11.4-1
Fronius IG Plus 11.4-3
240 V Delta,
No neutral conductor
Fronius IG Plus 3.0-1
Fronius IG Plus 3.8-1
Fronius IG Plus 5.0-1
Fronius IG Plus 6.0-1
Fronius IG Plus 7.5-1
Fronius IG Plus 10.0-1
Fronius IG Plus 10.0-3
Fronius IG Plus 11.4-1
Fronius IG Plus 11.4-3
120 °
120 °
12 0 °
208 V
208 V
208 V
L1
L2L3
=
~
=
~
=
~
120 V
120 V
120 V
120 °
12 0 °
120 °
208 V
208 V
208 V
L1
L2
N
L3
=
~
=
~
=
~
240 V
240 V
240 V
120 °
120 °
12 0 °
L1
L2L3
=
~
=
~
=
~

Fronius IG Plus A 3.0-1 UNI Specifications

General

AC nominal output	3000 W
Max. apparent AC power	3000 VA
Max. output current	13 A
AC grid frequency	50 / 60 Hz
THD	<3%
Max. DC voltage	500 V
Number of MPP trackers	1
AC voltage range	183 V - 264 V
DC input voltage range	150 - 450 V
Cooling	Convection
