Fronius IG Plus A 3.0-1 UNI User Manual

34
240 V: 120 V Stinger,
Neutral conductor available
Fronius IG Plus 3.0-1
Fronius IG Plus 3.8-1
Fronius IG Plus 5.0-1
Fronius IG Plus 6.0-1
Fronius IG Plus 7.5-1
Fronius IG Plus 10.0-1
Fronius IG Plus 11.4-1
240 V: 120 V Split phase,
Neutral conductor available
Fronius IG Plus 3.0-1
Fronius IG Plus 3.8-1
Fronius IG Plus 5.0-1
Fronius IG Plus 6.0-1
Fronius IG Plus 7.5-1
Fronius IG Plus 10.0-1
Fronius IG Plus 11.4-1
480 V Delta: 277 V WYE,
Neutral conductor available, is used as an
active conductor
Fronius IG Plus 3.0-1
Fronius IG Plus 3.8-1
Fronius IG Plus 5.0-1
Fronius IG Plus 6.0-1
Fronius IG Plus 7.5-1
Fronius IG Plus 10.0-1
Fronius IG Plus 11.4-1
Fronius IG Plus 12.0-3
Grid Inverter

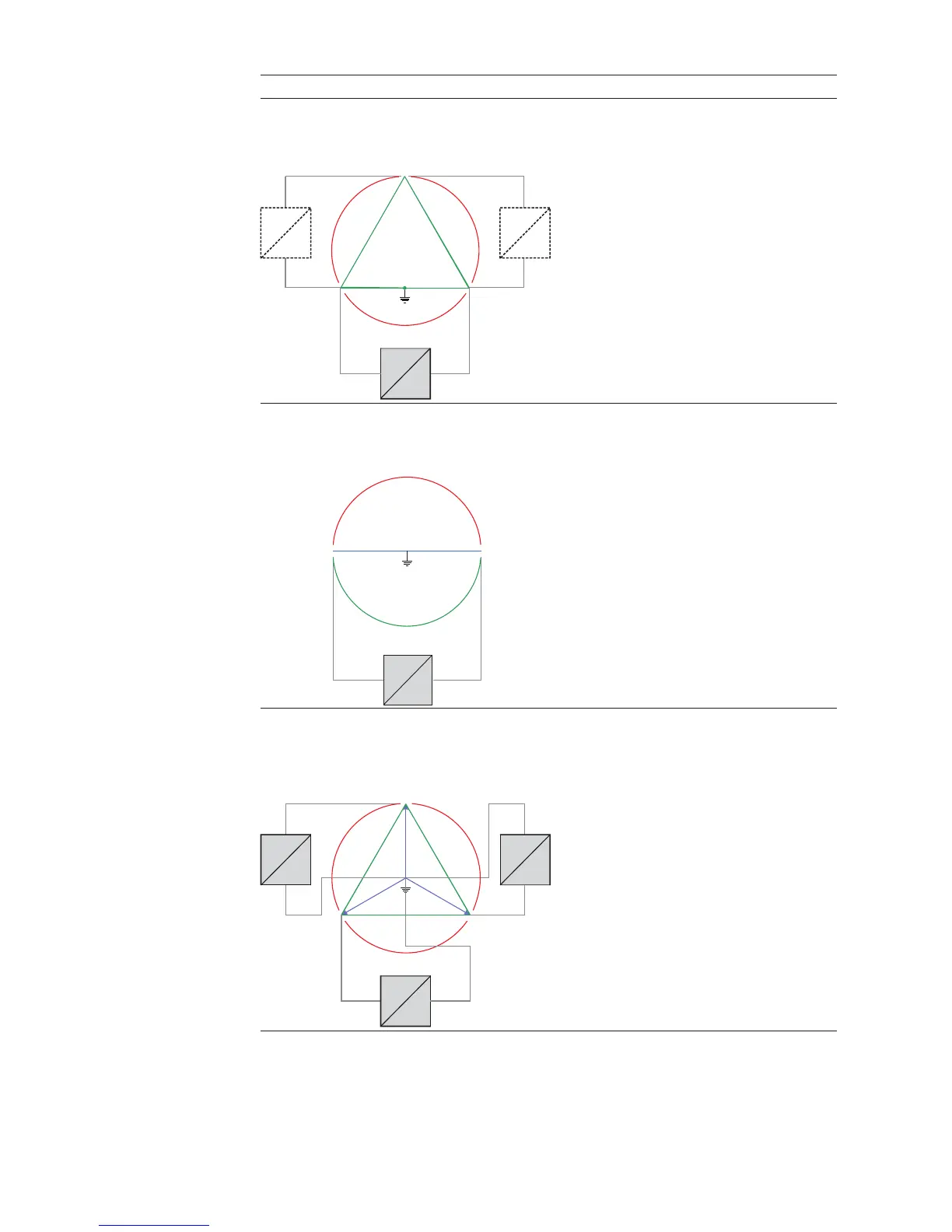

240 V
240 V
120 °
120 °
12 0 °
120 V120 V
L3
L1
N
L2
=
~
=
~
=
~
180 °
120 V 120 V
240 V
2L1L
N
=
~
277 V
277 V
277 V
120 °
12 0 °
120 °
480 V
480V
480 V
L1
L2
N
L3
=
~
=
~
=
~

Fronius IG Plus A 3.0-1 UNI Specifications

General

AC nominal output	3000 W
Max. apparent AC power	3000 VA
Max. output current	13 A
AC grid frequency	50 / 60 Hz
THD	<3%
Max. DC voltage	500 V
Number of MPP trackers	1
AC voltage range	183 V - 264 V
DC input voltage range	150 - 450 V
Cooling	Convection
