Fronius IG Plus A 3.0-1 UNI User Manual

116
Status Codes on
inverters with
Several Power
Stage Sets
A special status diagnostic is run if an error occurs in an inverter with several power stage
sets.
It is also possible to call up status codes even if there is no actual error in existence. This
form of status polling may be found in the section "The Setup Menu."

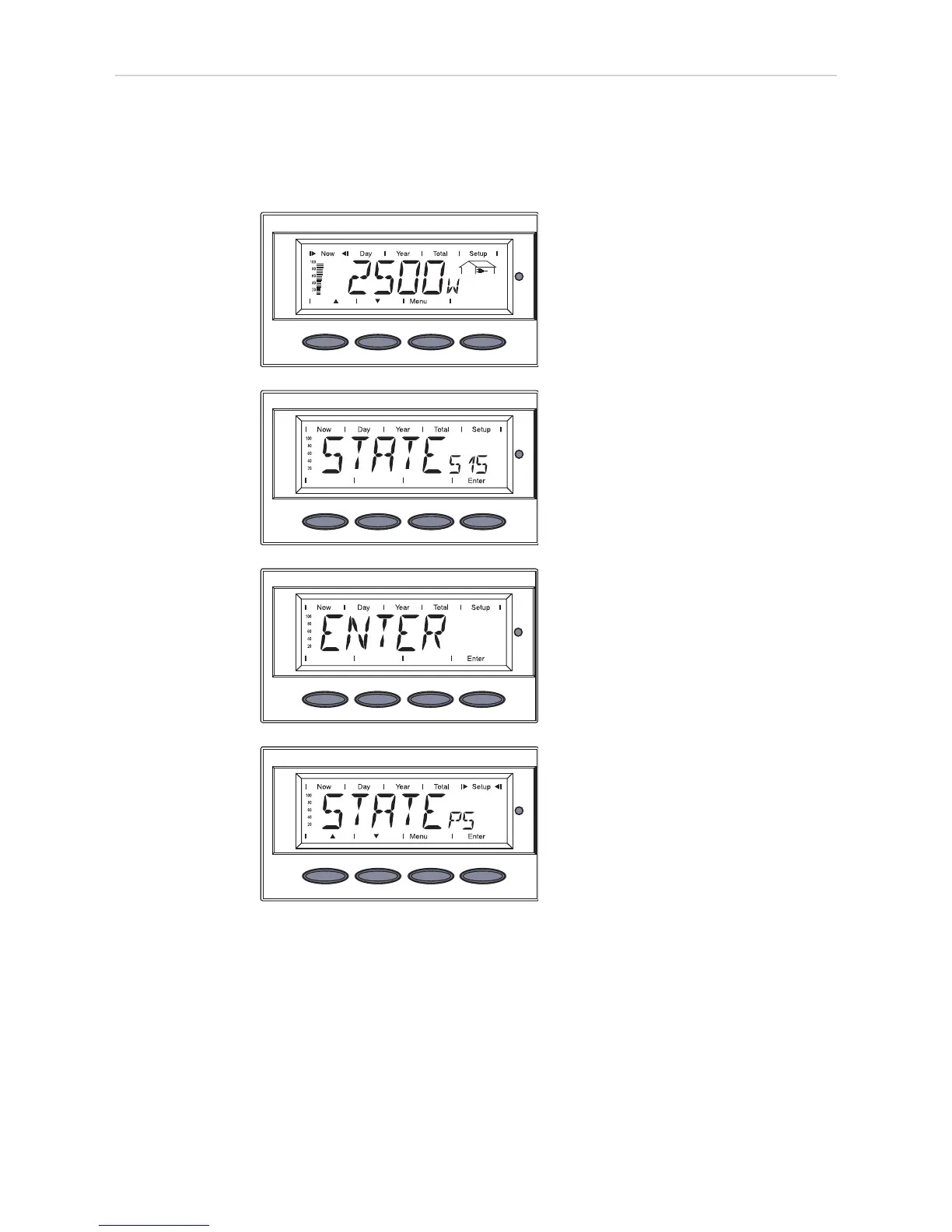

Display during normal operation
When there is an error in one of the power
stage sets, the display flashes between
"STATE" and the corresponding status
code
(e.g., "STATE 515")
and
"ENTER"
- Press the "Enter" key twice
- The status display of the power stage
sets "STATE PS" appears
- Press the "Enter" key

Fronius IG Plus A 3.0-1 UNI Specifications

General

AC nominal output	3000 W
Max. apparent AC power	3000 VA
Max. output current	13 A
AC grid frequency	50 / 60 Hz
THD	<3%
Max. DC voltage	500 V
Number of MPP trackers	1
AC voltage range	183 V - 264 V
DC input voltage range	150 - 450 V
Cooling	Convection
