Fronius IG Plus A 3.0-1 UNI User Manual

145
EN-US
Preparation
1 2
3
Resetting the in-
verter after a de-
tected arc using
the switch on the
Fronius Arc
Blocker plug-in
card

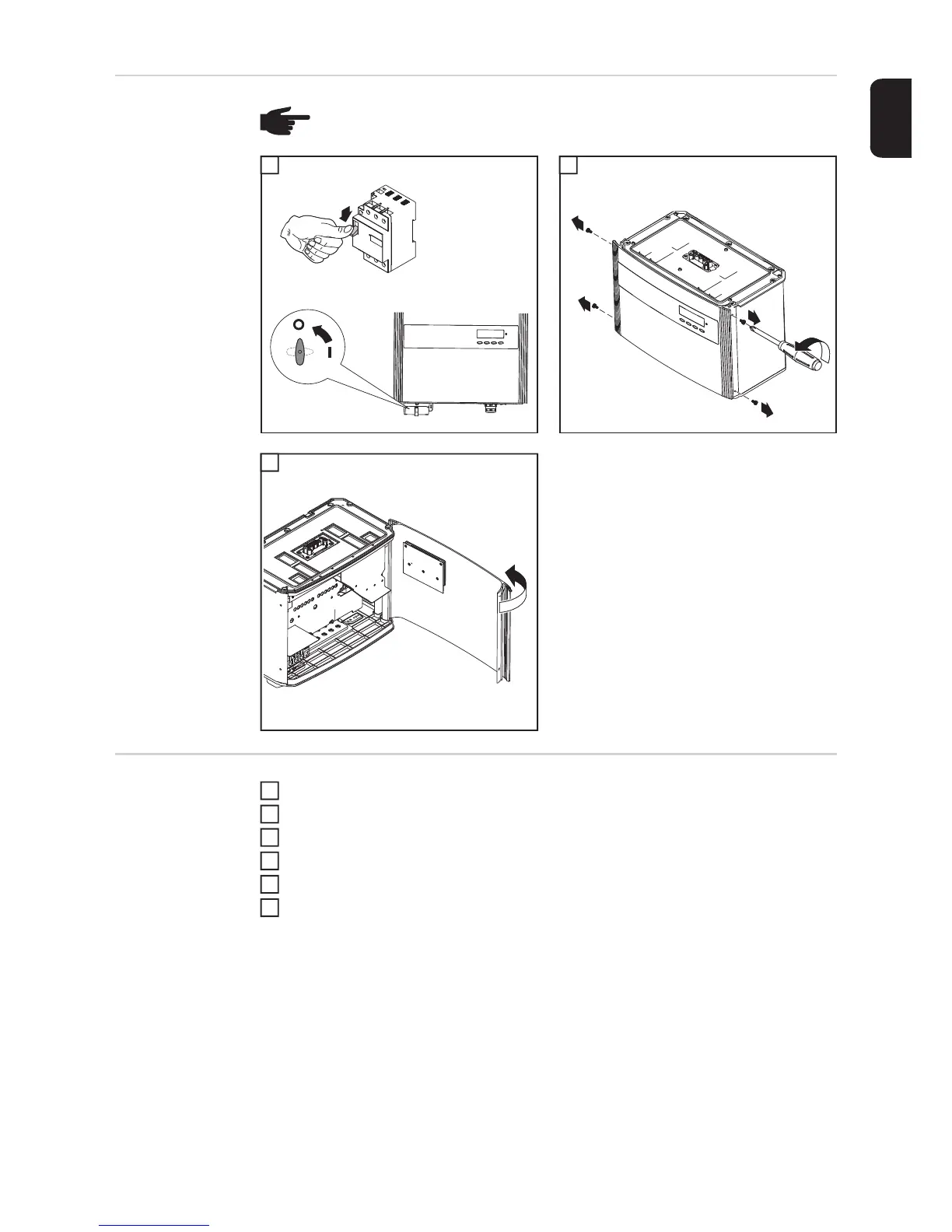

Switch the “Resume“ switch at the Fronius Arc Blocker plug-in card into position - R -
Close the inverter
Reconnect to AC-side for appr. 10 seconds
Disconnect AC-side
Open the inverter
Switch back the “Resume“ switch to position - O - at the Fronius Arc Blocker plug-in
card
NOTE! Disconnect AC and DC supply from the inverter.
off
on
1
2
OFF
AC
OFF
ON
1
1
4
2
3
2
1
3
1
2
3
4
5
6

Fronius IG Plus A 3.0-1 UNI Specifications

General

AC nominal output	3000 W
Max. apparent AC power	3000 VA
Max. output current	13 A
AC grid frequency	50 / 60 Hz
THD	<3%
Max. DC voltage	500 V
Number of MPP trackers	1
AC voltage range	183 V - 264 V
DC input voltage range	150 - 450 V
Cooling	Convection
