Fronius IG Plus A 3.0-1 UNI User Manual

54
1

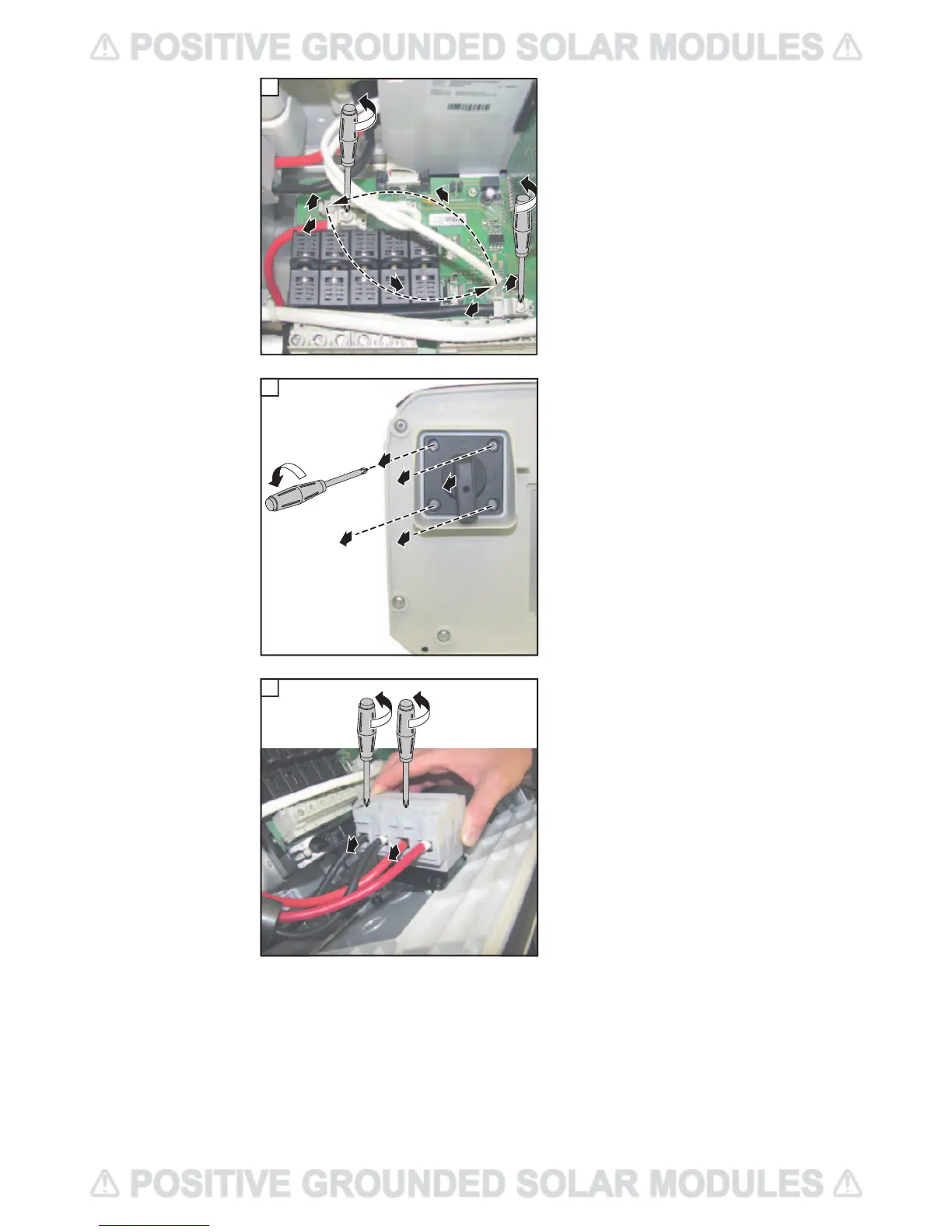

- Disconnect the DC voltage measuring
and reverse polarity (1-2-3)
- Disconnect the DC+ cable from the
DC+ terminal (4-5)
- Disconnect the DC- cable from the DC-
terminal (6-7)
1
- Remove 4 screws (1-2-3-4)
- Remove switch knob and switch plate
(5)
1
- Disconnect DC- cable from the DC
main swich (1-2)
- Disconnect DC+ cable from the DC
main switch (3-4)
- Unthread both cables from the inverter
3
7
2
1
5
4
6
3
5
1
2
3 4
5
6
2
4
1 3
7

Fronius IG Plus A 3.0-1 UNI Specifications

General

AC nominal output	3000 W
Max. apparent AC power	3000 VA
Max. output current	13 A
AC grid frequency	50 / 60 Hz
THD	<3%
Max. DC voltage	500 V
Number of MPP trackers	1
AC voltage range	183 V - 264 V
DC input voltage range	150 - 450 V
Cooling	Convection
