Fronius IG Plus A 3.0-1 UNI User Manual

62
1

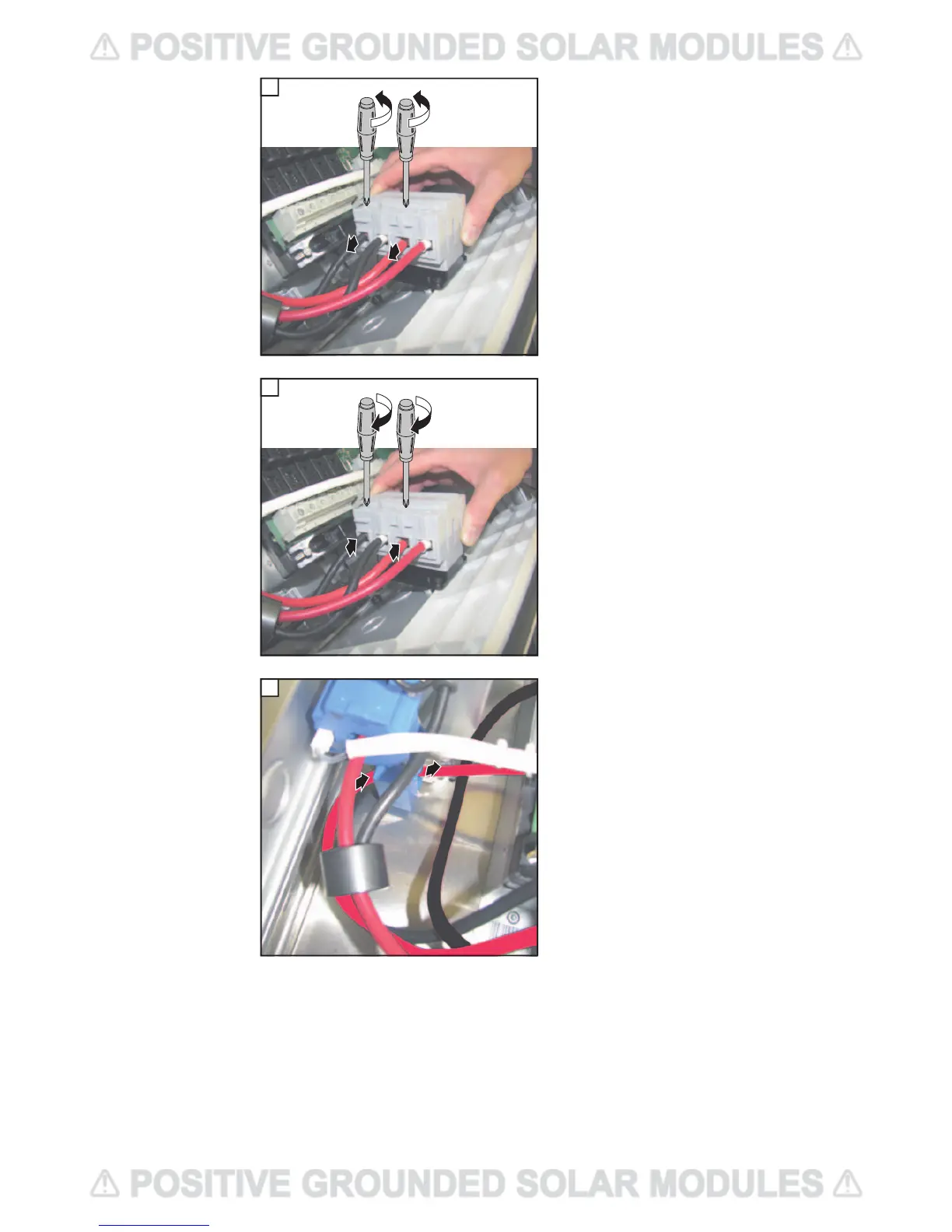

- Disconnect DC- cable from the DC
main swich (1-2)
- Disconnect DC+ cable from the DC
main switch (3-4)
- Unthread both cables from the inverter
1
* new cables delivered with the inver-
ter:
the red cable is longer than the
black cable.
- Connect the black cable to the DC
main switch (1-2)
- Connect the red cable to the DC main
switch (3-4)
1
- Lead the new red cable from the DC
main switch through the current sensor
2
4
1 3
7
2
5
2
5
*
*
8
1
2
*
*
9

Fronius IG Plus A 3.0-1 UNI Specifications

General

AC nominal output	3000 W
Max. apparent AC power	3000 VA
Max. output current	13 A
AC grid frequency	50 / 60 Hz
THD	<3%
Max. DC voltage	500 V
Number of MPP trackers	1
AC voltage range	183 V - 264 V
DC input voltage range	150 - 450 V
Cooling	Convection
