Product Overview
2

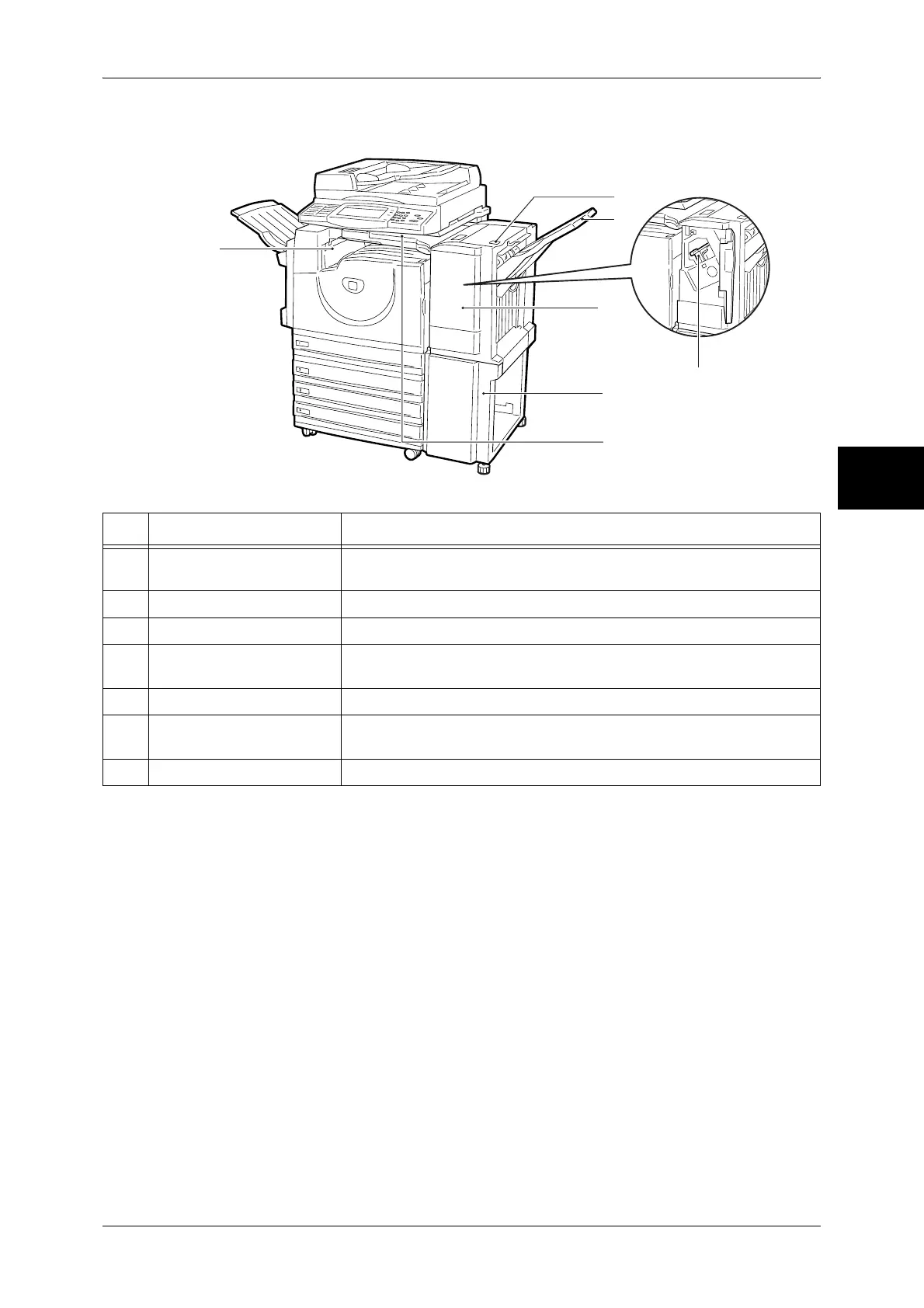

îš„B Finisher
Note • The B Finisher is optional. In text descriptions, the B Finisher is abbreviated as
"finisher".
No. Component Function
1 Finisher top cover button Press this button to open the upper cover of the finisher when clearing
paper jams.
2 Finisher tray Stapled documents are delivered.
3 Front cover Open this cover to clear staple jams, or replace staples.
4 Staple cartridge Contains staples. Pull out the cartridge to clear staple jams, or replace
staples.
5 Stand Connects the machine and the finisher.
6 Finisher transport cover Open this cover to clear paper jams. Make sure to move the finisher to
the right before opening the cover.
7 Center tray exit Open this cover to clear paper jams, or replace staples.
6
7
2
5
4
3
1
