27
2 Product Overview
This machine is not simply a conventional copier but a digital device capable of
copying, faxing, printing and scanning, depending on the configuration.
The touch screens shown in this manual are from a fully configured machine to cover
all the features.
The content of the touch screens may vary slightly depending on System Administrator
settings and machine configuration. The button names and icons on the control panel
also vary depending on machine configuration. However, machine features described
here remain the same.

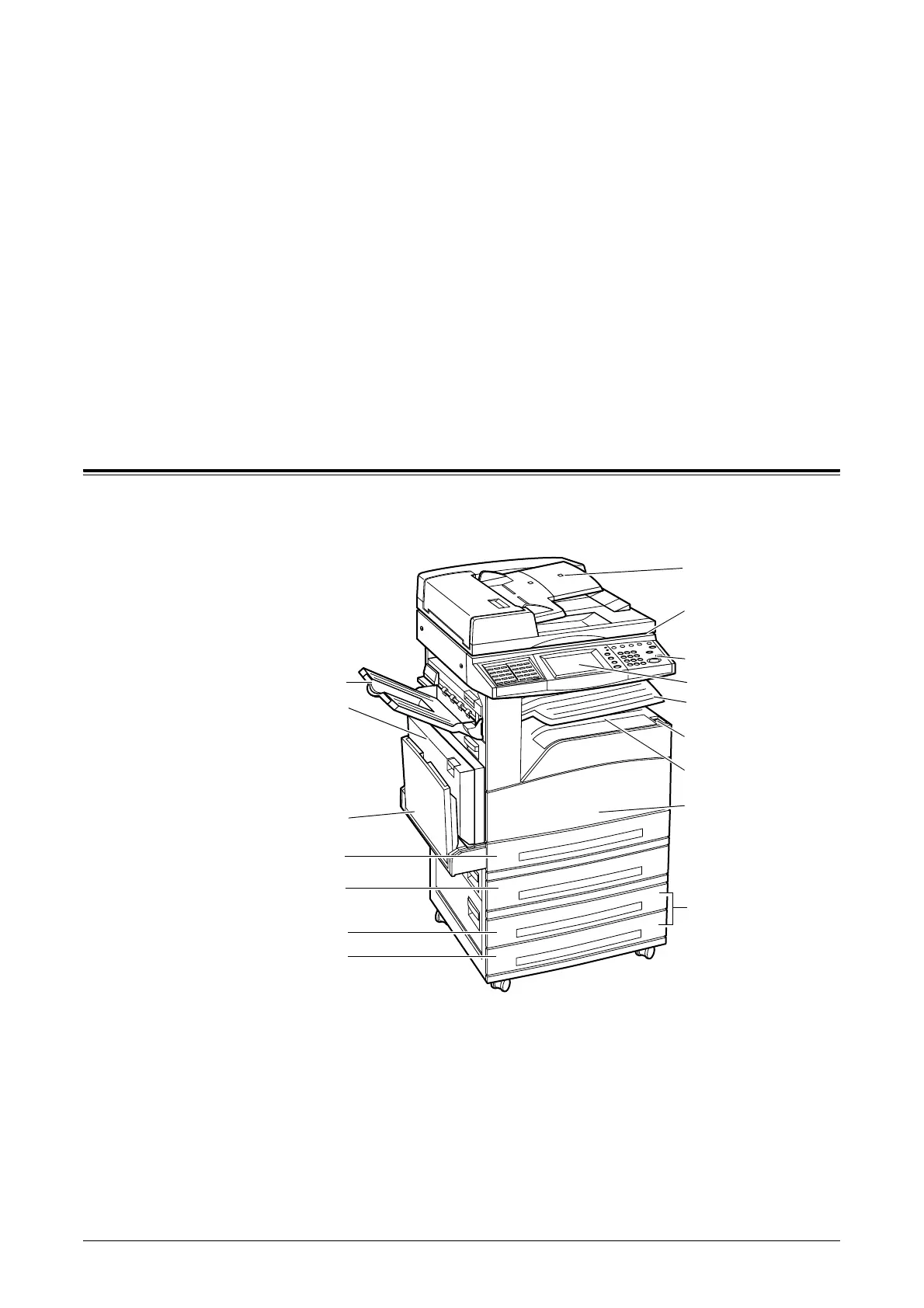

Machine Components
The following diagrams show the standard and optional components of the machine.
Configuration may vary depending on the model.
NOTE: Depending on the configuration, the Document Glass Cover is attached
instead of the Document Feeder. Two optional paper trays can be attached.
NOTE: If Center Output Tray - Upper is not installed, the Center Output Tray - Lower
is simply referred to as Center Output Tray.
Document Feeder
Document Glass
(under the Document
Feeder)
Control Panel
Touch Screen
On / Off Switch
Center Output Tray - Lower
Front Cover
Tray 5 (Bypass Tray)
Duplex Module (Optional)
Two Tray Module
(Optional)
Tray 3
Tray 4
Side Tray (Optional)
Center Output Tray - Upper
(Optional)
Tray 2
Tray 1
To Next Page
