Fuji Xerox DocuPrint CM505 da Administrator's Guide

3 Maintenance
70
Maintenance
3

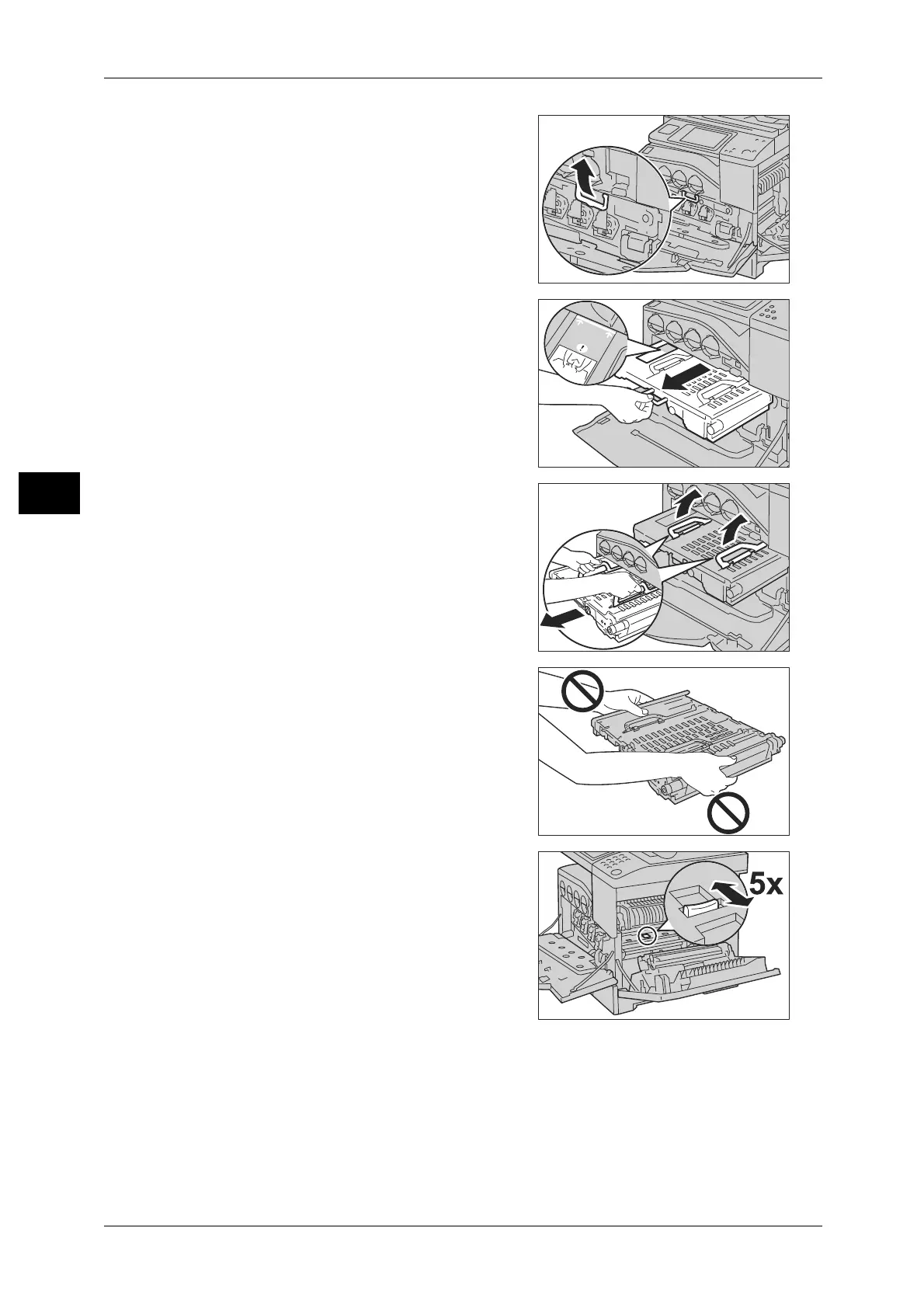

6 Hold the handle located at the front of the
transfer belt unit.
7 Pull out the handle of the transfer belt unit to
the front until it stops.
8 While holding the handles on both sides of
the transfer belt unit, remove the unit from
the machine.
Important • Do not touch any areas of the transfer belt
unit other than the handles.
9 Slide the blue tab back-and-forth five times
to clean the conductivity temperature depth
sensor.
Note • Be careful not to touch the fusing unit. It
can burn your fingers.
