183
PRIMERGY TX120 User’s Guide
Installing hardware options
7

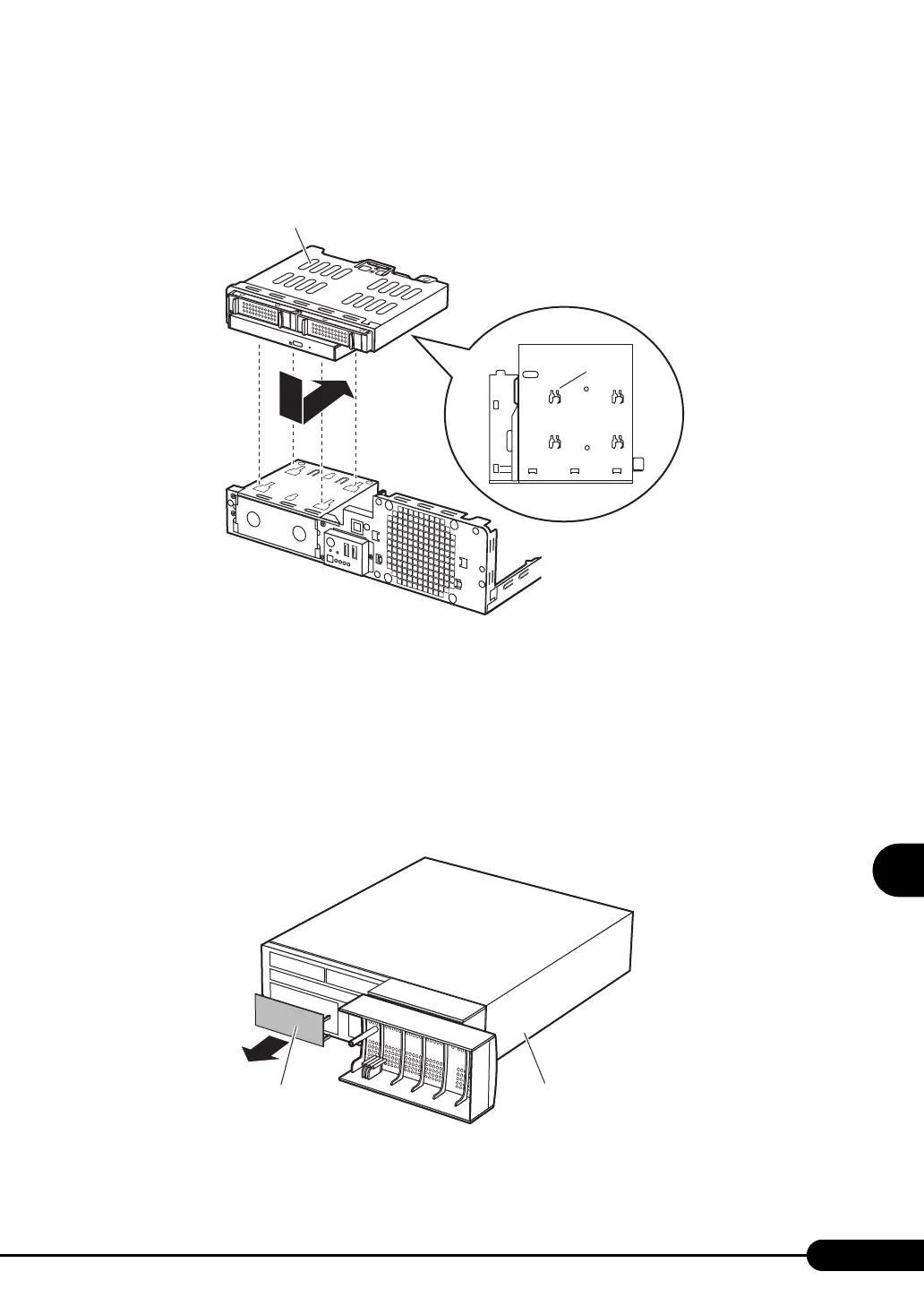

9 Install the internal hard disk unit bay / internal CD-ROM drive bay.
Put the projections on the bottom face of the internal hard disk unit bay / internal CD-ROM drive
bay to the holes of the optional bay, and slide it to be fixed.
10 Connect the cables which are removed in step 4 to the internal hard disk unit /
internal CD-ROM drive unit.
Be sure to connect cables to the same connector.
11 Attach the reinforcing bar.
12 Remove the optional bay panel from the cover of the server.
Take off the tab inside of the panel to remove it.
13 Attach the cover.
Internal hard disk drive bay / internal CD-ROM drive bay
䌛the bottom face䌝
Projection
Cover of the serve
Optional bay panel
To Next Page
