182
Chapter 7 Installing Hardware Options

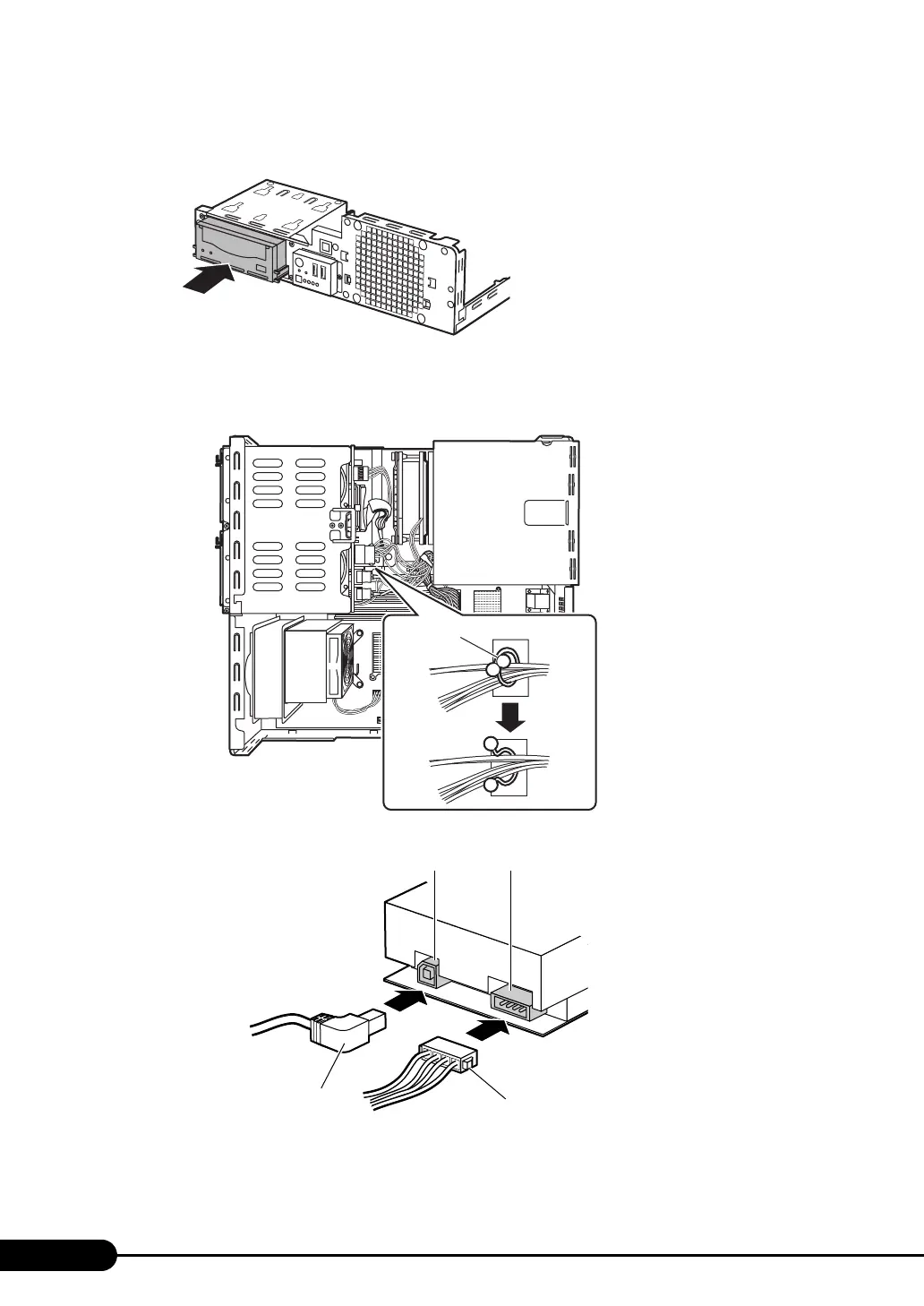

7 Install the internal DAT72 unit in the optional bay.
8 Connect a USB cable and a power cable to the internal options.
1. The cables are bound with clips on the server. Open the clips.
2. Connect a USB cable and a power cable to the rear side of the internal DAT unit.
3. Connect the other side of the USB cable to the USB connector on the baseboard.
For the location of the USB connector on the baseboard, refer to "1.3.4 Baseboard"
(Jpg.28).
Clip
USB cable
[the rear side of
the DAT72 unit]
USB connector
Power connecto
r
Power cable
