Fujitsu Primergy TX120 - Page 187

187
PRIMERGY TX120 User’s Guide
Installing hardware options
7

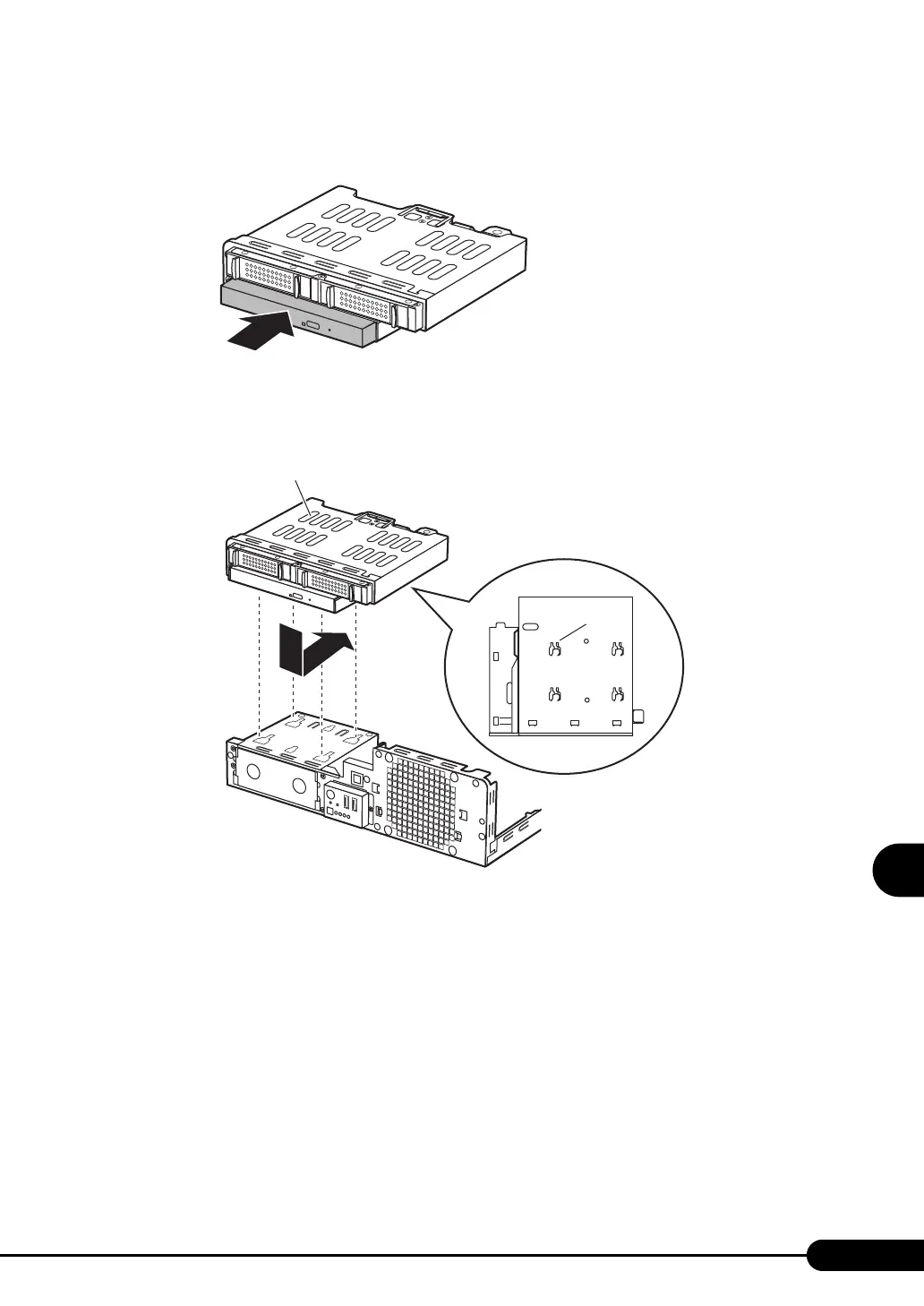

7 Install the DVD-RAM unit.
Push the unit into the server. It locks automatically.
8 Install the internal hard disk unit bay / internal CD-ROM drive bay.
Put the projections on the bottom face of the internal hard disk unit bay / internal CD-ROM drive
bay to the holes of the optional bay, and slide it to be fixed.
9 Connect the cables which are removed in step 3 to the internal hard disk drive
bay / internal CD-ROM drive bay (DVD-RAM unit).
Be sure to connect cables to the same connector.
10 Attach the reinforcing bar.
11 Attach the cover.
Internal hard disk drive bay / internal CD-ROM drive bay
䌛the bottom face䌝
Projection
