Spectra Alerts: Alert Indications
Alert Indications
Active Alerts
When the system detects an alert condition, visual and audible indications are
provided. (There is no printed indication of the alert.) The alert level, indicated by
asterisks, flashes and displays in inverse video between the FHR1 and FHR2 areas;
in addition, the associated FHR numerics flash. The audio indication is a pattern of
beeps representing the alert level:
Level 1: Beep___Beep___Beep___ . . .
Level 2: BeepBeep___BeepBeep___BeepBeep___ . . .
Level 3: BeepBeepBeep___BeepBeepBeep___BeepBeepBeep___ . . .
“Beep” represents audio tone sets and “___” is the pause between sets.

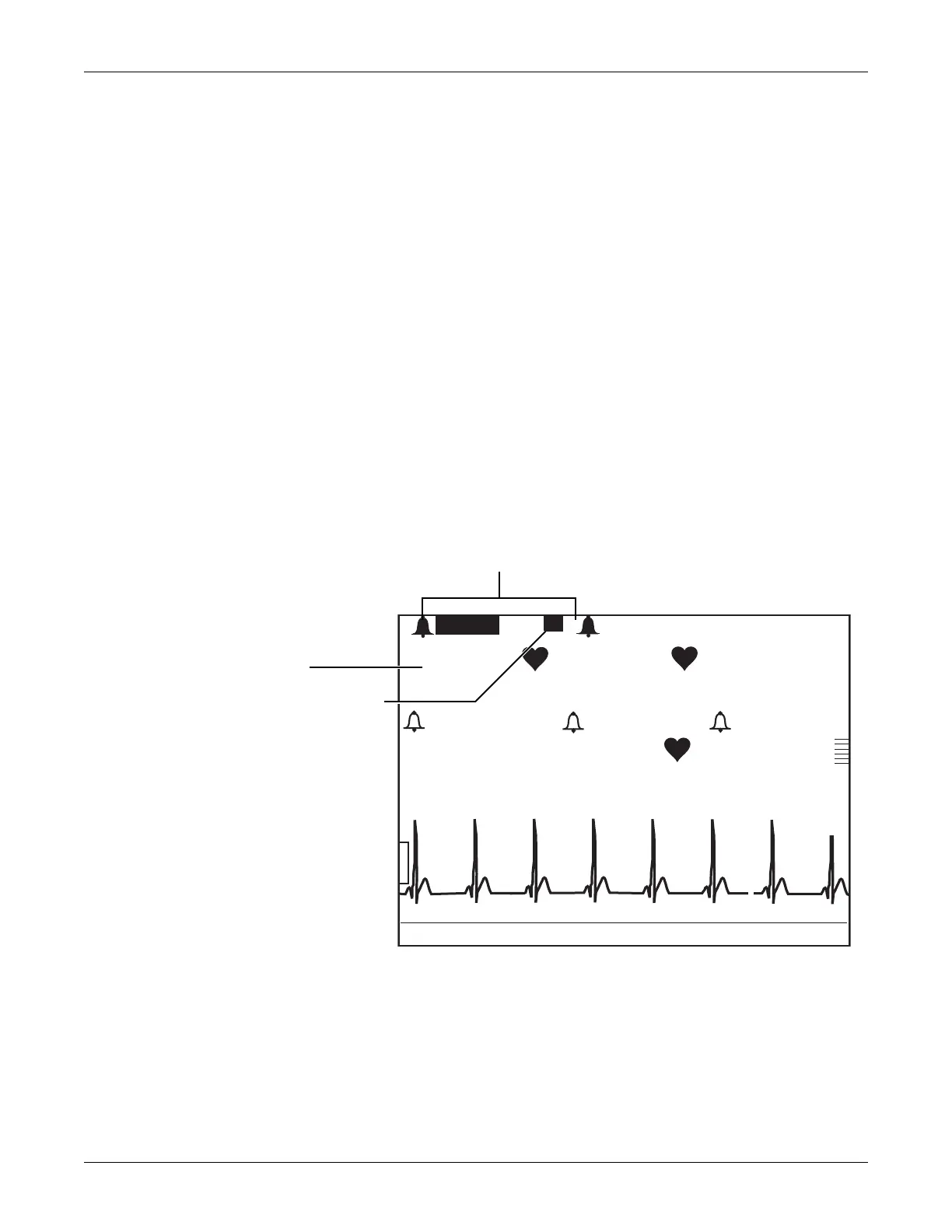

The following figure provides an example of an active alert—level one
decelerations.
Example of a Level One Decelerations Alert
Silencing Alerts
Press the Alarm Silence button to cancel the audio. The alert level stops flashing and
displays in normal video; however, the associated FHR numerics continue to flash.
For an active, silenced alert, the visual indications remain present until the condition
is resolved or the alert is reset. (Refer to “Resetting Alerts” on page C-12.)
138
12
87
98%
MECG
MSpO2
NIBP
15:52:58
US
FECG
TOCO
Print Freeze Alarms Setup VSHX
25 mm/s
II 2x
MECG
3 UC/10
147
*
For an active alert, the FHR numerics
flash, indicating which FHR is associated
with the alert. For a silenced alert, the
numerics continue to flash until the
condition is resolved.
For an active, unsilenced alert, the alert
level flashes and displays in inverse
video. After the alert is silenced, the alert
level stops flashing and displays in
normal video until the alert is reset or the
condition is resolved.
Alert enabled icon.
