Controls, Indicators, and Connectors: Rear Panel Description
Rear Panel Description
Monitor Rear Panel Connectors (Standard and Optional)
IMPORTANT: The Fetal Acoustic Stimulator and Remote Event
Marker connectors are identical in size and shape. Be sure you connect to
the proper connector to ensure accurate information.
120
240
CAUTION: FEDERAL
LAW RESTRICTS THIS
DEVICE TO SALE BY
OR ON THE ORDER OF
A PHYSICIAN.
J
1
03
J
1
0
2
J
1
09
R
S
2
3
2
C
J
11
0
R
S
2
3
2
C
J
11
1
R
S
2
3
2
C
!
J
1
0
1
J
1
04
PUSH
H
!
!
!
1
00
-12
0
V ~
50
-
60
HZ 1
00W
Munzin
g
er Str
a
ß
e 3-5; D-79111 Freiburg German
y
Euro
p
ean Re
p
resentativ
e
GE Medical S
y
stems In
c
0086
CANADIAN PATS. 1
,
057
,
360 1
,
214
,
14
3
U.S. PATS. 3
,
982
,
528 4
,
533
,
926 4
,
573
,
47
9
!
J112
A
B
C
D
E
F
G
H
I
J
K
L
M
N

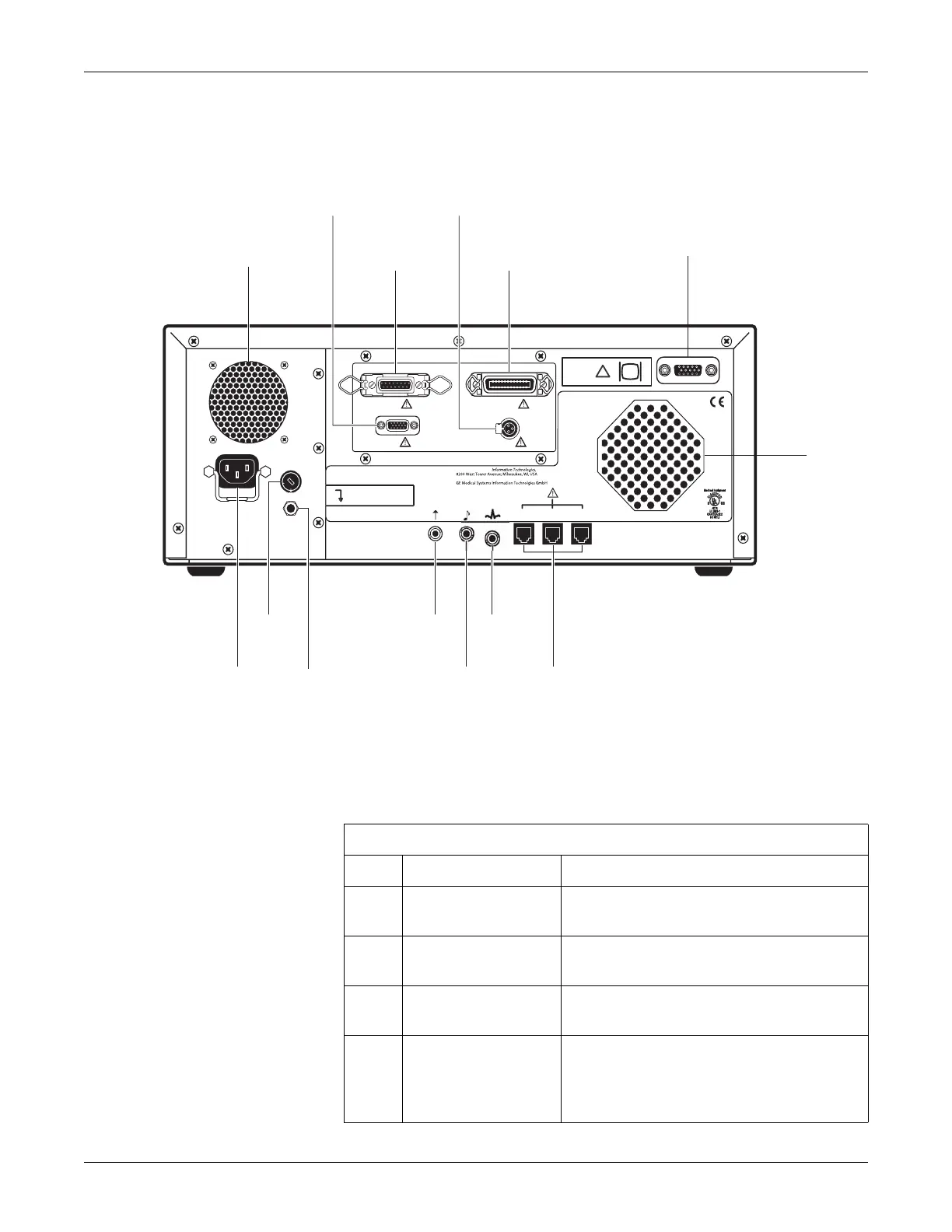

250cx Series Rear Panel (Standard and Optional Features)
Name Description
A
Vent Provides ventilation for the monitor’s internal
circuitry.
B
J101 Telemetry
Connector
Connector for Corometrics telemetry system
interface.
C
J103 Data Entry
Connector
Connector for data entry system interface.
D
J104 Nurse Call
Connector
Connector for standard Nurse Call System
interface. The connector’s maximum output is 50
Vdc at 100 mA; the maximum on resistance is
0.5 Ω.

GE Corometrics 250cx Series Specifications

General

Type	Fetal Monitor
Model	250cx Series
Manufacturer	GE Healthcare
Fetal Heart Rate Monitoring	Yes
Ultrasound Frequency	1 MHz
Recorder Speed	1, 2, 3 cm/min
Maternal Parameters	ECG, NIBP, SpO2
FHR Range	30-240 bpm
TOCO Range	0-100
Connectivity	RS-232
Power Source	AC Power
Display	Color LCD
