Controls, Indicators, and Connectors: Softkeys
Dedicated Softkey Area
Softkeys are located at the bottom of each screen, as shown in “Maternal/Fetal
Monitor Display Summary” on page 3-14. Although there are many possible
softkeys which may appear in this area, a maximum of five are shown at a time.

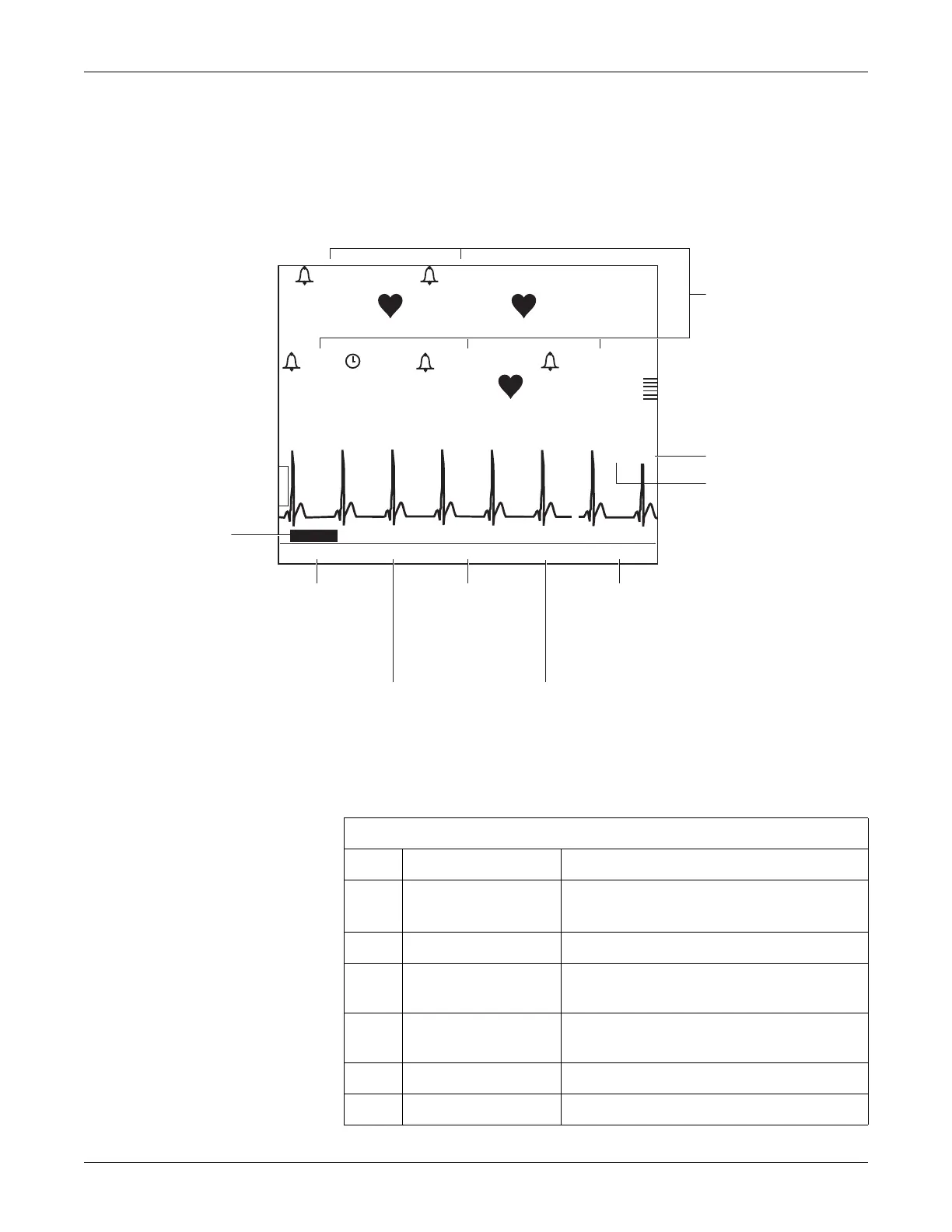

Maternal/Fetal Monitor Display Summary
165
172
30
130/ 85
89
97%
MECG
MSpO2
NIBP
MAP (107)
03:15
09:22:06
US2
US
TOCO
02:15
Print Freeze Alarms Setup VSHX
25 mm/s
II Auto
HBC
MECG 09:21:41 Frozen
A
B
C
I
D
E
F
G
H
Display Summary
Name Description
A
Mode Title Softkeys Selects US, US2, FECG, NIBP, MHR/P, or SpO
2
Setup screens.
B ECG Scale Softkey Selects 0.25x, 0.5x, 1x, 2x, 4x, or Auto.
C
MECG Lead Select
Softkey
Selects Lead I, II, or III.
D
VSHX Softkey Displays maternal Vital Signs History screen. (See
illustration below.)
E Setup Softkey Displays General Setup screen
F Alarms Softkey Displays Master Alarm Setup screen.
