Controls, Indicators, and Connectors: Front Panel Displays
Display Example
From the graphic below, you can determine the following:
Blood pressure is not active as indicated by the absence of numerics.
Maternal pulse oximetry is active by presence of pulse amplitude indicator.
MECG is selected as the heart rates source as indicated by the MECG mode title
softkey—rather than Pulse.
The MECG waveform is displayed at 25 mm/sec, at a size of 2x, with lead II
selected.
Heartbeat coincidence is enabled as indicated by the HBC acronym in the
primary labor parameters area.
All alarms are enabled as indicated by .

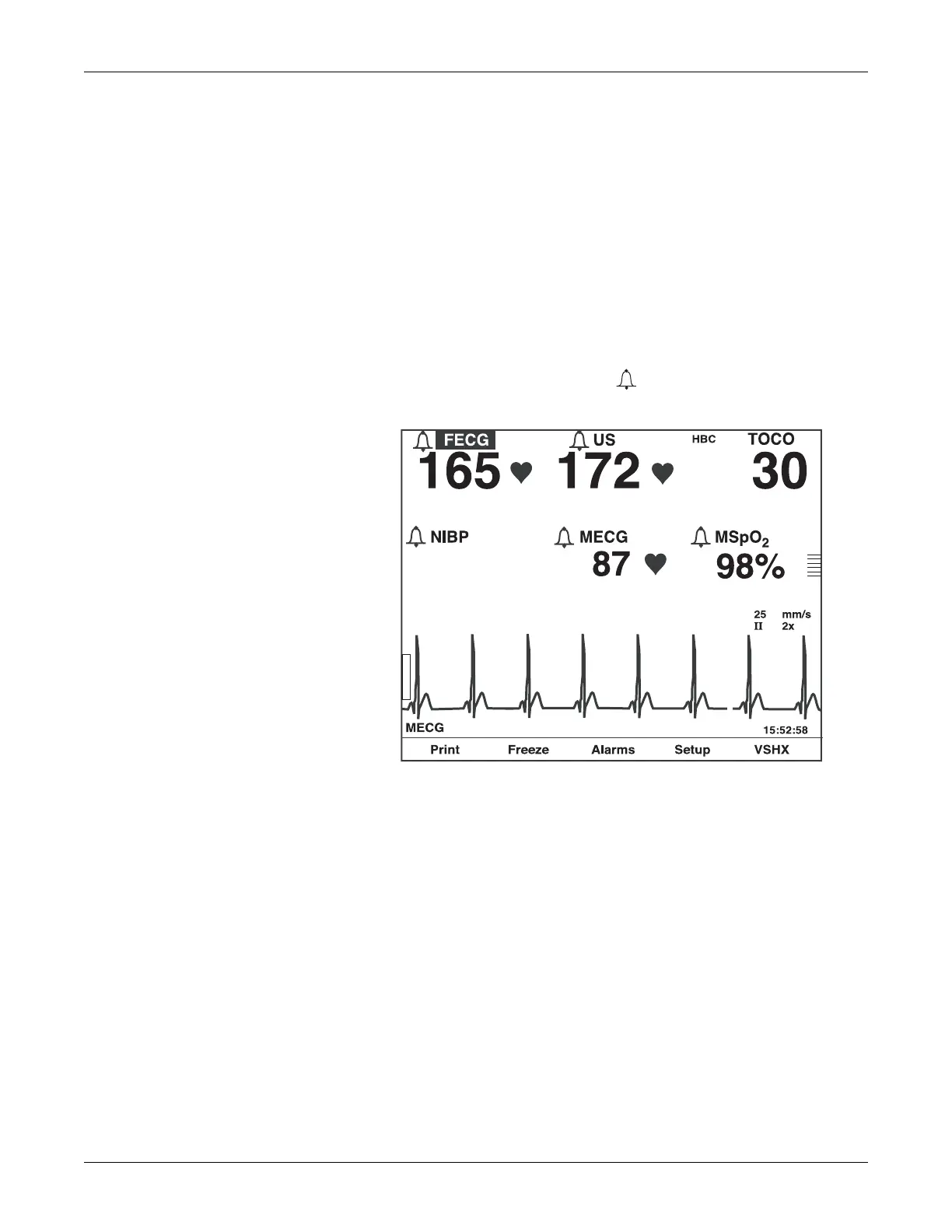

Maternal/Fetal Monitor Display Example
