Controls, Indicators, and Connectors: Primary Labor Parameters
Primary Labor Parameters
The primary labor parameters section displays FHR1, FHR2, and UA data.
FHR Display

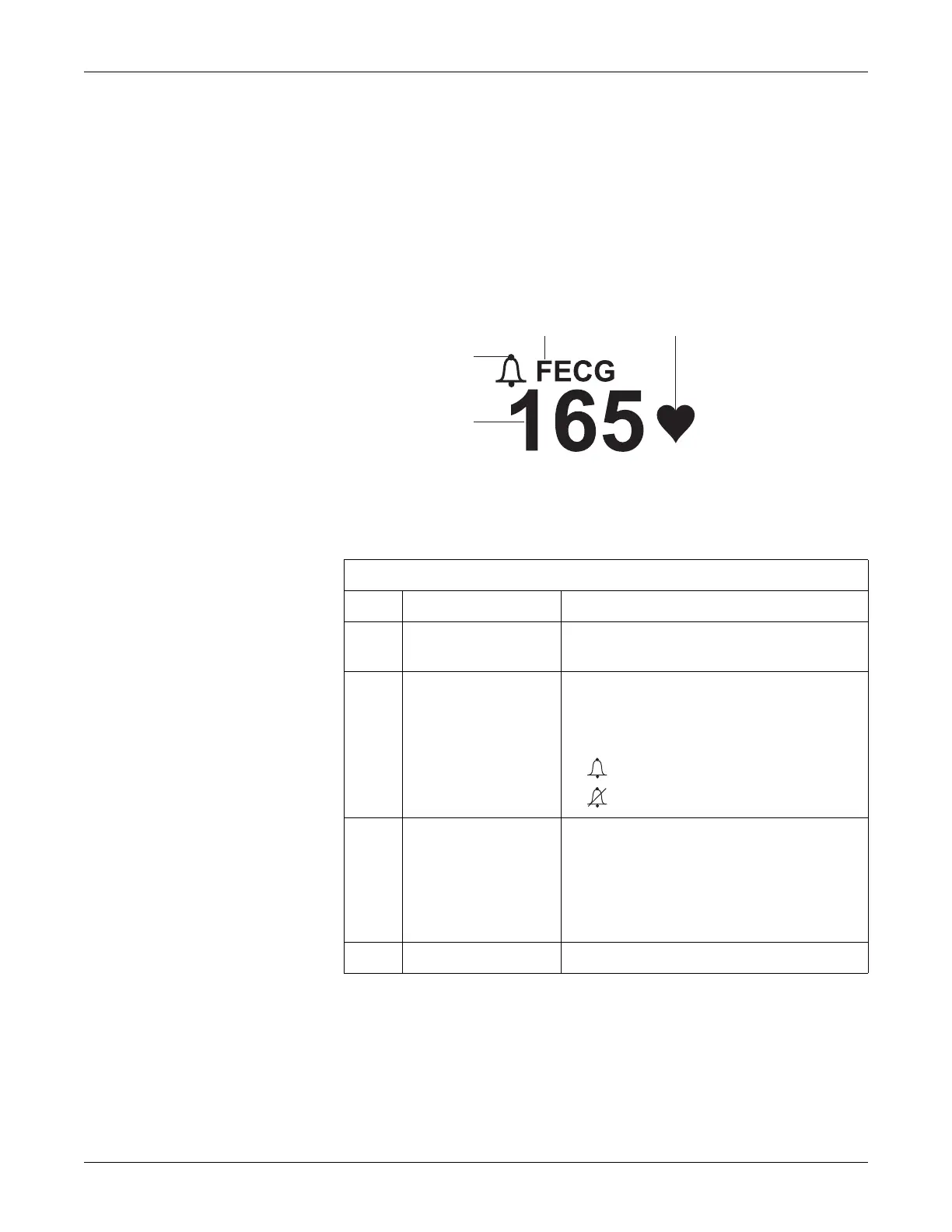

The FHR1 and FHR 2 areas are summarized in the following figure and table.
FHR Display
FHR Display
Name Description
A
FHR Value Up to three digits indicate the fetal heart rate in
beats per minute.
B
FHR Alarm Setting
Indicator
This symbol provides information about the FHR
audio alarm and the FHR high/low alarm limit
settings. See Chapter 10, “Alarms” for more
information.
: All alarm settings are enabled.
At least one fetal alarm is disabled.
C
FHR Mode Title An abbreviation indicates the monitoring mode in
use: FECG, US, US2, or INOP. (FECG only
displays in the FHR1 area.) Select the mode
softkey to access the respective setup screen. See
“Connectors vs. Display Modes” Table below for
FHR connection options.
D FHR Heartbeat Indicator Flashes with each detected valid heartbeat.
C
D
B
A
