Revision C 250cx Series Maternal/Fetal Monitor 3-3
2036946-001
Controls, Indicators, and Connectors: Front Panel Description
Front Panel Description

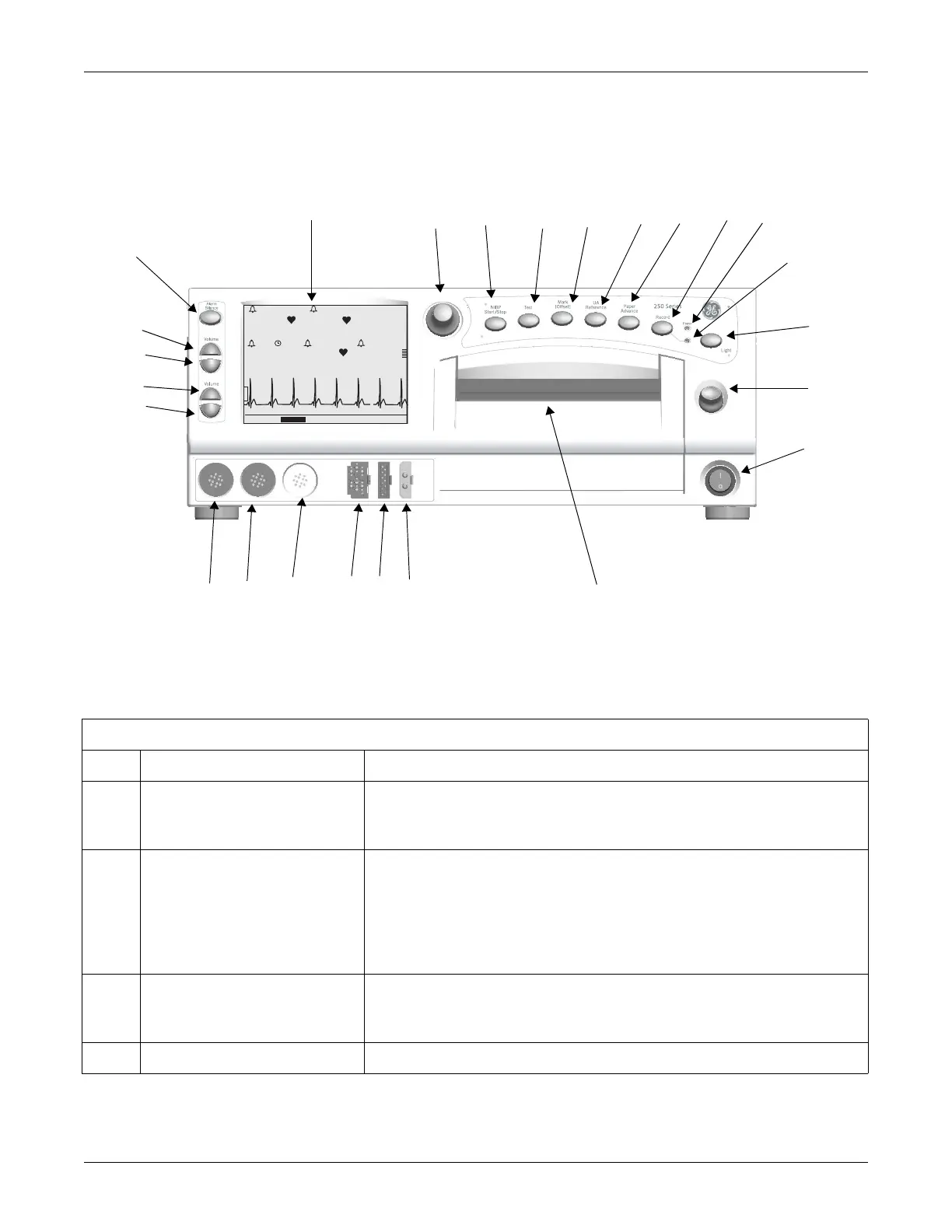

Monitor Front Panel
165
172
30
87
98%
MECG
MSpO2
03:22:45
US2
FECG
TOCO
Print Freeze Alarms Setup VSHX
25 mm/s
II 2x
FECG
HBC
130/ 85
NIBP
MAP (107)
03:15
15:00
FMD
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Front Panel
# Name Description
A Display The monitor’s display is divided into several sections. The content and layout of the
display can change, depending on which functions are installed in the monitor and the
modes of operation in use.
B Trim Knob Control Operation of the monitor is controlled by using the front panel buttons in conjunction
with the Trim Knob control. This control selects softkeys on the display and positions a
cursor within a setup screen. Rotate the Trim Knob control left or right to highlight
items on the screen with a bar cursor. After highlighting the desired item, press the
Trim Knob control to make the selection. In summary: rotate to move cursor; press to
select an item.
C NIBP Start/Stop Button This button starts and stops both manual and automatic blood pressure
determinations. It also provides a “shortcut” for changing the auto interval time
(see 8-12).
D Test Button Pressing and holding this button for 1 second starts or stops a monitor self-test routine.
To Next Page
