Fetal Heart Rate Monitoring: Dual Fetal Heart Rate Monitoring
A right arrow (→) and a vertical dashed line print to draw attention to the start
of the shifted trend.
Refer to “Fetal Heart Rate Offset Example,” on page 5-12 for an example of a
shifted trend.
De-Activating the Fetal Heart Rate Offset Feature
After the FHR patterns have been assessed, set the secondary FHR trend back to the
normal (unshifted) position.
1
1. Ensure the recorder is on.
NOTE: If the auto-revert (10-min)
setting is selected on the password-
protected Install Options screen, the
shifted heart rate trace automatically
reverts to normal after 10 minutes.
2. Press and hold the
Mark [Offset] button for 3 seconds. (Or use the US/US2 Setup
screen.)
The trend returns to the unshifted position.
A left arrow (←) and a vertical dashed line print to draw attention to the
change.
1
Setting the FHR trend to the normal (unshifted) mode does not disable the HR
Offset function; it deactivates it. To disable the mode, refer to the 250cx Series
Service Manual.

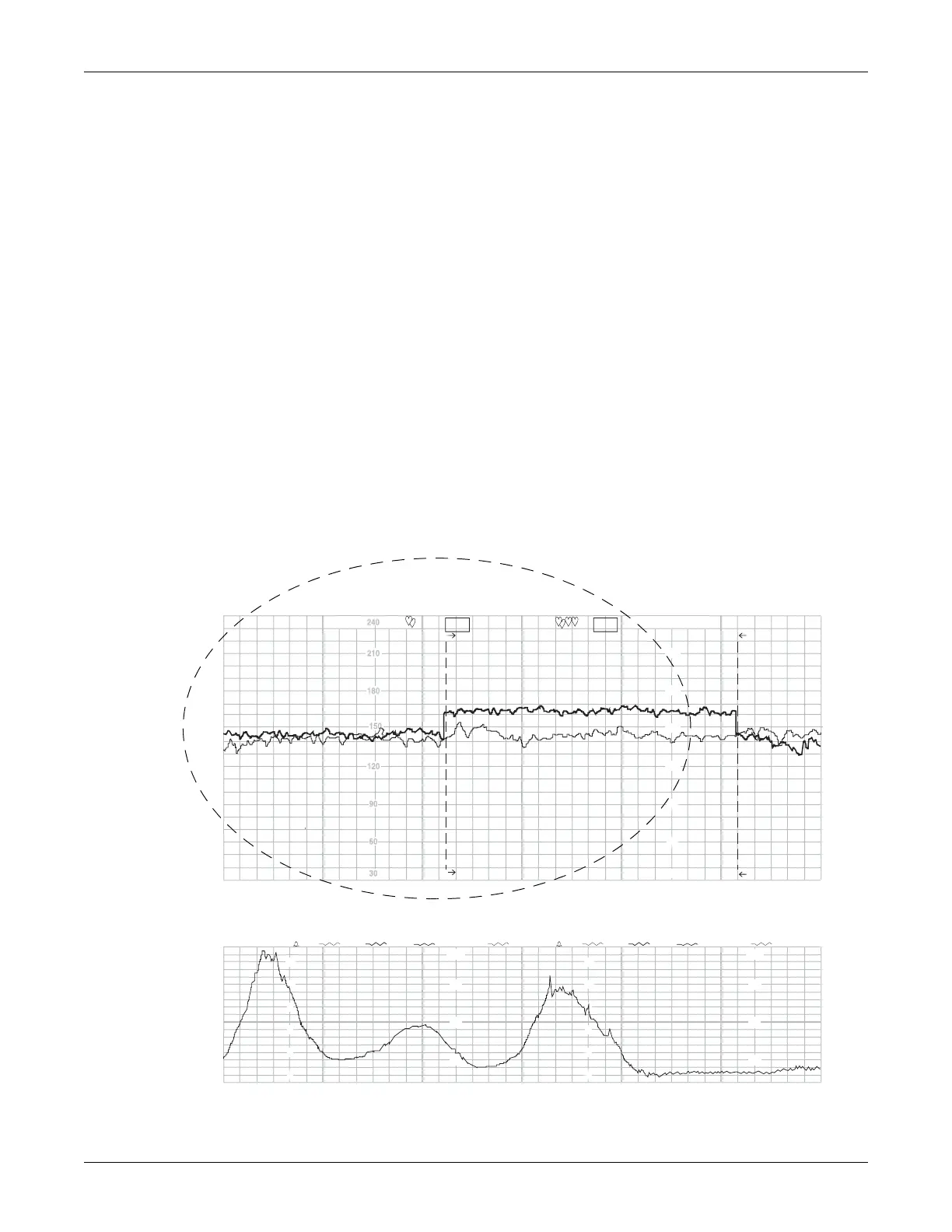

Fetal Heart Rate Offset Example
