2018112-069 Rev. F eBike II, eBike II L, eBike II EL - 61 -

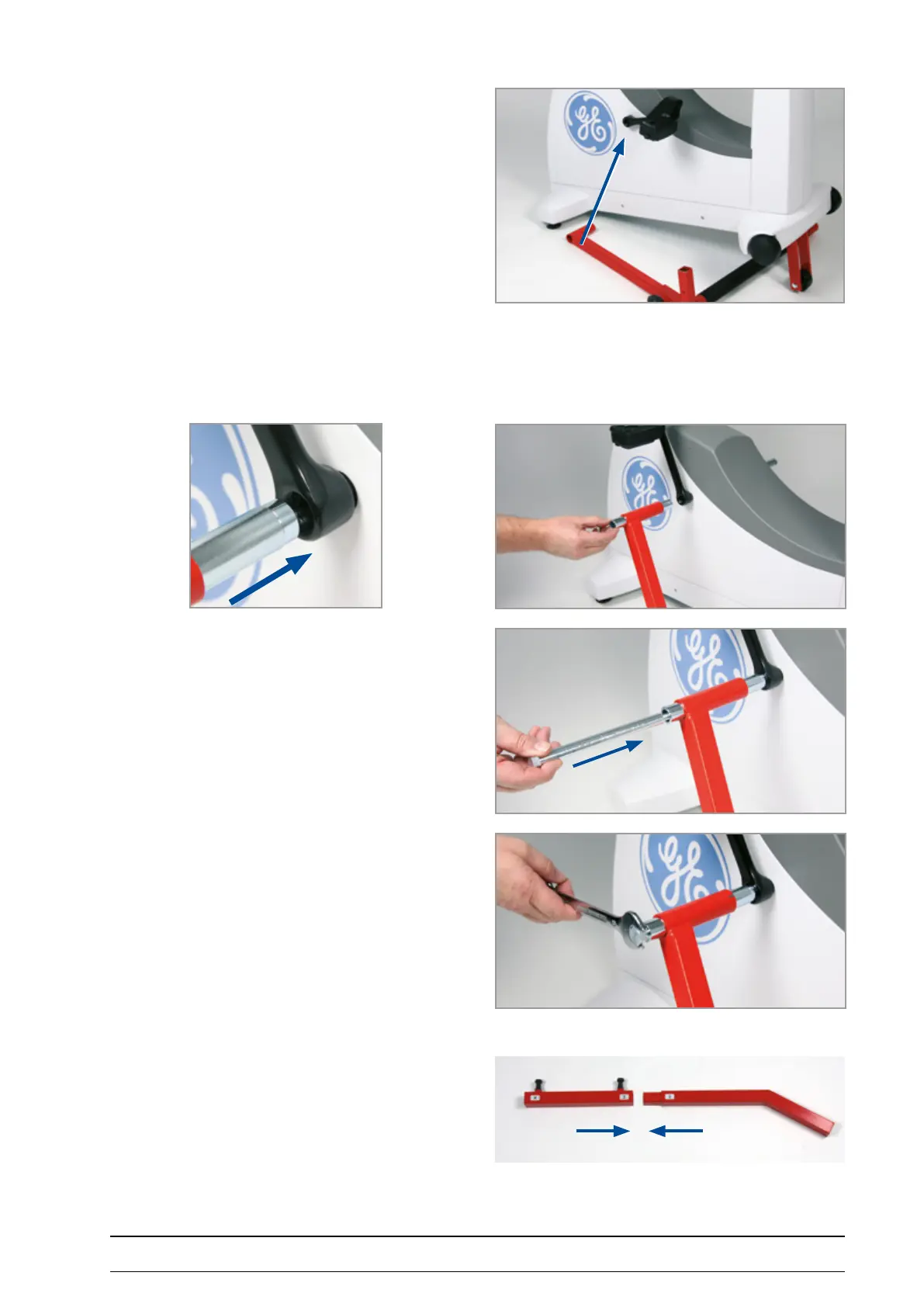

• Lift the side arms of the main support frame and
adjust them before the crank threads
• Pay attention to identic distance between crank thread
and tube on both sides
• Insert the bushings through the frame into the cranks:
- the shoulder have to t completely into the crank
- check for equal distance on both sides
• Insert the long screws with a washer through the
bushings and screw them tight into the cranks
• Mount the lifting arm (marked 3 / 3)
