Section 9-9 - Renewal Parts List For BT04 and BT06 9-49
9-9-15 Options, Peripherals and Cables (cont’d)

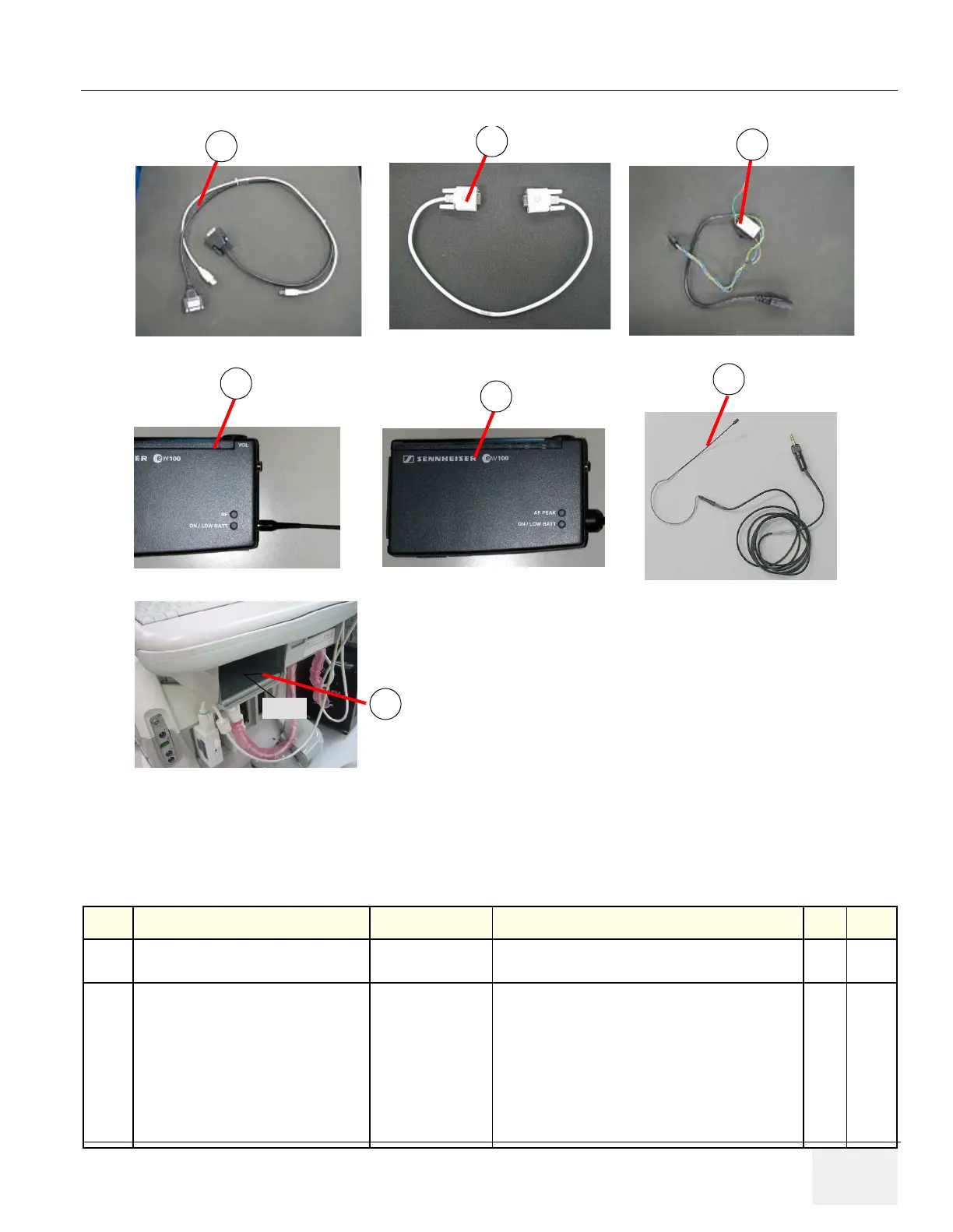

Figure 9-16 Options, Peripherals and Cables 3
Table 9-34 Options, Peripherals and Cables
Item Part Name Part Number Description Qty FRU
- CABLE DUCT ASSY 5117797
Obsolete. Cannot use this part any longer, and the
parts in stock have been purged.
--
750 CABLE DUCT ASSY CSL L7 5117797-2
Including:
USB LAN CABLE ASSY
(CB1.CB2.CB3.CB4.CB6.CB9)
DSUB CABLE ASSY
(CB10.CB13.CB16.CB17.CB22)
DEVIDE CABLE ASSY (CB5.CB15.CB19.CB32)
BW CABLE ASSY (CB7.CB18.CB20.CB31)
AC CABLE ASSY (CB12.CB28.CB33.CB35)
Felite core added for noise reduction
12
4
5
13
6
11
12
25
