Section 9-10 - Renewal Parts List for BT03 or lower 9-73
9-10-8 Circuit Board Assemblies

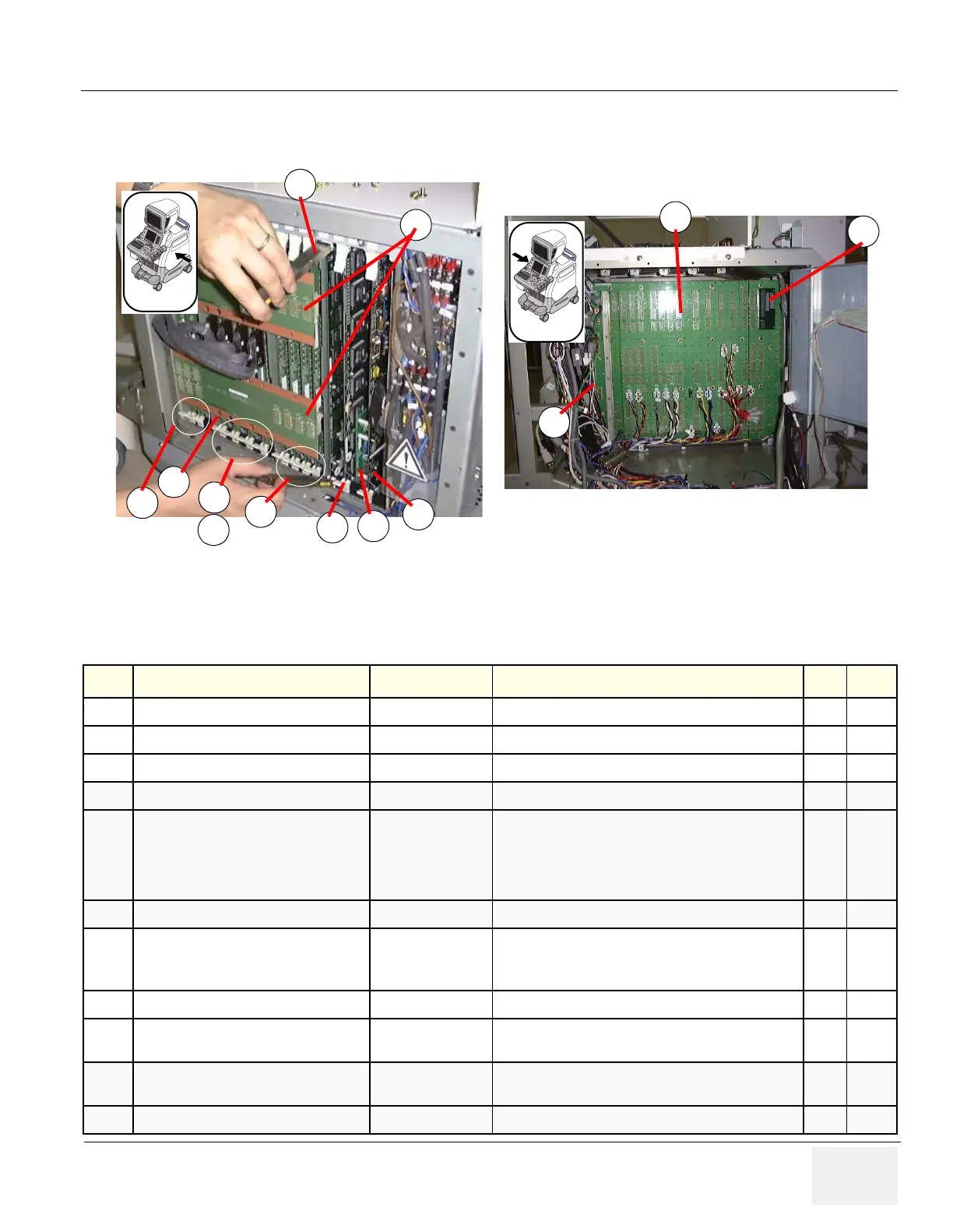

Figure 9-24 Circuit Board Assemblies
Table 9-47 OP Panel and Keys
Item Part Name Part Number Description Qty FRU
501 EBUS ASSY 2271702-2 “-2 or later” board must be used for STCW Option. 2 1
502 MDCON ASSY 2273295 board in nest 1 1
503 TERMINATOR ASSY 2268026 board 1 2
504 PREA ASSY 2264596-2 board in nest, slot 1 - 2 1 1
505 TRAP2 Assy
2323353-4
New TRAP board in nest slot 4- 7. When 2264598
TRAP is discontinued, order this TRAP2 Assy.
However, for the board inserted into Slot 5 only, the
TRAP2 Assy MUST be installed. If it is not, the STCW
option can not be installed later.
1 1
506 TRAPCW ASSY 2323450-4 board in nest, slot 4 - 7 1 1
507 DDBF ASSY 2357804
board in nest, slot 8 - 11
Including DDBF Assy 2264600-4 and “-3” conversion
kit (ROM + “-3” label + instructions)
11
508 SINANO ASSY 2264602-3 board in nest, slot 12 1 1
509 PROMP ASSY 2264604-2
board in nest, slot 13
“-2 or later” must be used for STCW option.
11
510 MDBRG ASSY 2264606-5
board in nest, slot 15
“-5 or later” must be used for 6T probe.
1 1
511 MOTHER ASSY 2264608-3 board 1 1
LEFT
RIGHT
501
502
503
504
505
506
507
508
509
510
511
512
513
