130cm wallstand horizontal
grid
Wallstand 90 degrees 90-190 Horizontal 10:1 70
100cm Table grid Radiographic Table 90-120 Vertical 12:1 70
120cm Table grid Radiographic Table 102-146 Vertical 13:1 70
Portable Detector Grid Digital Detector used as
digital cassette
100-180 Horizontal 6:1
8:1
(optio
nal)
70

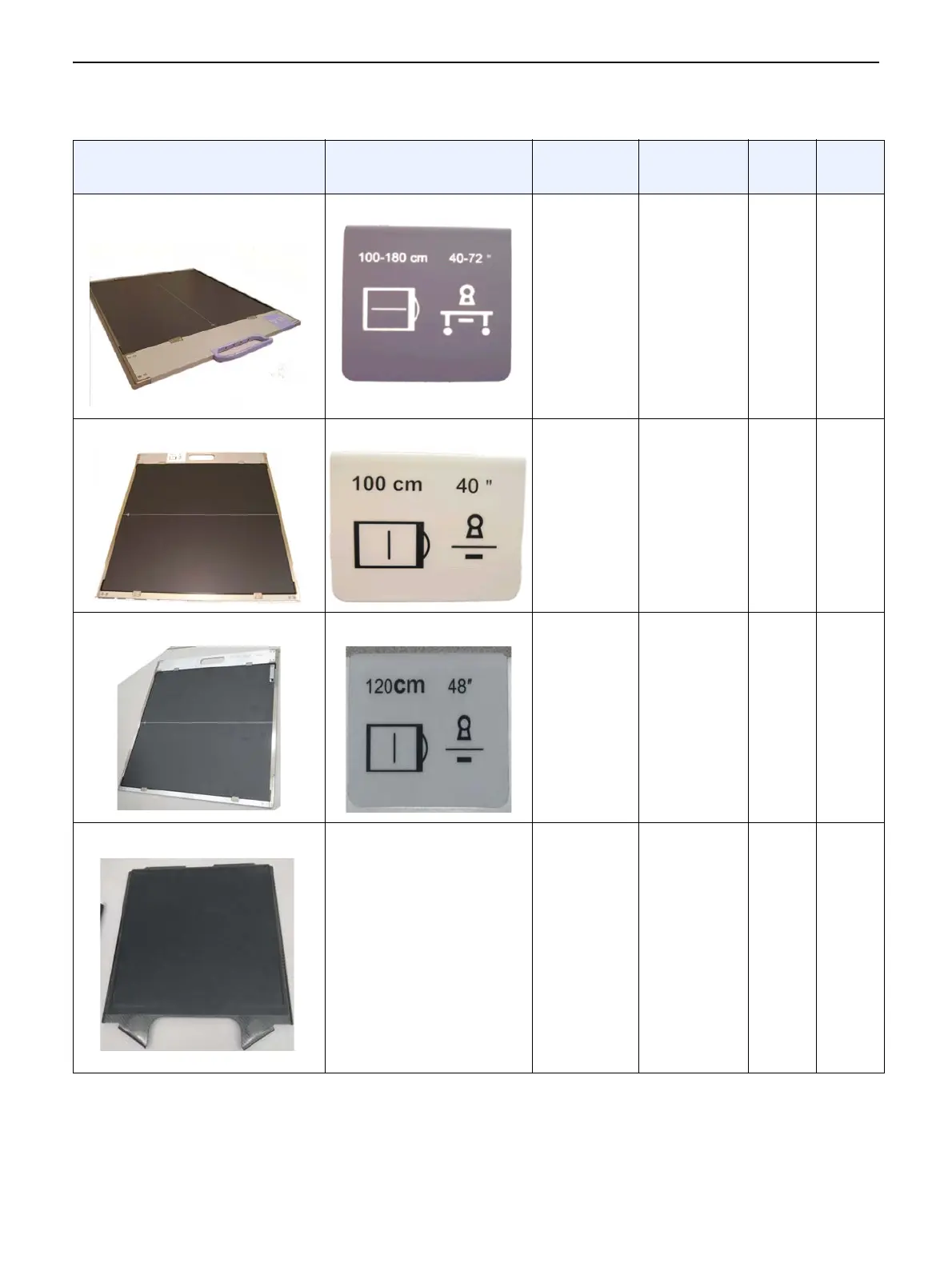

Table 8-15 Grid specifications
Grid Application and Label Range (cm) Orientation Ratio
