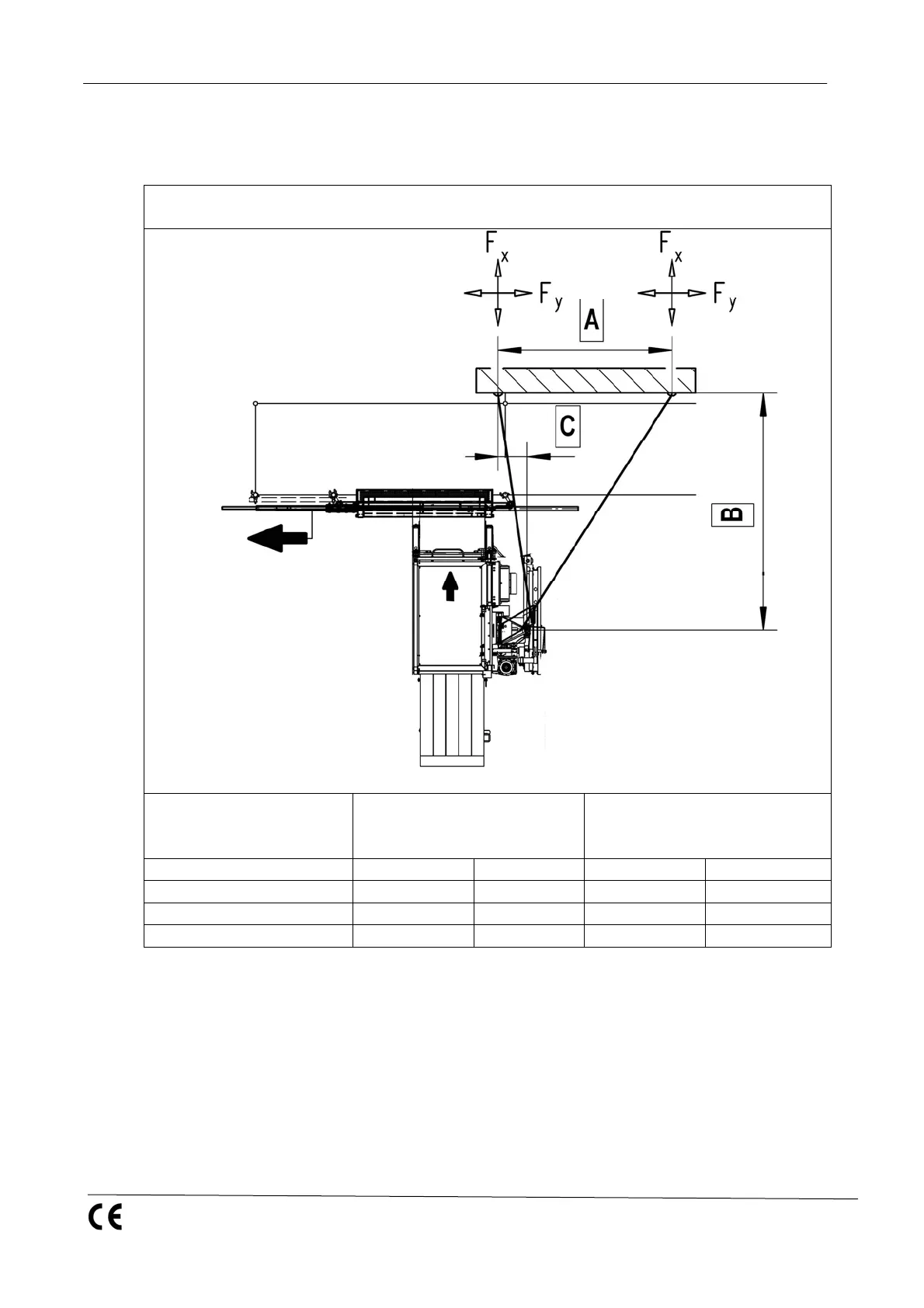

Assembly in front of scaffolding
A = 2.5 m; B = 2.48 m; C = 0.2 m
Top anchor point
(Mast projection 3 m)
Other anchor points
(or top anchor point without
mast projection)
Wind region F
x
F
y
F
x
F
y
A / B / C 5.4 kN 5.7 kN 3.3 kN 3.5 kN
D 6.8 kN 6.8 kN 4.2 kN 4.2 kN
E 8.6 kN 8.6 kN 5.3 kN 5.3 kN
