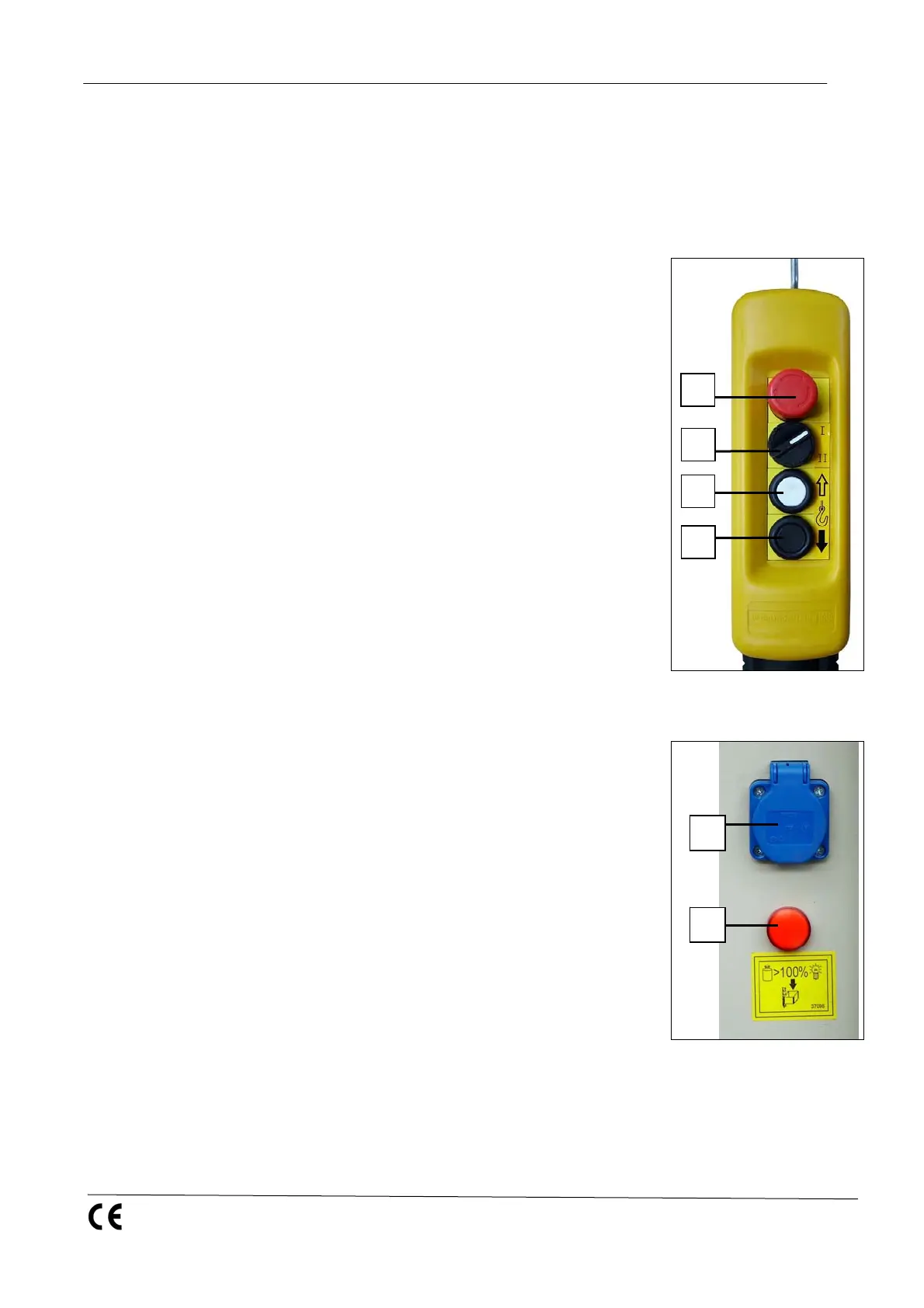

9.3 Manual control
(Use as a construction hoist)
1 = EMERGENCY-STOP
2 = Selector switch MANUAL (I) - AUTOMATIC (II)
3 = UP button
4 = DOWN button
9.4 Overload control lamp and socket outlet
5 = Socket 230 V / 16 A.
6 = Overload control light
