GEDA
®
300 Z / ZP
Page 79 of 101 Rev.: 001
BL 121 EN Translation of the original operating manual 2011 / 05
15.6.3 Using the assembly bridge
The assembly bridge is solely intended for assembling the mast from the car. Prior to us-
ing the car you must make sure that the assembly bridge safety latch has fully engaged
(second tooth).
With the assembly bridge unfolded the car can no longer be moved.
Before assembling a mast fixture you should therefore position the car so that the assem-
bly bridge can still be closed after assembly (1.6 m distance between mast fixture and car
floor).

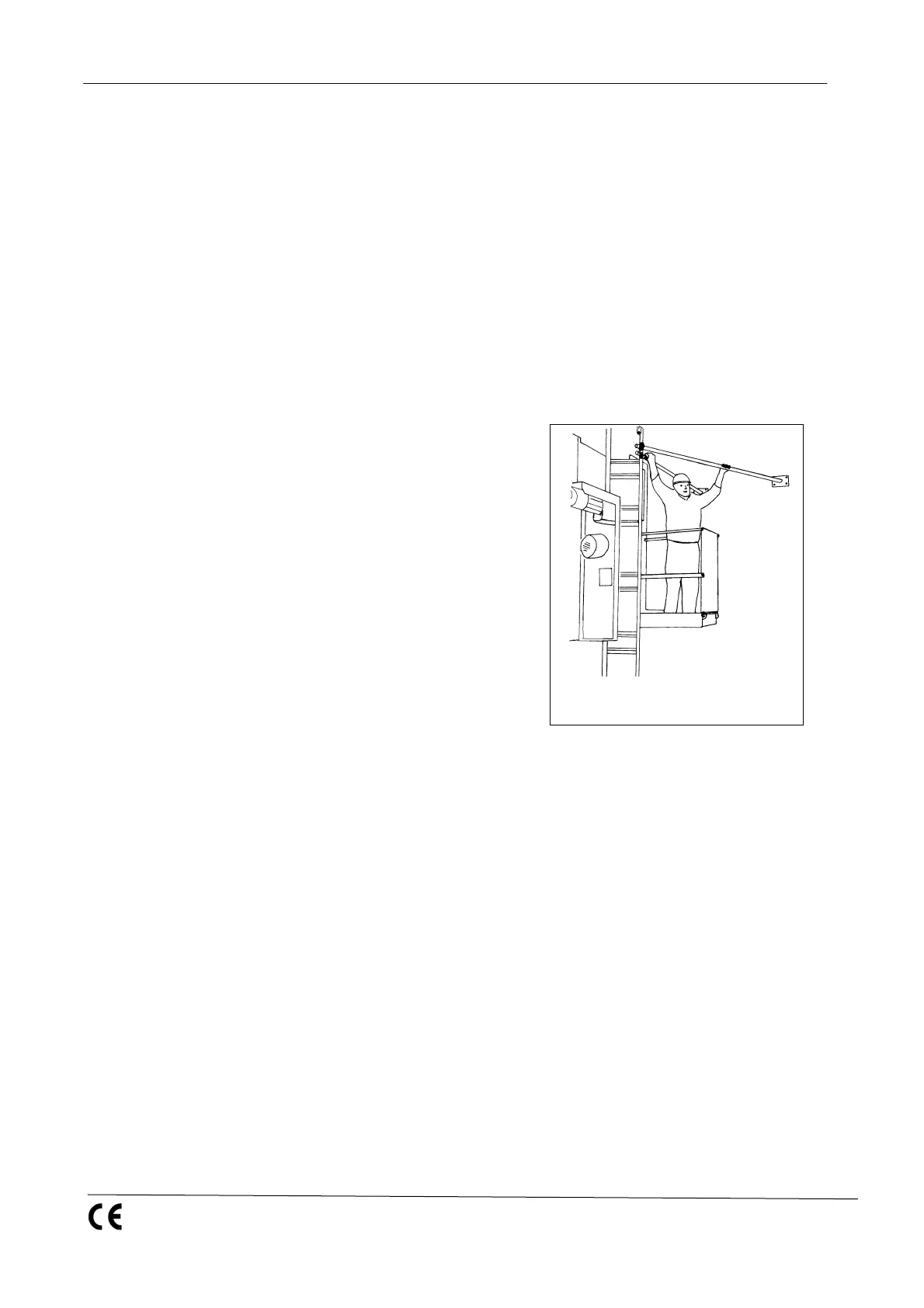

Opening the assembly bridge
Loosen the safety latch, if necessary pull
the assembly bridge slightly inwards by the
grip bar (2).
Unfold the assembly bridge completely us-
ing the bracket (2).
Push the front wall outwards.
Closing the assembly bridge
Pull the front wall inwards by the bracket (2).
Close the assembly bridge completely with the
grip bar (the safety latch engages in the second
tooth).
